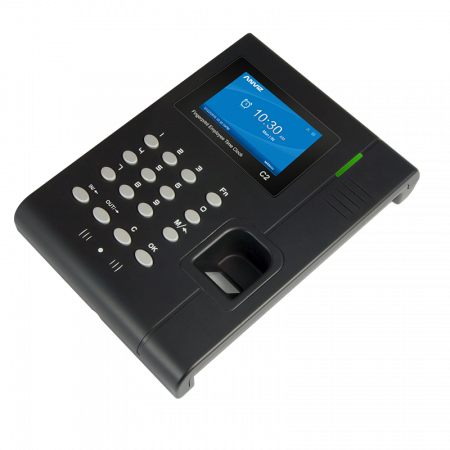

C2

    Color Fingerprint Time Attendance

    C2 is a color fingerprint time attendance system designed for medium to large size businesses. It integrates color LCD, keypad and an optical fingerprint sensor. C2 has an ultra slim design with the thickness of only 3cm, which makes it extremely elegant on the wall. Stylish 3" widescreen High Definition TFT display can show multi-languages for different local markets. Standard with ID, Optional Mifare card reader is specially designed for the existing card users and a higher security level. In addition, with unique Fn button, users will be able to easily manage a complicated custom-defined job code or time attendance status.

    Anviz Fingerprint Sensor

    TCP/IP

    Daylight Saving

    USB Host

    Self-Service Record Inquirty

  • Feature

    > Extremely thin and refined design
    > BioNANO V10 core fingerprint algorithm of high speed and stability
    > New generation fully sealed, waterproof and dustproof AFOS300 fingerprint sensor
    > Fast fingerprint scan in less than 0.5 second
    > 3" widescreen High Definition TFT display
    > User friendly graphic interface
    > Support multiple display and software language
    > Clear voice prompts along with all operations
    > USB Plug & Play connection
    > Easy TCP/IP connectivity
    > Realtime data transfer
    > Optional inbuilt RFID, Mifare reader
    > Various employee authentication methods. Easy combination of fingerprint, password and card
    > 12-digit user ID and user name display
    > 16 different customizable time and attendance status
    > Auto time and attendance status switch
    > 6-digit work code to calculate different job cost
    > Public and private short message display
    > Auto daylight saving
    > Employee self-service record inquiry

  • Parameter

    Algorithm BioNANO V10
    Sensor AFOS300 Optical Sensor
    Scan Area 22mm*18mm
    Resolution 500 DPI
    LCD 3"widescreen High Definition TFT display
    Fingerprint Capacity 3000
    Log Capacity 100000
    Identification Mode FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
    Identification Time <0.5 Sec
    FRR 0.001%
    FAR 0.00001%
    Communication Interface USB Device, USB Host, TCP/IP
    Card Reader Module Optional 125KHZ EM RFID, 13.56MHZ Mifare
    Name Display Yes
    Fingerprint Image Display Yes
    Self-defined Status 16 customizable time and attendance status
    Auto Status Switch Yes
    Workcode 6-Digits
    Short Message 50
    Daylight saving Yes
    Self-service Record Inquiry Yes
    Size 140(w)*190(h)*30(d)mm
    Temperature -10℃~40℃
    Operating Voltage DC 5V
    Certificates FCC, CE
    Applicable Situation Up to 2000 Employees
