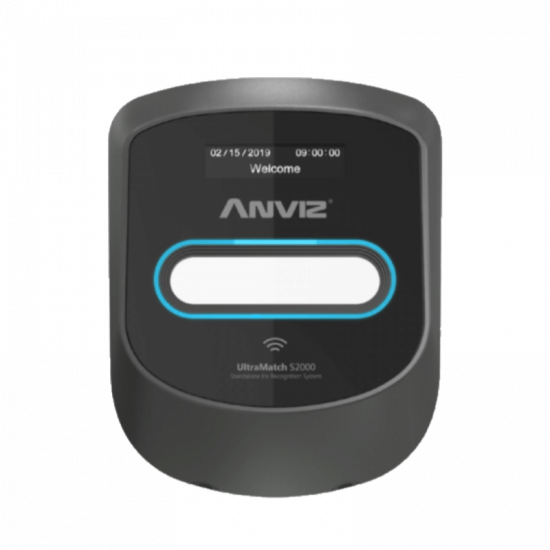

UltraMatch S2000

    Iris Recognition System

    UltraMatch series products own a stylish design and robust performance. Adopting BioNANO algorithm, the system provides the most accurate, stable, and quickest iris recognition while delivering high-level security in biometric enrollment, individual identification, and access control. Containing a complex and random pattern, iris is unique and stable during one’ s life and the least affected by outside. Iris recognition turns to be the most accurate and fastest option to authenticate someone with certainty.

    Iris Recognition

    Webserver

    Wifi

  • Feature

    Unparalleled User Experience
    Visual indication
    > Three color LED indicators prompt the user to place their eyes in proper distance that makes image acquiring easy acceptable and comfortable.

    Fast comparison
    > With BioNANO algorithm, the system identifies people in less than a second, and processes up to 20 people per minute.

    Wide applicability
    > The UltraMatch works in all lighting environments, from bright illumination to total darkness.
    > The system supports all eye colors.
    > The UltraMatch can identify subjects even when they are wearing eyeglasses, most sunglasses, most types of contact lenses, and even face masks.
    > Iris recognition is more suitable than other biometric identification in certain environments. If one has a worn or injured fingerprints or wear gloves, the UltraMatch is better than fingerprint devices.

    High level security
    > Accurate and unforgeable
    > Iris recognition is the most accurate way to identify individuals of all the commonly used biometric technologies. Even twins have completely independent iris textures. Iris patterns are too intricate to duplicate.

    High stability
    > After 12 months of birth, an infant’s iris pattern becomes stable and keeps constant during one’s life. Protected by eyelids, iris patterns are not easily damaged or scratched.

    Non-contact and non-invasive
    > A non-contact and non-invasive capture of one's iris creates the most comfortable and friendly user experience.

  • Parameter

    Capacity

    Model

    S2000

    Number of user

    1,000

    Log Capacity

    100,000
    interface

    Comm.

    TCP/IP, RS485, Wifi

    I/O

    Wiegand 26/34, Anviz-Wiegand Output
    Feature

    Iris Capture

    Dual Iris Capture

    Capture Time

    <1s

    Identification Mode

    Iris, Card

    Image Format

    rogressive Scan

    Web Server

    Support

    Wireless working mode

    Access Point(Only for mobile device management

    Temper Alarm

    Support

    Eye Safety

    ISO/IEC 19794-6(2005&2011) / IEC62471: 22006-07

    Software

    Anviz Crosschex Standard Management Software
    Hardware

    CPU

    Dual Core 1GHz CPUe

    OS

    WinCE / Linux

    Scan Area

    22mm*18mm

    Resolution

    500 DPI

    LCD

    Active Area 2.23 in.(128 x 32 mm)

    Camera

    1.3 Million Pixel Camera

    RFID Crad

    EM ID, Optional HID iClass SE Card

    Dimensions

    7.09 x 5.55 x 2.76 in.(180 x 141 x 70 mm)

    Temperature

    20°C to 60°C

    Humidity

    0% to 90%

    Power

    DC 12V 2A
