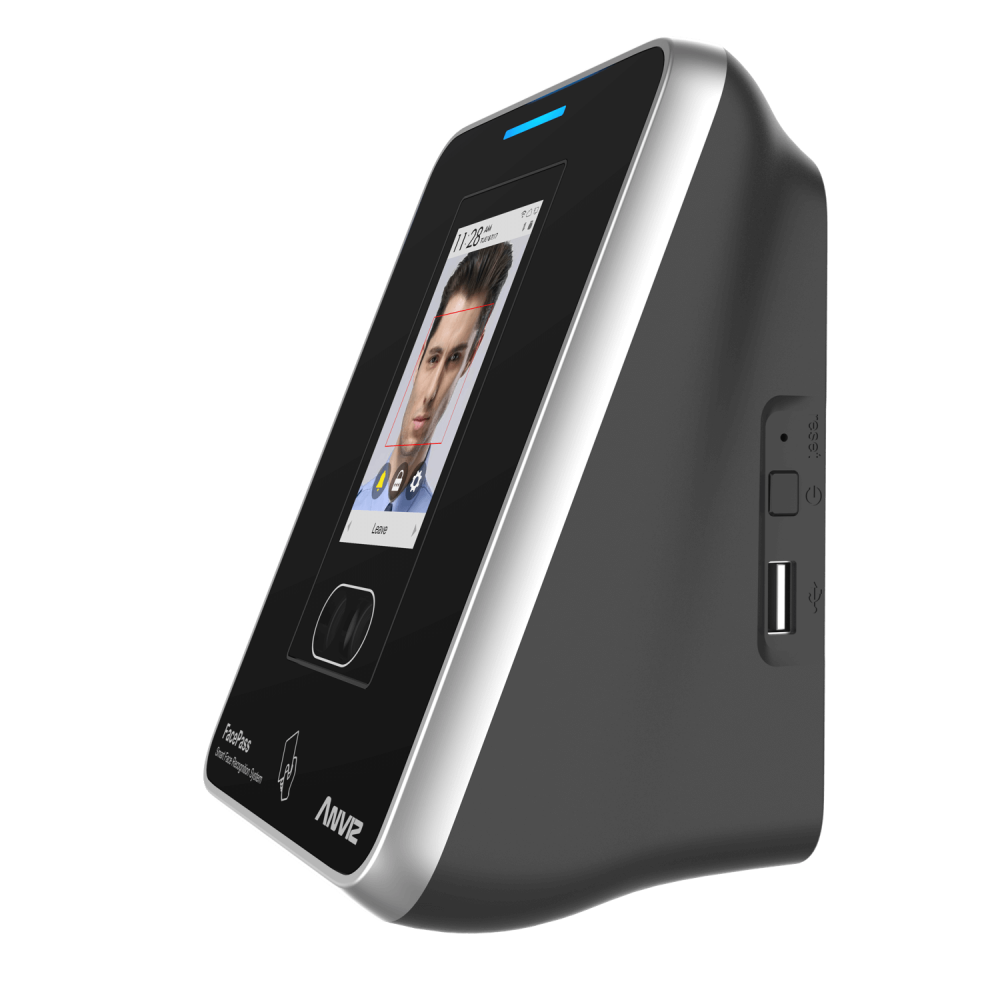

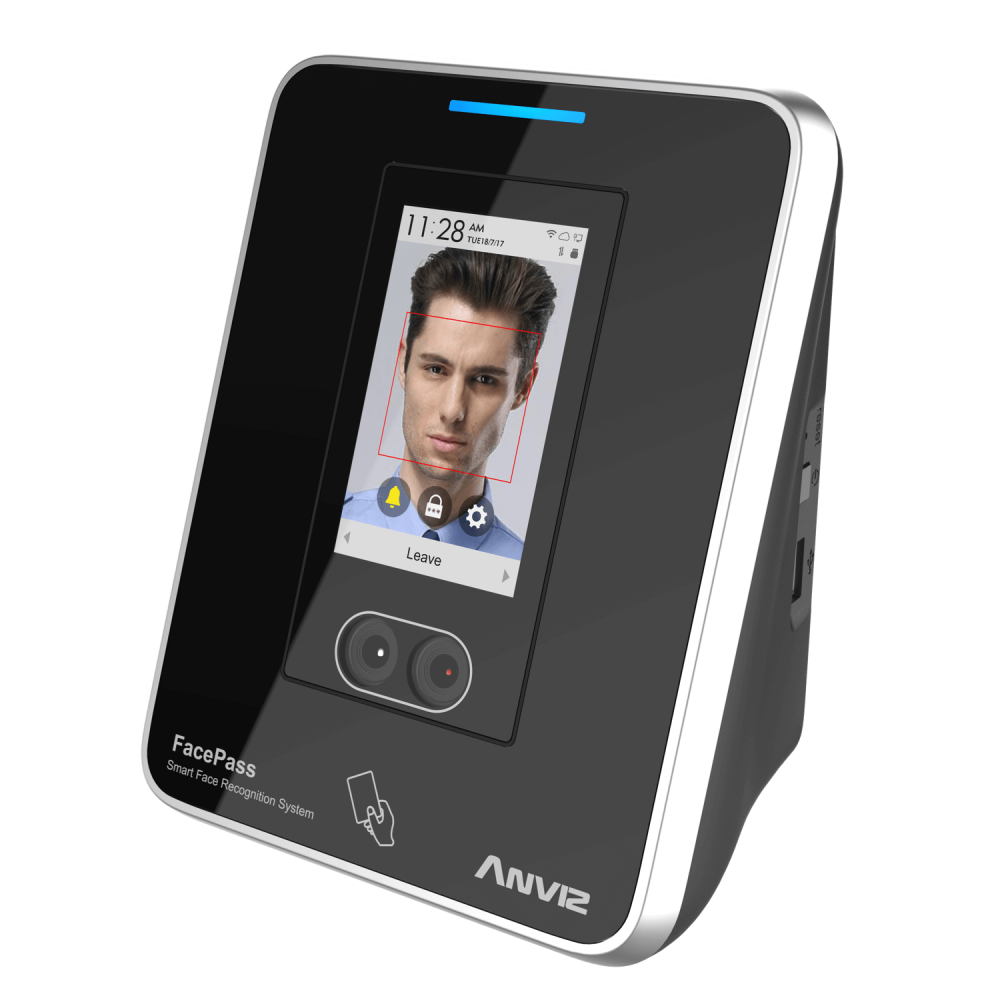

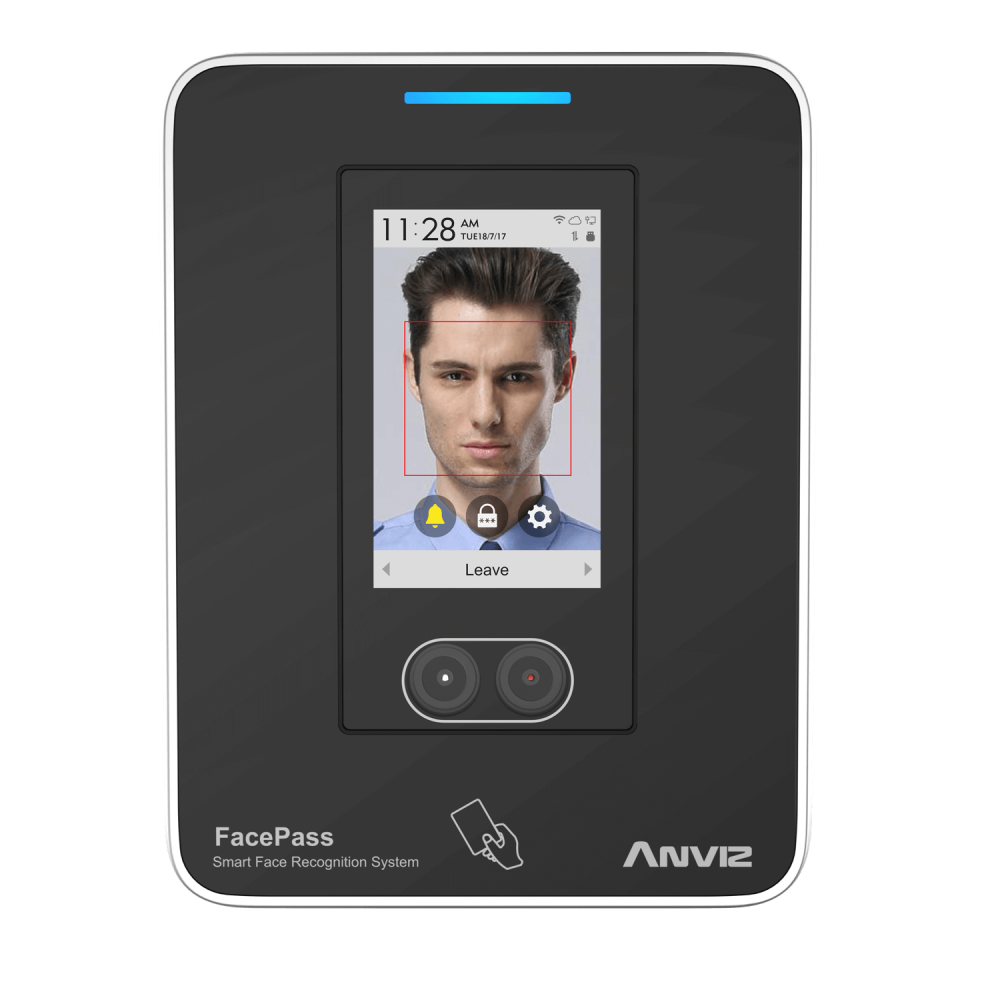

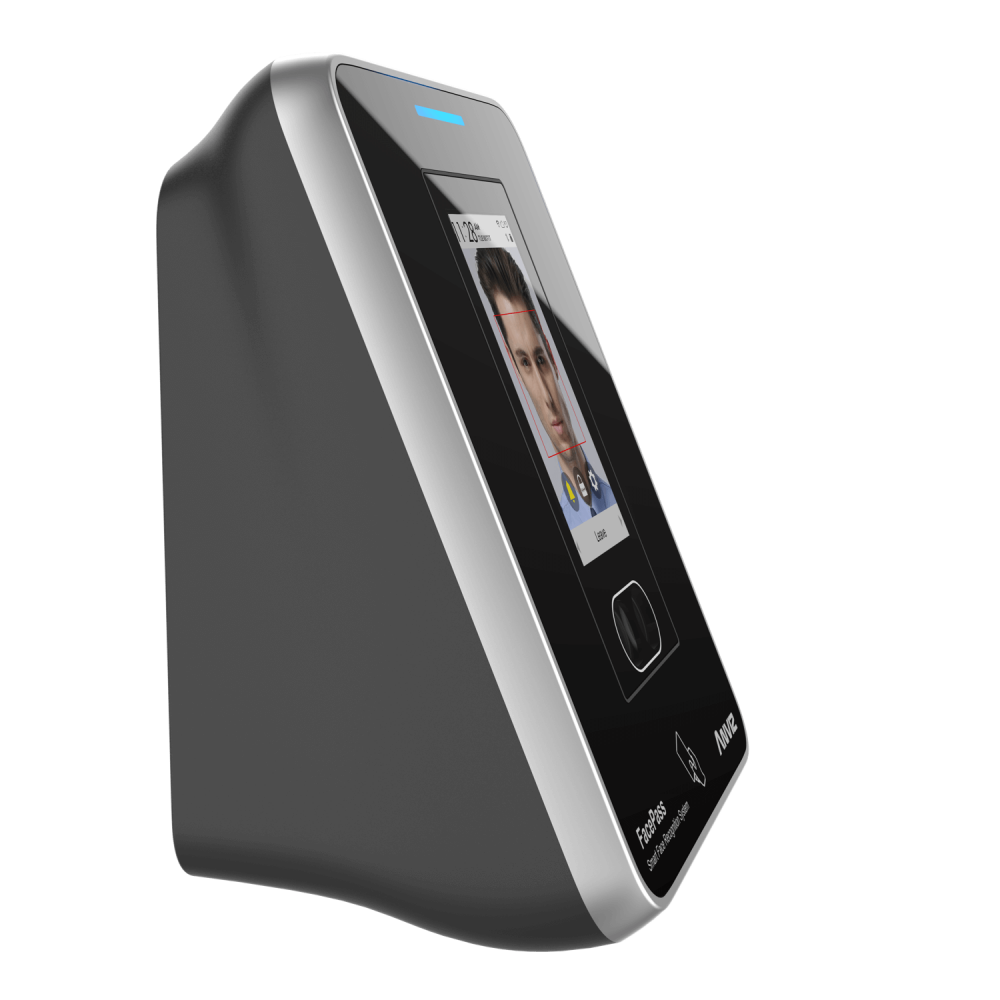

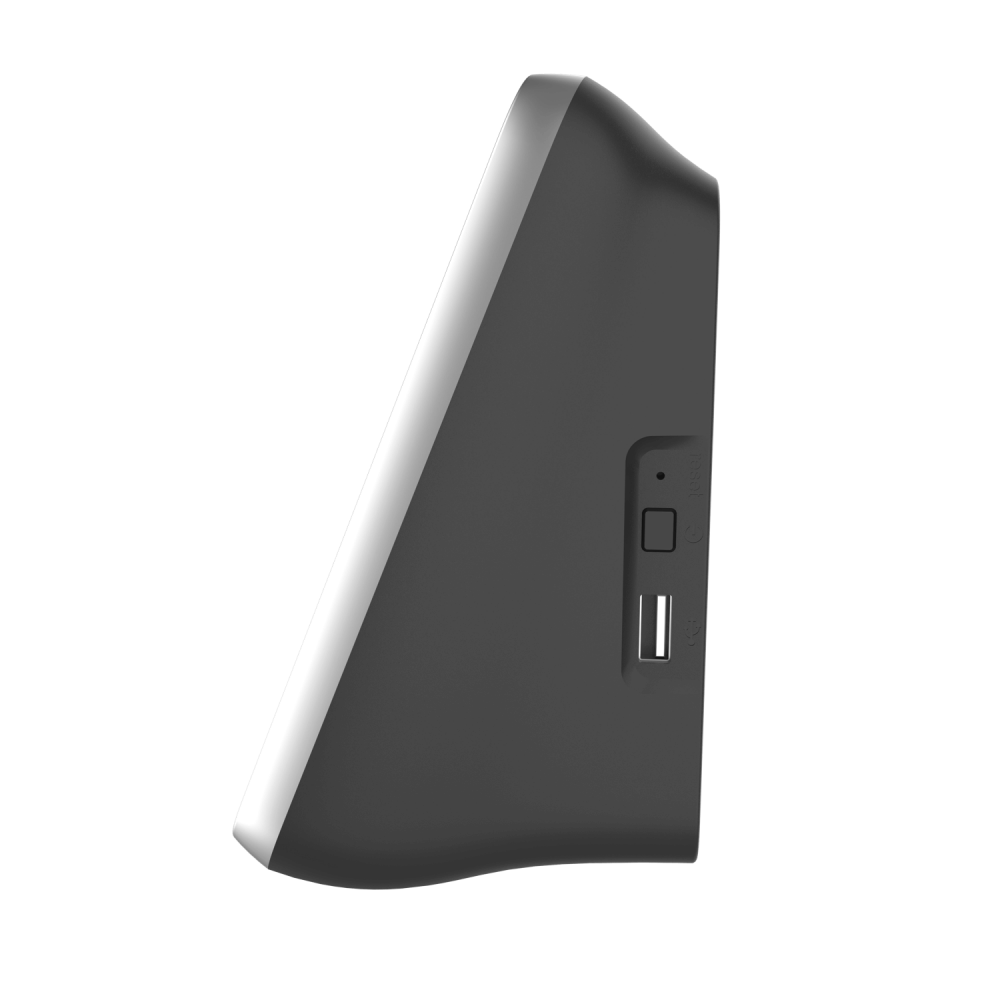

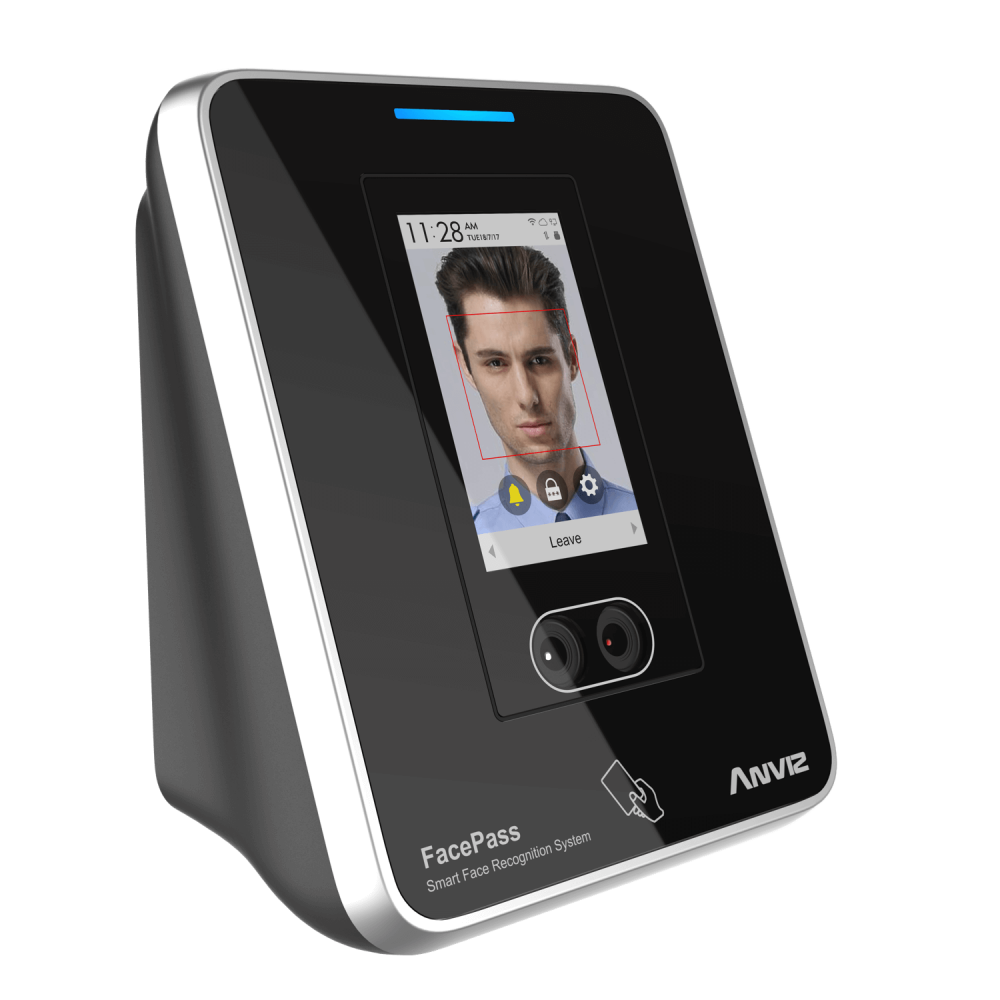

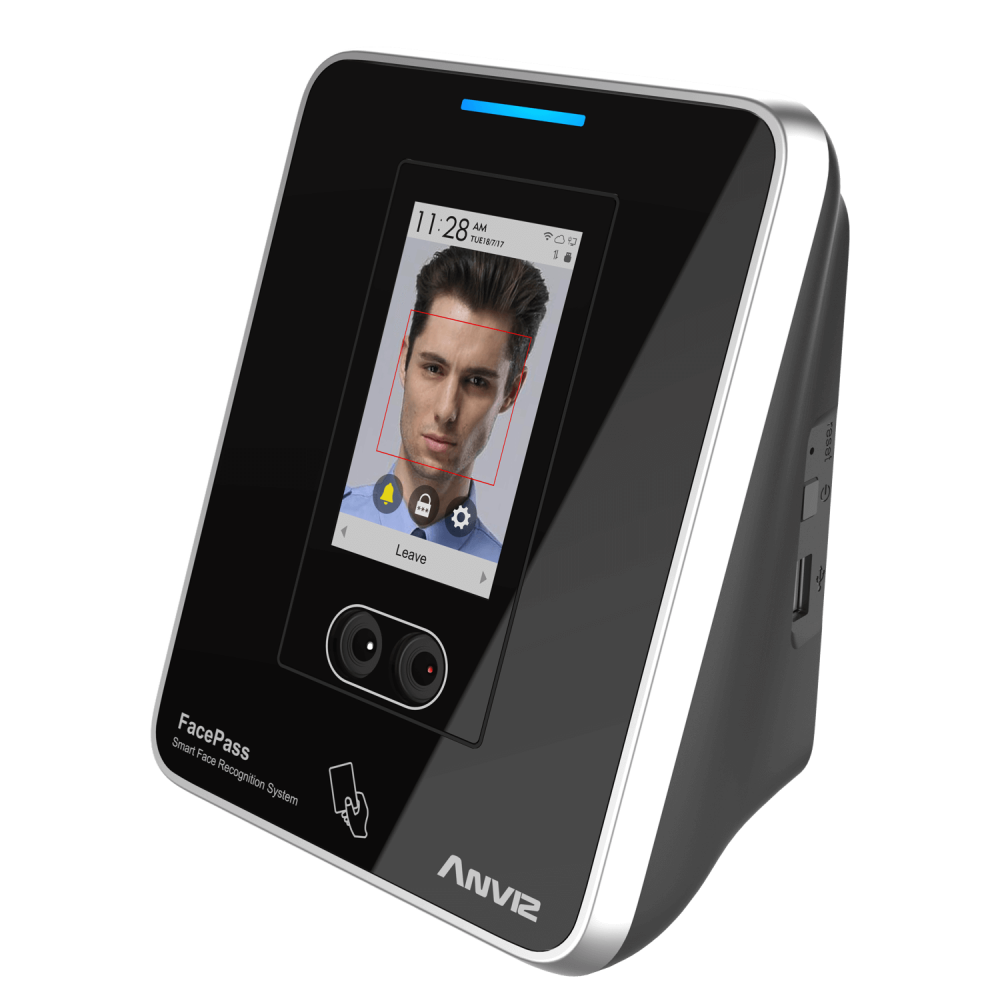

    FacePass 7

    Touchless Smart Face Recognition System

    FacePass 7 flagship face recognition product launched by Anviz, based on new infrared technology design, using the world's leading BioNANO core algorithm,with a powerful processor and hardware computing platform, face detection, identification and event real-time push can be easily implemented. It can realize accurate facial recognition under various environment.





    Now Facepass 7 has been updated by the latest Bionano AI Algorithm and with more flexible applications.



    Learn the new algorithm

    • Webserver
    • ID Card
    • WiFi
    • Wiegand

  • Features

    • Identification Modes: Face, card, password multiple ways to choose, convenient, flexible and safe to use

    •  Attendance Status: User-defined function keys to switch attendance state, meeting multiple identification needs

    • Card: Standard EM, Optional Mifare

    •  Open the Door Remotely: Remote opening through network and software management

    • Security: Security incident monitoring and alarm

    •  Access Control Interface: Support Relay Output, Wiegand26/34 Input and output, magnetic, etc.

    • Infrared Sensing: Infrared sensor activation

    • U Disk Download: Support U disk, user information record backup And firmware upgrade

    • Multi-language: Support Global Multilingual Display

  • Specification

    Capacity
    User Capacity 3,000
    Card Capacity 3,000
    Log Capacity 100,000
    Interface
    Comm. TCP/IP, RS485, USB Host, WiFi
    I/O Relay Output, Wiegand Output, Door Sensor, Switch, Doorbell
    Feature
    Identification Mode Face, Card,ID+Password
    Verify Speed <1s
    Image Display Support
    Self-defined Status 10
    Record self-check Support
    Embedded WebServer Support
    Doorbell Support
    Multi-language support Support
    Software Crosschex Standard
    Hardware
    CPU Dual-core 1.0GHz
    Camera Dual Camera
    LCD 3.2" HD TFT Touch Screen
    LED Indicator Support
    Sound Support
    Angle Range Level:±20°, Vertical:±20°
    Verify Distance 30-80CM
    RFID Card Standard EM, Optional Mifare
    Tamper Alarm Support
    Operating Temperature -20 °C~ 60 °C
    Operating Voltage DC 12V
    Dimensions(W x H x D) 124*155*92mm
    Operating Humidity 0% to 95%

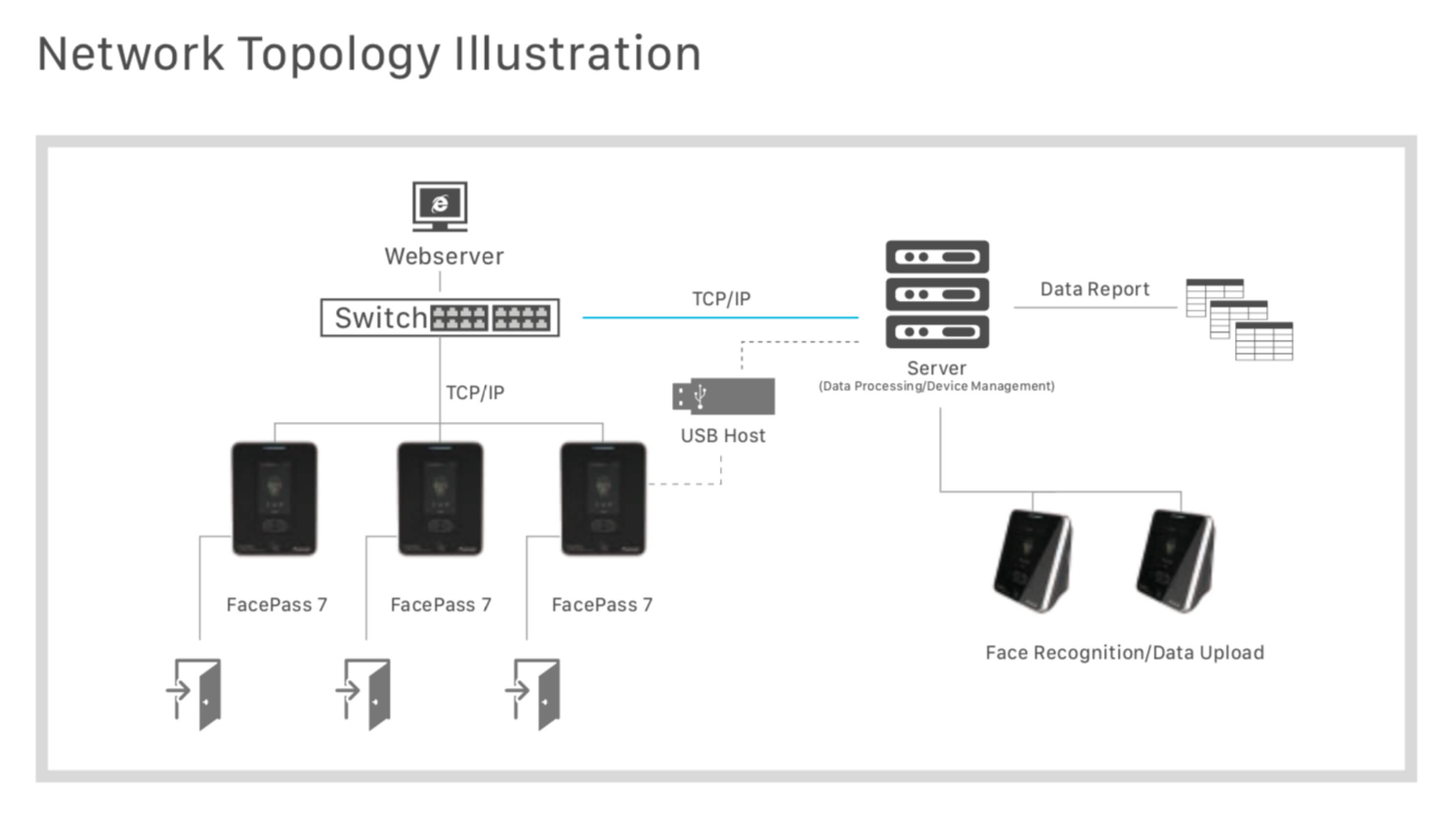

  • Application

  • GET A FREE QUOTE

    We look forward to speaking with you soon!

    • 0   Words

Related Download

Related Faq

  • How to Update Anviz Device (Linux Platform) Firmware? 04/14/2020





    Contents:
    Part 1. Firmware Updates Via Web Server

            1) Normal Update (video)
            2) Forced Update (video)

    Part 2. Firmware Updates Via CrossChex (video)

    Part 3. Firmware Updates Via Flash Drive

            1) Normal Update (video)
            2) Forced Update (video)

    .

    Part 1. Firmware Update Via Web Server


    1) Normal Update

    >> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)

    >> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
    >> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.

    >> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)



    >> Step 5. Choose 'Advance Setting'



    >> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.



    >> Step 7. Update Complete.



    >> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
    2) Forced Update


    >> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.




    >> Step 2. Forced Firmware Upgrade mode is set successfully.



    >> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
    Part 2: How To Update Firmware Via CrossChex


    >> Step 1: Connect the Anviz device to the CrossChex.

    >> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.


    >> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.



    >> Step 4. Choose the firmware that you want to update.



    >> Step 5. Firmware update process.



    >> Step 6. Firmware Update Complete.



    >> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.



    Part 3: How To Update The Anviz Device Via Flash Drive.


    1) Normal update mode


    Recommended Flash Drive Requirement:

         1. Empty Flash Drive, or place firmware files in the Flash Drive root path.

         2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)

         3. Memory Size under 8GB.



    >> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.


    You will see a small Flash Drive icon on the device screen.

    >> Step 2. Login with Admin mode to the device -> and then 'Setting'




    >> Step 3. Click 'Update' -> then 'OK'.



    >> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.



    >> Done




    2) Force update mode



    (****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs.   *****)

    >> Step 1. Follow the Flash Drive Update from step 1 - 2.

    >> Step 2. Click 'Update' to get into the page like showing in the below.



    >> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.


    >> Step 4. Click 'OK', and the device will restart once to complete the update.


    >> Step 5. Update Complete.
  • Reset/Cancel The Admin Permission Guide(Linux Platform) 03/26/2020






    Contents
    Part 1. CrossChex Connection Guide

               1)  Connection Via the TCP/ IP model

           2)  Two ways to remove the admin permission

    Part 2. Reset Anviz Devices Admin Password

               1)  Connected to the CrossChex but the admin password is lost

           2)  The device communication & admin password are lost

           3)  The keypad is locked, and communication and admin password are lost



    Part 1: CrossChex Connection Guide

    Step 1: Connection via the TCP/IP model.  Run the CrossChex, and click the 'Add' button, then the 'Search' button. All available devices will be listed below. Choose the device that you want to connect to the CrossChex and press the 'Add' button.


    Step 2: Test if the device is connected to the CrossChex.

    Click the 'Synchronize time' to test and make sure the device and CrossChex are connected successfully.
    2) Two methods to clear the administrator's permission.

    Step 3.1.1
    Select user/s that you want to cancel administrator permission, and double click the user, then change 'administrator' (the administrator will display in red font) to 'Normal user'.

    CrossChex -> User -> Select one user -> change Administrator -> Normal user





    Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.


    Step 3.1.2

    Click 'Set Privilege', and choose the group, then click the 'OK' button.






    Step 3.2.1: Back up the users and records.







    Step 3.2.2: Initialize the Anviz Device (********Warning! All Data Will Be Removed! **********)

    Click 'Device Parameter' then 'Initialize the device, and click 'OK'




    Part 2: Reset Aniviz devices admin password


    Situation 1: Anviz device is connected to the CrossChex but the admin password is forgotten.

    CrossChex -> Device -> Device Parameter -> Management password -> OK



    Situation 2: The device's communication & admin password are unknown


    Input '000015' and press 'OK'. A few random numbers will pop up on the screen. For security reasons, please send those numbers and the device serial number to the Anviz support team (support@anviz.com). We will provide technical support after receiving the numbers. (Please DO NOT turn off or restart the device before we provide technical support.)



    Situation 3: The keypad is locked, communication and admin password are lost

    Input 'In' 12345 'Out' and press 'OK'. It will unlock the keypad. Then follow the steps as Situation 2.
