UltraMatch S2000
Iris Recognition Terminal
Anviz Launched Touchless Recognition Access Control Terminals to Secure You During COVID-19 Pandemic
Touchless Iris and Face recognition access control terminals reassuring business owners wrestling with the uncertainties of running their businesses during this very challenging time.
In 2020, with the continuous spread of the COVID-19, millions of people have been infected around the globe. During this period, with the increasing demand for touchless devices, as a biometric security industry veteran, Anviz offers you the latest touchless solutions-Iris and Face recognition access control terminals to reassure business owners wrestling with the uncertainties of running their businesses during this very challenging time.
Our Iris (S2000) and FacePass (FacePass 7 Series) recognition terminals provide 100% touchless user authentication for a variety of applications spanning Access Control, Time & Attendance, Visitor Management, etc.
Iris and Face Recognition Terminals
- * Detects if a person requesting access has an acceptable Face mask or glasses.
- * Our face recognition readers having body temperature detection will instantly alert and deny access to anyone trying to enter with body temperature above the acceptable range.
Denying access to anyone with high body temperature prevents from being infected, especially in shipping facilities, airports, schools, commercial office buildings, pharmacies, grocery stores, and so on.
Our Iris and Face recognition terminals are a combination of a very powerful embedded dual core processor and the latest AI deep learning algorithm for high-level accuracy and quick matching-speed.
The capture time of our touchless access control devices is less than 1 second and the matching speed is less than 0.5 second and its body temperature detection is accurate to within +/- 0.3 degrees Fahrenheit when a person stands within 20 inches of its integrated thermal sensor.
Anviz successfully launched 3 models of our touchless access control series.
Touchless Access Control Terminals
- NEW
- HOT

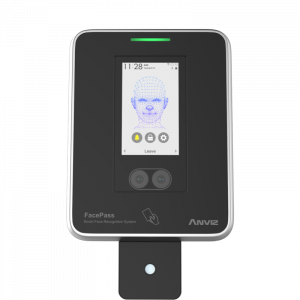

FacePass 7
Smart Face Recognition Terminal
- NEW
- HOT
FacePass 7 IRT
Face Recognition with Thermal Temperature Detection Terminal
Loading...
-
Send Your Inquiry
Fill in the following application form to send your inquiry
Related Faq
-
Contents:
Part 1. Firmware Updates Via Web Server
1) Normal Update (video)
2) Forced Update (video)
Part 2. Firmware Updates Via CrossChex (video)
Part 3. Firmware Updates Via Flash Drive
1) Normal Update (video)
2) Forced Update (video)
.
Part 1. Firmware Update Via Web Server
1) Normal Update
>> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)
>> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
>> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.
>> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)
>> Step 5. Choose 'Advance Setting'
>> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.
>> Step 7. Update Complete.
>> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
2) Forced Update
>> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.
>> Step 2. Forced Firmware Upgrade mode is set successfully.
>> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
Part 2: How To Update Firmware Via CrossChex
>> Step 1: Connect the Anviz device to the CrossChex.
>> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.
>> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.
>> Step 4. Choose the firmware that you want to update.
>> Step 5. Firmware update process.
>> Step 6. Firmware Update Complete.
>> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.
Part 3: How To Update The Anviz Device Via Flash Drive.
1) Normal update mode
Recommended Flash Drive Requirement:
1. Empty Flash Drive, or place firmware files in the Flash Drive root path.
2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)
3. Memory Size under 8GB.>> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.
You will see a small Flash Drive icon on the device screen.
>> Step 2. Login with Admin mode to the device -> and then 'Setting'
>> Step 3. Click 'Update' -> then 'OK'.
>> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.
>> Done
2) Force update mode
(****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs. *****)
>> Step 1. Follow the Flash Drive Update from step 1 - 2.
>> Step 2. Click 'Update' to get into the page like showing in the below.
>> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.
>> Step 4. Click 'OK', and the device will restart once to complete the update.
>> Step 5. Update Complete.
