C2 KA

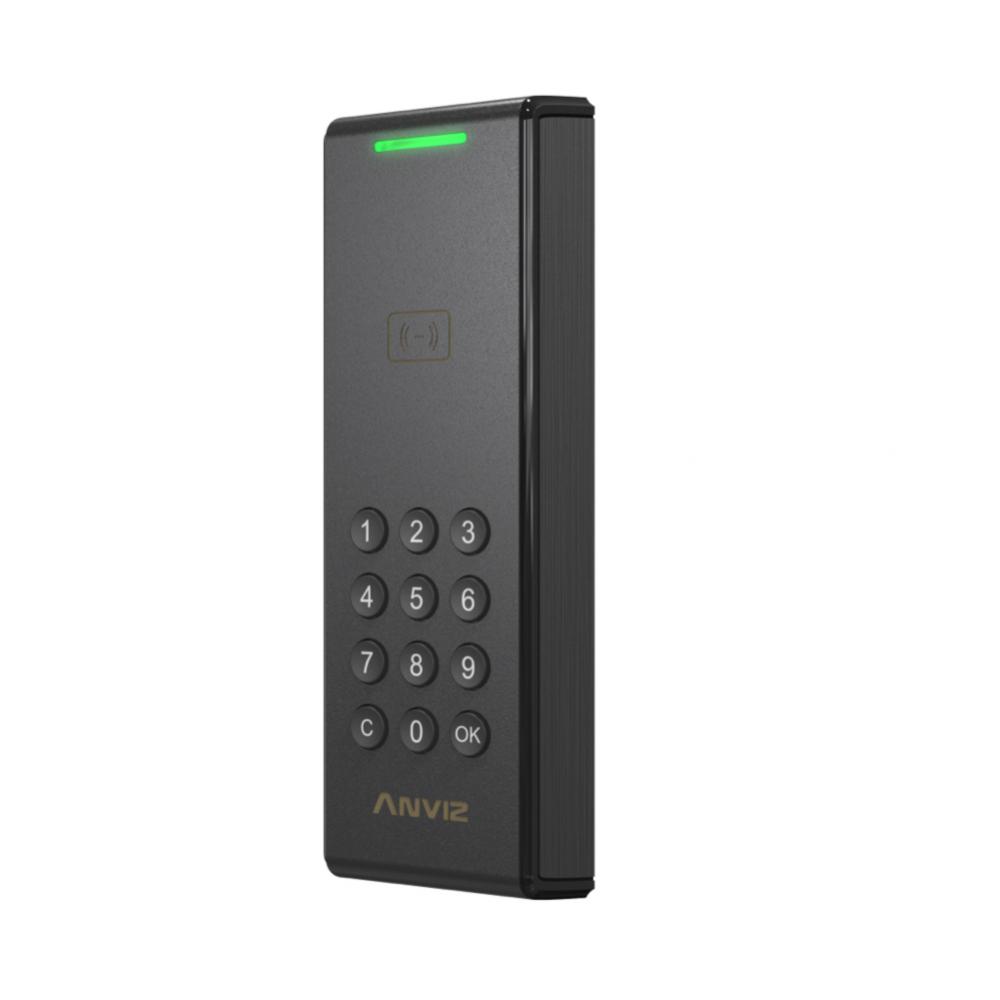

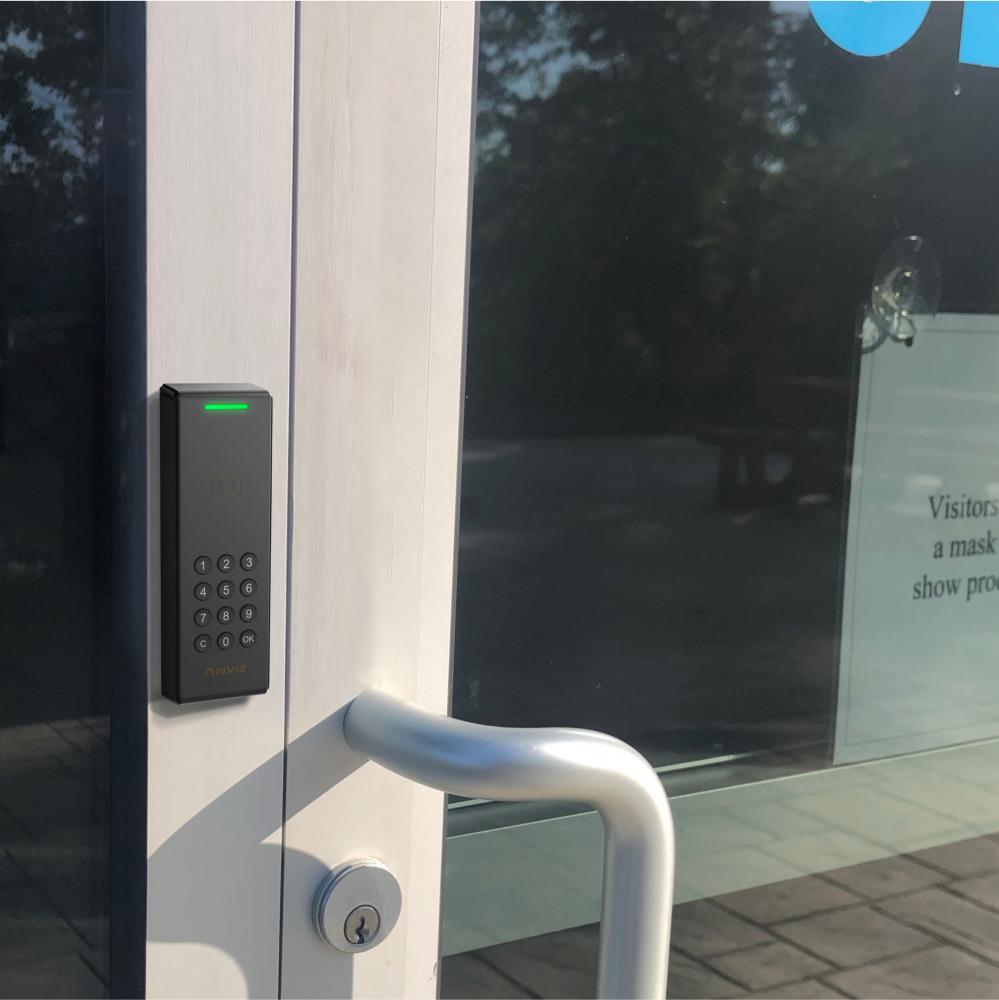

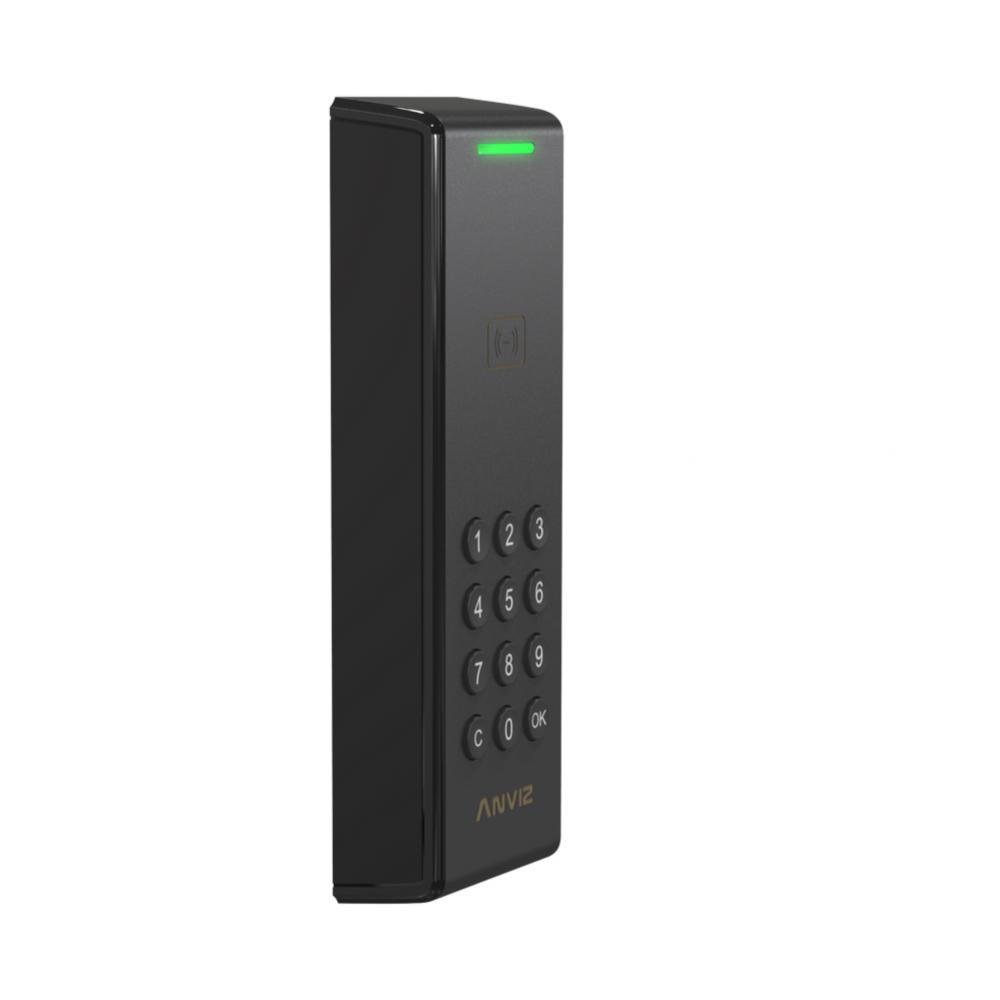

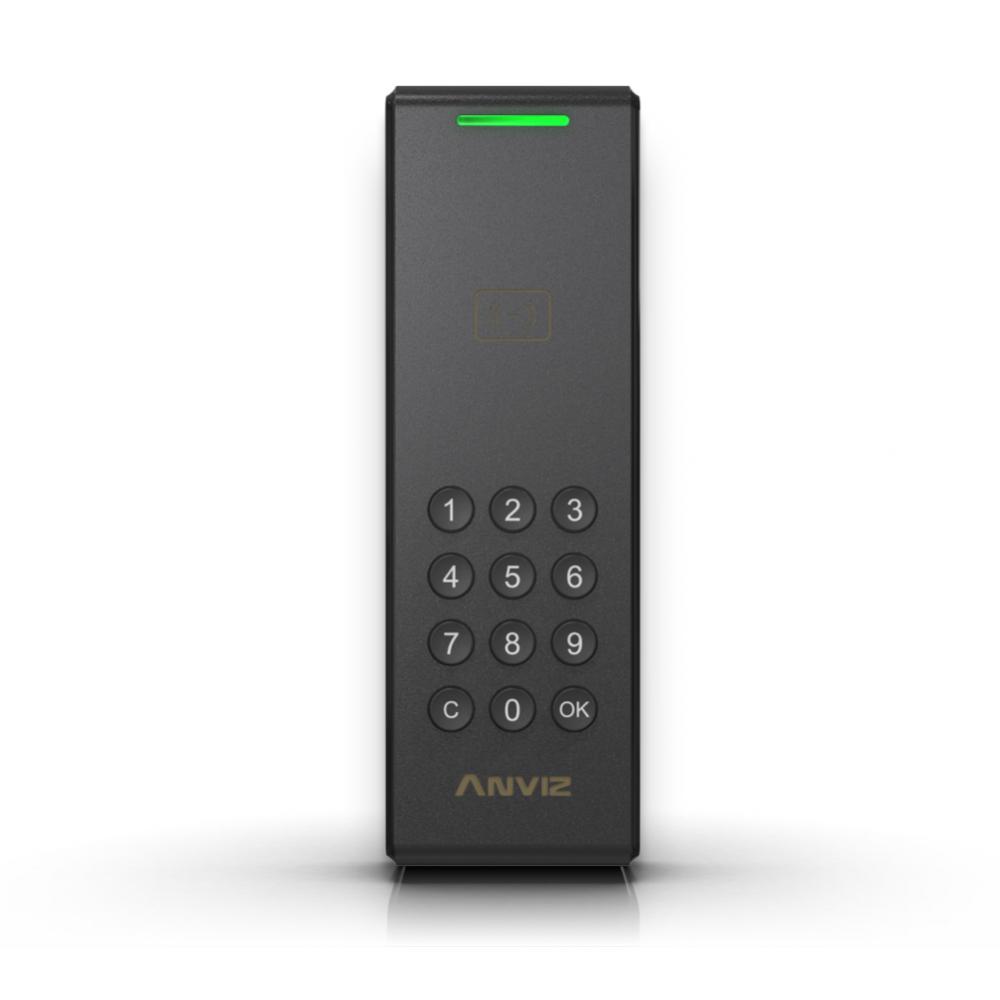

Outdoor RFID Access Control Terminal
Anviz C2 KA is a traditional RIFD access control device. With the creation of C2 KA, Anviz has now one more comprehensive application. Based on high-speed ARM CPU and Linux system platform. C2 KA gives the ability to deliver a fast matching speed and rapid responses while handling large amounts of data. The C2 KA features RS485, Bluetooth, WiFi and IP-based system topology and PoE offers PoE extra flexibility in designing your security system, while reducing cost on installation and maintenance. Featuring IP65 rated protection, the whole C2 KA body has been comprehensively sealed against invasive dust and liquid, ensuring that C2KA will operate with unmatched reliability in all types of conditions and installations.
-
Features
-
Compact form design for easy installation
-

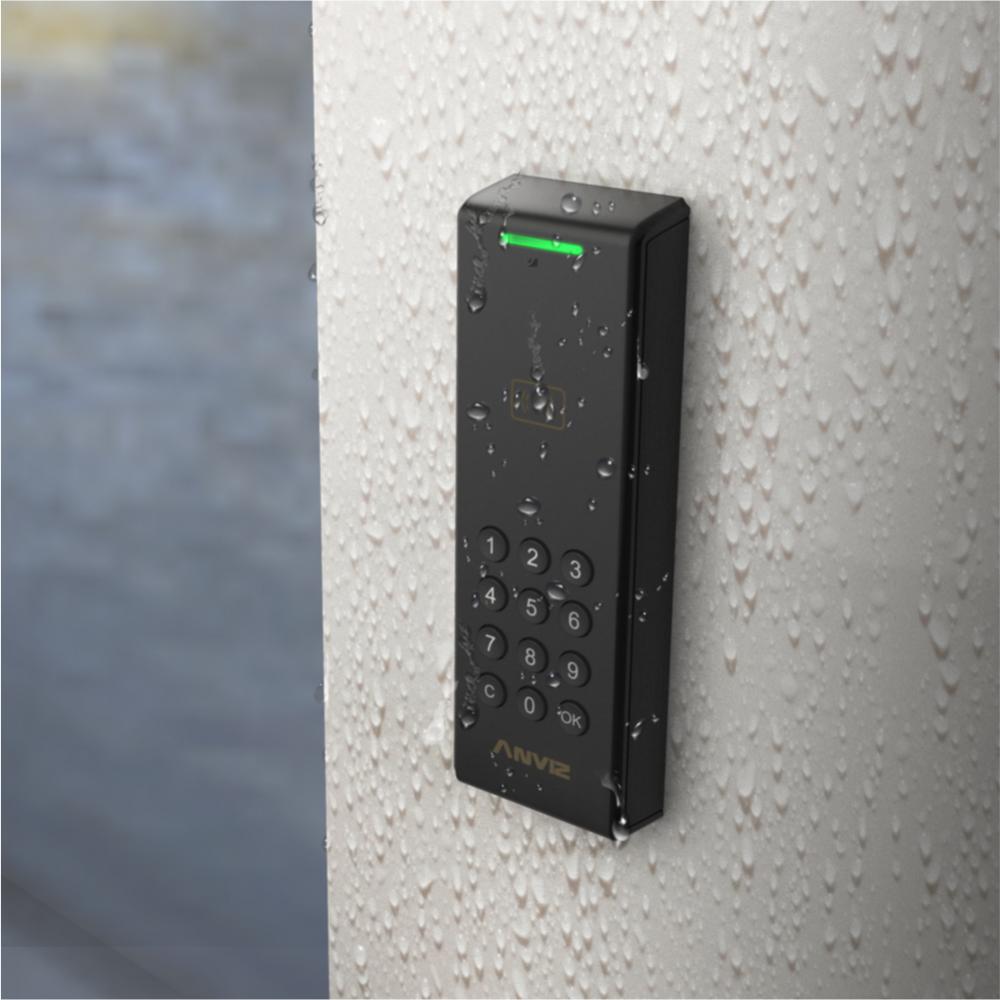

IP65 Waterproof Design
-
IP-based PoE, reducing cost on installation and maintenance.
-

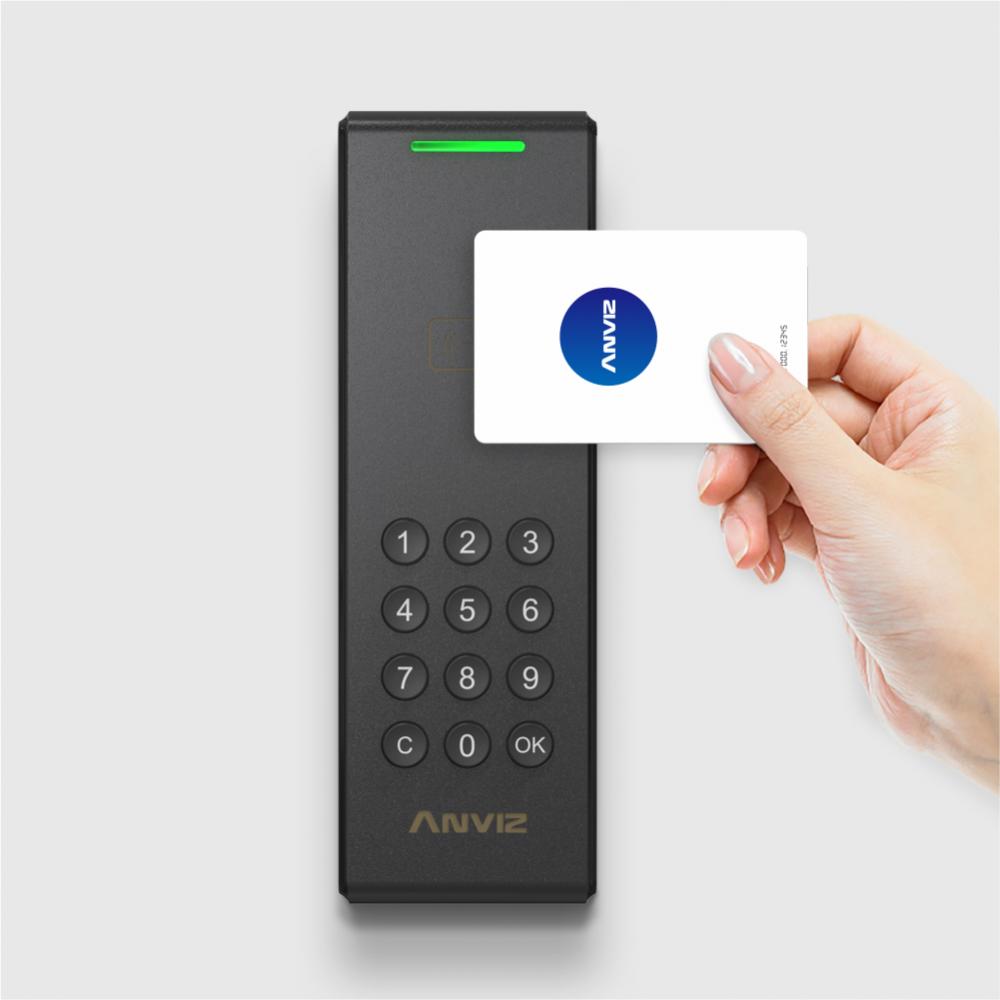

Dual frequency RFID card identification
-
Communications Flexibility (TCP/IP, WiFi, Bluetooth,RS485) appropriate for multiple network deployment
-

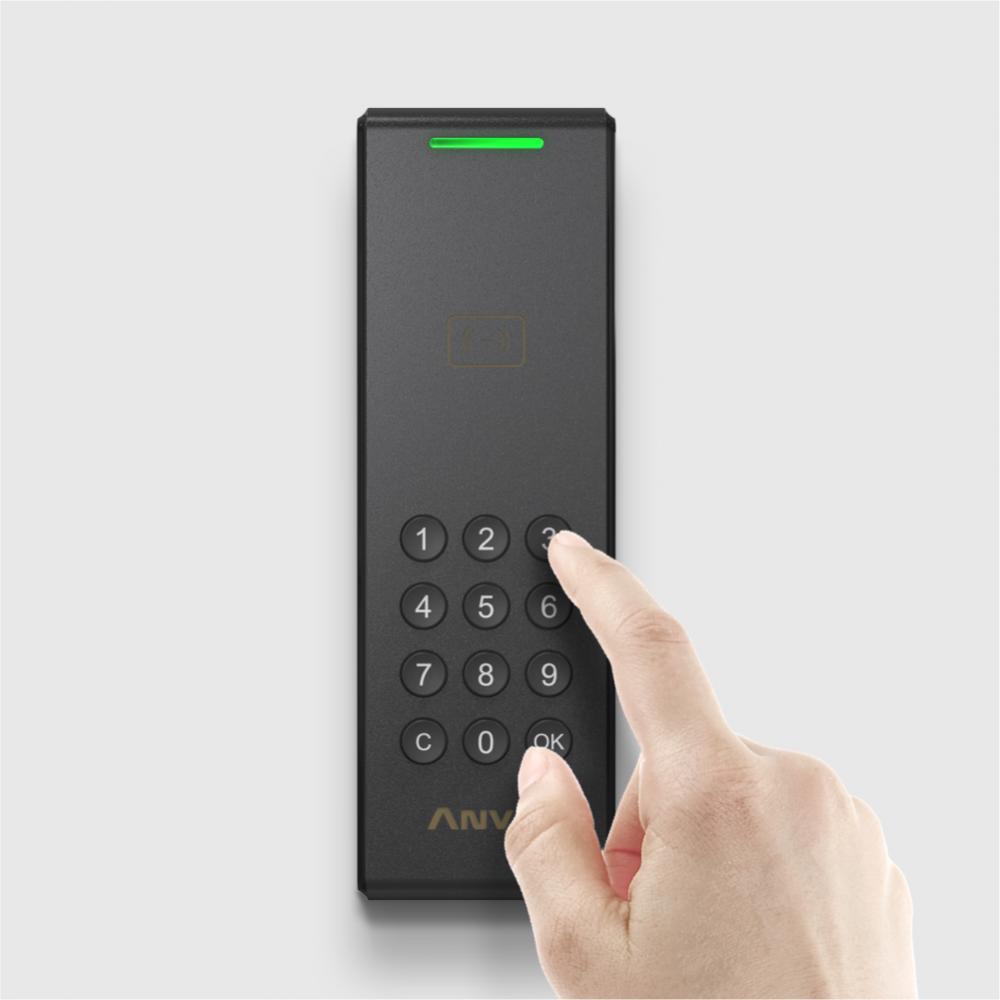

Identification mode: Card, Password and Card+Password
-
Comprehensive access interfaces such as Relay, Exit Button, Wiegand and Door Sensor
-
Let your mobile phone be the key, combining with CrossChex Mobile App by Bluetooth
-
-
Specification
Capacity Card Capacity
10,000
Log Capacity
100,000
Interface Comm.
TCP/IP，WiFi，Bluetooth，RS485
Relay
1 Relay Output
I/O
Wiegand Out&In, Door Sensor, Exit Button
Feature Identification Mode
Card, Password
Identification Time
<0.5s
Webserver
Support
Hardware CPU
Industrial High Speed CPU
Tamper Alarm
Support
RFID Support
Dual Frequency for EM and Mifare PIN
Supported (Keypad 3X4), PIN Code upto 10 digits
PoE
Standard IEEE802.3af Size (W * H * D)
50 x 159 x 20mm (1.97 x 6.26 x 0.98")
Operation Temperature
-10°C~60°C (14°F~140°F)
Operating Voltage
DC 12V & PoE
-
Application
-
Related Download
- Manual 4.9 MB
-
C2 KA User Manual
04/12/2023
4.9 MB
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
