C2 pro CrossChex

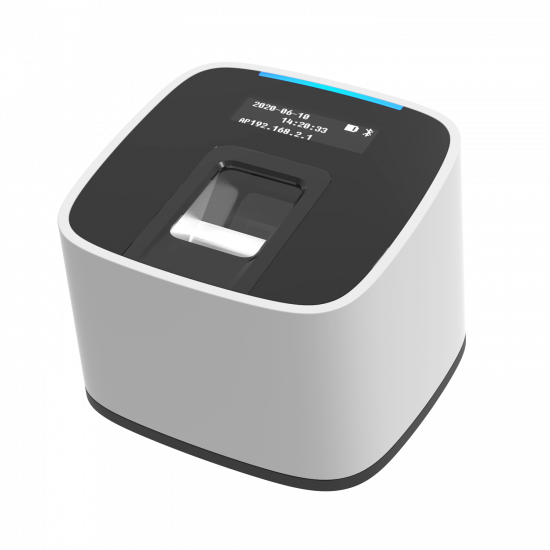

    M-Bio

    Desktop and cloud based wireless fingerprint and RFID time and attendance device

    M-bio is a new generation desktop wireless cloud-based fingerprint and RFID time and attendance device. With fast Linux based 1Ghz CPU, and latest BioNANO fingerprint algorithm, M-bio ensures a less than 0.5 second comparison time under 1:3000 status. The Wi-Fi and Bluetooth function realizes the flexible installation and operation. The Web-server function realizes easily self-management of the device. M-bio also supports management on smartphone by Crosschex Mobile App or by web and cloud-based platforms.
    • Battery
    • Wifi
    • Webserver
    • Bluetooth
    • AFOS
    • Cloud

  • Feature

    • The new Linux based 1Ghz processor ensures the 1:3000 comparison time less than 0.5 seconds.

    • Your mobile device will be the key with Bluetooth function and you can realize management by Crosschex Mobile App by the smartphone.

    • The WiFi function ensures power on to work, and realize the flexible installation of the device.

    • The long-life battery ensuring up to 3t hours portable application.

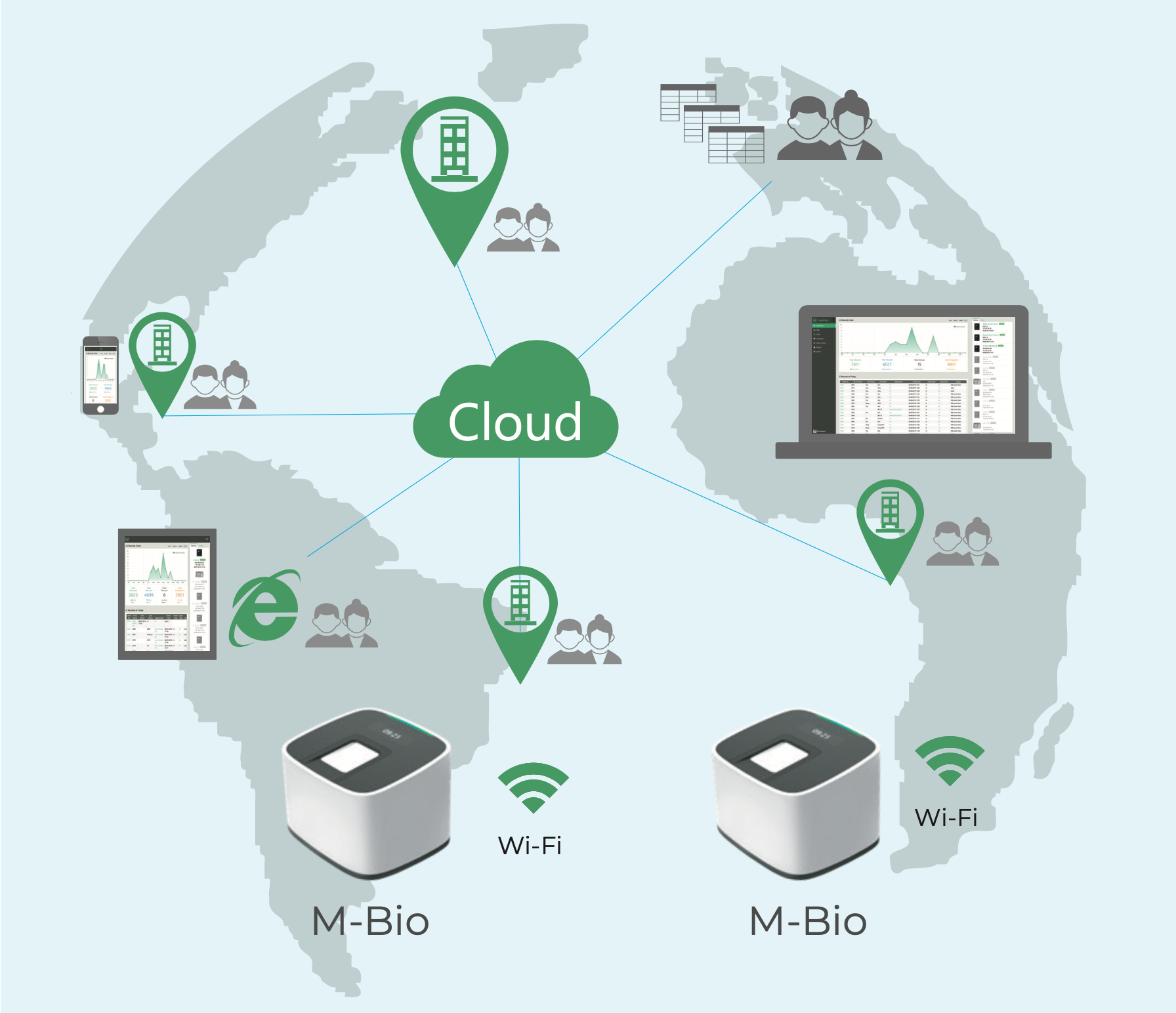

    • The web-based cloud application lets you access to the device by any mobile terminal from any time and anywhere.

    • The Webserver ensures the easy quick connection and self-management of the device.

  • Parameter

    Capacity

    Model

    M-Bio

    User

    		 3,000

    Card

    		 3,000

    Log

    100,000
    Interface

    Comm.

    Micro USB, Wi-Fi, Bluetooth
    Hardware

    CPU

    Linux based 1Ghz CPU

    Webserver

    Support

    RFID Card

    Optional EM and Mifare card

    Power

    DC 5V

    Battery

    300mAh
