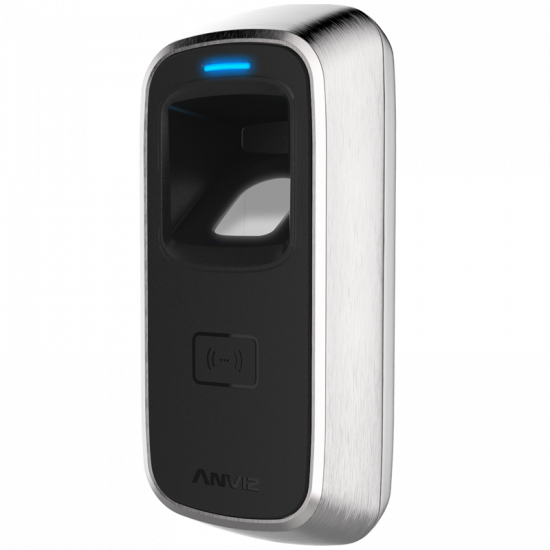

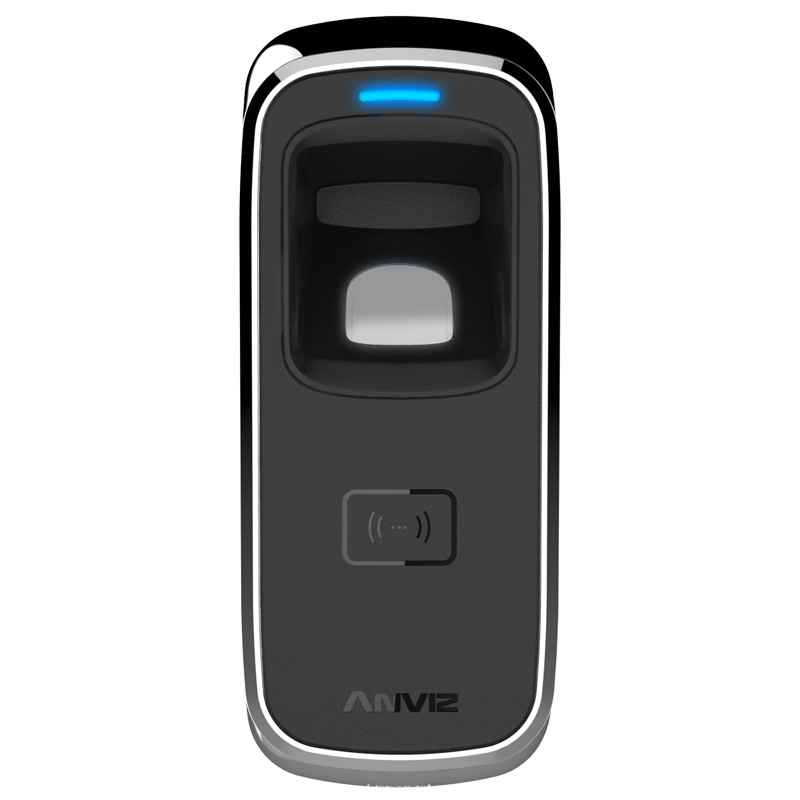

M5 Pro
Outdoor Fingerprint & RFID Access Control
M5 Pro by ANVIZ is a compact access control device that is designed to fit most door frames. The metal casing, with IP65 water-proof design, makes it suitable for indoor or outdoor applications. M5 Pro supports 125kHz Optional Mifare cards and fingerprint identification.
It has both Wiegand and TCP/IP, Optional Bluetooth protocol interfaces and can be combined with SC011 (Power supply controller) to be a standalone access control device, or integrated with professional distributed access controller from a third-party to enable large-scale networks.
-
Features
-
Slim and elegant design
-
Vandal resistant metal housing, IP65
-
Card read range: 0.78 to 1.96 in. (10 to 50 mm)
-
BioNANO algorithm ensures fast verification under 0.5s
-
LED indicators and buzzer for visual and audio feedback
-
Multiple verification modes guarantee flexibility and safety
-
Multiple communication modes such as TCP/IP, Wiegand 26/34, easy for installation and integration
-
Tamper alarm output
-
-
Specification
Capacity Fingerprint Capacity 3,000
Card Capacity 3,000
Log Capacity 50,000
Inferface Relay Relay Output
Feature Identification Mode Fingerprint/Card Network Port TCP/IP, Optional Bluetooth Wiegand Protocol Support Wiegand 26 Log Capacity 50,000 Verification Speed < 0.5s(1:N) Card Read Range 0.78 to 1.96 in. (10 to 50 mm) Hardware Operating Voltage DC 12V
Work Current 150mA
Operating Temperature -30°C to 60°C
Humidity 20% to 90% Non-Condensing
Size(WxHxD) 19.7 x 48.8 x 13.6 in. (50 x 124 x 34.5 mm)
Accessory SC011(Controller)
Certificate FCC, CE, RoHS
-

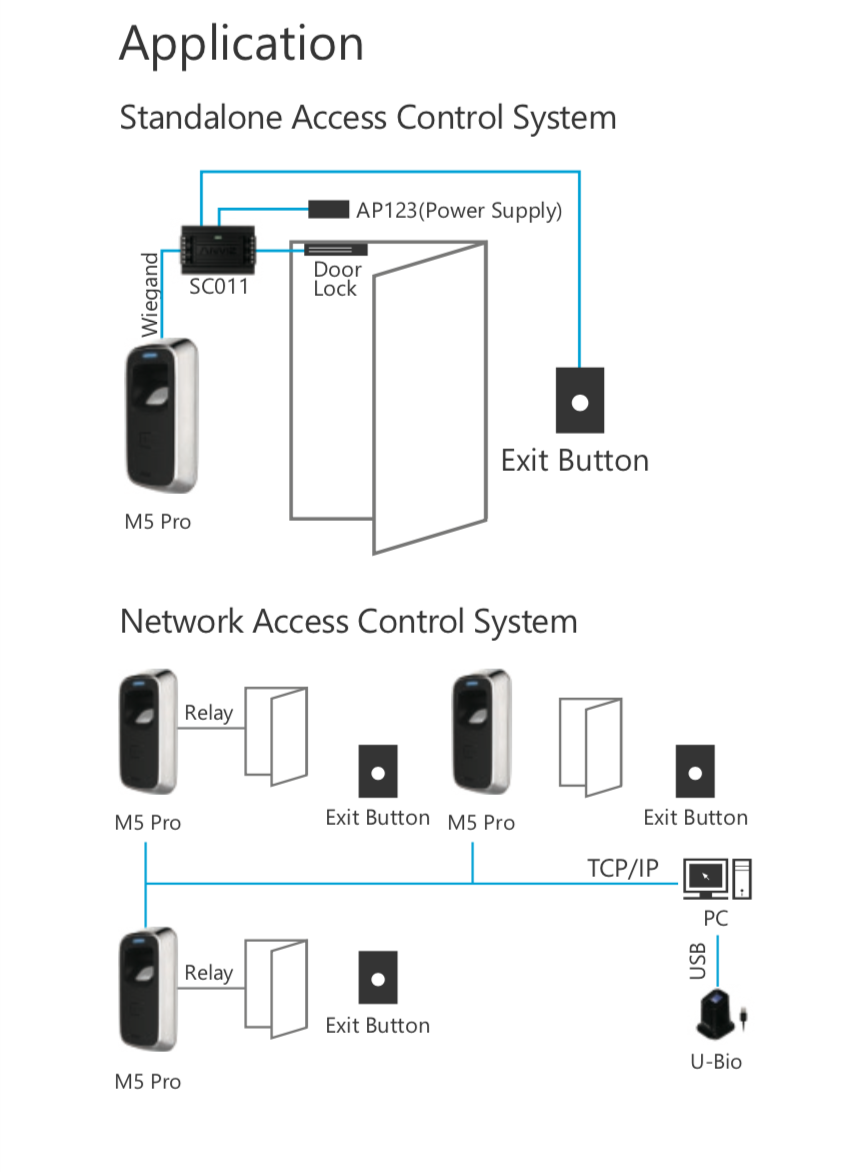

Application
-
Related Download
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Manual 2.2 MB
-
Anviz_M5Pro_QuickGuide_EN_09.05.2018
09/05/2018
2.2 MB
- Brochure 339.6 KB
-
Anviz_M5Pro_Catalogue_EN_07.16.2018
07/16/2018
339.6 KB
Related Faq
-
How to Upgrade Anviz Firmware (ST Platform)? 04/16/2020Video for non-screen device Firmware upgrade
Instruction
Video for device with screen Firmware upgrade
Step 1) Get Firmware Upgrade Tool (Download Here)
Connect device to your PC with RJ11 to USB cable or Mini USB cable.
Step 2) Get authorization (Optional)
After connection, swipe the admin card (Enroll Card or Delete Card) in 10 seconds.
ATTENTION ! This step is only for non-LCD screen models!
Step 3) Confirm that the device is connected successfully
You will see a new disk driver icon occurs in your windows file manager.
Step 4) Upgrade in your PC
4.1 Run Firmware Upgrade Tool.
4.2 Update to the newest version of Firmware
-- Click “Browser” to find the corresponding Firmware (*.bin file).
-- Click “Upgrade” to start upgrading, this process may take a few seconds.
4.3 Now you get the last version of Firmware.
Please contact us (support@anviz.com) if you have any problem.
Thanks!
Anviz Technical Support Team
2020-04-16
