SC011
Access Controller
SC011 is a simple, secure and cost effective access controller with high security level. SC011 doesn’t require any software, which makes it extremely easy to use. SC011 only accepts encrypted wiegand signal by Anviz to ensure high security level. Furthermore, its anti-thunder, anti-static electricity,short-circuit protection function makes SC011 outstanding among similar products.
-
Features
-
Simple setup for door-open privilege.
-
No background software needed.
-
Support Anviz encrypted Wiegand for high security level.
-
One standard ports for fingerprint or card readers.
-
Support dry contact signal output.
-
Support 12V power supply for EM locks.
-
Special anti-thunder, anti-static electricity and short-circuit protection design
-
-
Specification
Inferface Relay 1 Feature Wiegand ANVIZ Encrypted Wiegand Hardware Operating Voltage DC 12V Size 70(w)*55(h)*25(d)mm Electric Lock 1 -

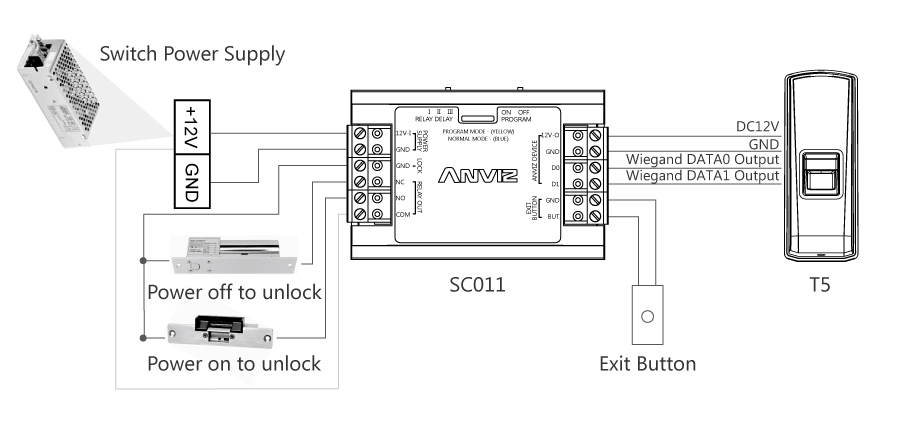

Application
Related Download
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Manual 2.0 MB
-
SC011 Quick Guide
07/14/2017
2.0 MB
