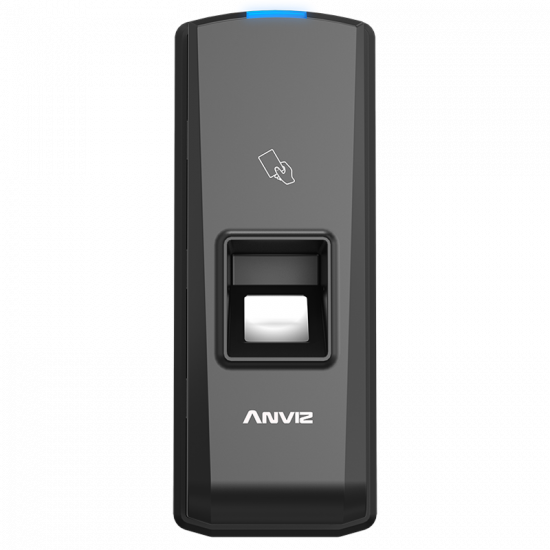

Fingerprint & RFID Access Control
T5 Pro is an innovative fingerprint card access controller which fully integrates fingerprint and RFID technology. The very compact design makes it suitable for installation on door frame. T5 Pro has standard Wiegand output to connect seamlessly with access controllers and relay output driver the electric lock directly. T5 Pro can easily update the existing card readers for higher security level of fingerprint and card.
Small in size and compact in design. Can be easily installed on the doorframe
New generation fully sealed, waterproof and dustproof fingerprint sensor. BioNano core fingerprint algorithm
Steady 2011 version algorithm platform for T&A and access control, high performance and reliability
Easy user enrollment on the unit via Master Card or in the management software on computer
Identification method: fingerprint, card, fingerprint + card
RFID, Mifare card module. Compatible with industrial standard
Fingerprint Storage Capacity: 5000
Communicate with computer via TCP/IP and RS485, Mini USB port
Direct lock control and door open sensor as a standalone access controller
Standard Wiegand26 output to connect with standard access controller
Encrypted Wiegand output to connect with Anviz simple access controller SC011
Capacity | ||
---|---|---|
Fingerprint Capacity |
5,000 |
|
Log Capacity |
50,000 |
|
Inferface | ||
Communication Interface |
RS485, USB Plug & Play, TCP/IP |
|
Relay |
1 Relay |
|
Feature | ||
Identification Mode |
FP, Card, FP+Card |
|
Identification Time |
<0.5s |
|
FRR |
0.001% |
|
FAR |
0.00001% |
|
Card Reader Module |
Standard EM RFID, Optional Mifare Card |
|
Certificate |
FCC, CE, ROHS |
|
Wiegand |
Wiegand26 Output |
|
Hardware | ||
Optical Sensor |
AFOS Optical Sensor |
|
Auto Sensor Wake Up Mode |
Yes |
|
Scan Area |
22mmx18mm |
|
Resolution |
500 DPI |
|
Door Open Sensor |
Yes |
|
Size(LxWxH) |
145mmx55mmx37mm |
