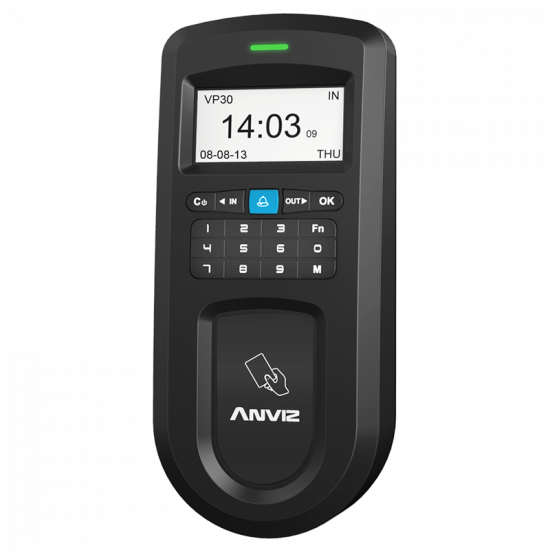

VP30
RFID Access Control
VP30 card access control and time attendance is a professional access control system developed for small to medium size businesses for security. It integrates RFID, burglar alarm, time attendance and access control functions etc.,with fashionable and elegant appearance and reliable quality. It has high quality musical buzzer, multiple language display, user friendly interface and powerful communication function suitable for data management in various environments. It comes with functional background management software, compatible with various types of database. It supports time zone and group access control for high security level. It is versatile, convenient and multi-functional.
-
Features
-
Multiple languages including English, French, Spanish, Portuguese and Chinese etc.
-
White backlit keypad with 10 numeric keys and 7 function keys
-
Standard RFID card reader, optional Mifare card reader
-
RS485, USB device and TCP/IP for network connection
-
Tamper alarm output to connect with alarm equipment outside
-
Alarm card No. can be sent to controller by Wiegand 26
-
Direct lock control to open door
-
Optional SC011 or any other standard access controller for separate type secure access control system
-
Time zone and group access control, realtime data transfer monitor
-
Identification method: Card, Password
-
Standard 20000 card users and 200000 records
-
Wall mounted, combine 2-in-1 function for access control and time attendance
-
-
Specification
Capacity Fingerprint Capacity 2,000 (VF30)
Card Capacity 2,000 (VF30) 20,000 (VP30)
Log Capacity 50,000 (VF30) 200,000 (VP30)
Inferface Communication Interface RS485, Mini USB Slave, PoE-TCP/IP, Wiegand In/OutI
Relay DC 12V, Relay Output (COM, NO, NC)
Feature Identification Mode(VF30) FP, Card, PW
Identification Mode(VP30) Card, PW
Activation mode Touch
Identification Time <0.5 Sec
Scan Area 22mm*18mm
Card Reader Standard EM Card, Optional Mifare
Fingerprint Image Display Yes
Self-defined Status 16 Customizable time and attendance status
Workcode 6- digit work cod
Short Message 50
Scheduled Bell 30
Soft Anviz Crosschex Standard
Hardware LCD 128*64 white LCD
Door Open Sensor Yes
Dimensions(WxHxD) 80x180x40mm(3.15x7.1x1.6″)
Temperature -30℃~60℃
Tamper Alarm Yes
Operating Voltage DC 12V
-
Application
-
Related Download
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Manual 2.7 MB
-
Anviz_VP30_QuickGuide_EN_12.19.2013
07/05/2018
2.7 MB
- Brochure 1.2 MB
-
Anviz_VP30_Catalogue_EN_12.19.2013
07/05/2018
1.2 MB
Related Faq
-
How to Upgrade Anviz Firmware (ST Platform)? 04/16/2020Video for non-screen device Firmware upgrade
Instruction
Video for device with screen Firmware upgrade
Step 1) Get Firmware Upgrade Tool (Download Here)
Connect device to your PC with RJ11 to USB cable or Mini USB cable.
Step 2) Get authorization (Optional)
After connection, swipe the admin card (Enroll Card or Delete Card) in 10 seconds.
ATTENTION ! This step is only for non-LCD screen models!
Step 3) Confirm that the device is connected successfully
You will see a new disk driver icon occurs in your windows file manager.
Step 4) Upgrade in your PC
4.1 Run Firmware Upgrade Tool.
4.2 Update to the newest version of Firmware
-- Click “Browser” to find the corresponding Firmware (*.bin file).
-- Click “Upgrade” to start upgrading, this process may take a few seconds.
4.3 Now you get the last version of Firmware.
Please contact us (support@anviz.com) if you have any problem.
Thanks!
Anviz Technical Support Team
2020-04-16 -
Contents
Part 1. Anviz CrossChex Connection Guide
1) Connection Via Mini USB
2) Two Ways To Remove The Admin's Permission
Part 2. Reset Anviz Devices Admin Password
1) Reset Anviz Devices Admin Password
.
Part 1.
1) Step 1.1: Connection via mini USB. (Skip to Step 1.2 if using the TCP/ IP model)
CrossChex -> Device -> Add -> Input '0' as device ID -> Add
2) Step 1.2: Connection via the TCP/ IP model.
Click the 'Add' button and then 'Search' button. All available devices will be listed below. Choose the one device that you want to connect to CrossChex, and press the 'Add' button.
Step 2: Test if the device is connected to CrossChex.
Click the 'Synchronize time' to test if the device/s and CrossChex are connected successfully.
3) There are two ways to remove the admin's permission.
Step 3.1.1:
Select the user/s that you want to remove admin permission. Double click the user to open Add/ Modify User Info page, then change 'administrator' (the administrator displays in red font) to 'Normal user'.
CrossChex -> User -> Select one user -> change Administrator -> Normal user
Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.
Step 3.1.2:
Click 'Set Privilege', choose the group, then click the 'OK' button.
Step 3.2.1: Back up the user and records.
Step 3.2.2: Initialize the Anviz Device (*******Warning! All Data Will Be Removed******)
Click Device information, click initialize the device, then click 'OK'
Part 2
1) Reset Anviz devices admin pasword.
Run CrossChex -> Device -> Device Parameter -> Management Password -> OK
