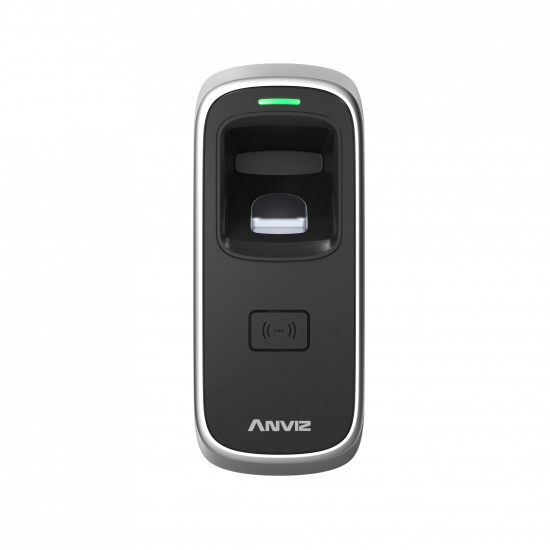

M5 Plus
Outdoor Fingerprint and RFID Access Control Device
M5 Plus is new generation outdoor professional access control device. With fast linux based 1Ghz CPU, and latest BioNANO® fingerprint algorithm, M5 plus ensures a less than 0.5 second comparison time under 1:3000 status. The standard Wi-Fi and bluetooth functions realize the flexible installation and operation. The IP65 and IK10 design let M5 plus can be used in various outdoor environment. M5 plus also supports easily near field bluetooth opening by Anviz Crosschex E-key APP.
-
Features
-
The new Linux based 1Ghz processor ensures the 1:3000 comparison time less than 0.5 second
-
Your mobile device will be the key with bluetooth function and you can realize shake opening with ekey APP.
-
The WiFi function ensures power on to work, and realize the flexible installation of the device.
-
The standard IP65 design ensures the the complete outdoor application of the device
-
The touch active sensor ensures the quick response for each detection and saving the total power consumption of the device.
-
The Webserver ensures the easily quick connection and self management of the device
-
-
Specification
Capacity User 3,000
Card 3,000
Record 50,000
Inferface Comm TCP/IP, RS485, Mini USB, Wi-Fi, Bluetooth
Relay Relay Output
I/O Wiegand out, Door contact, Exit Button, Door Bell
Feature Identification Mode Finger, password, card(standard EM)
Identification Speed <0.5s
Card Reading Distance 1~5cm ( 125KHz), for standard CR80 card
WebServer Support
Hardware CPU Linux Based 1Ghz CPU
RFID Card Standard EM
Working Temperature -35°C~60°C
Humidity 20% to 90%
Power input DC12V
Protection IP65, IK10
-
Related Download
- Brochure 22.6 MB
-
2022_Smart Surveillance Management Platform_EN
02/18/2022
22.6 MB
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Manual 2.3 MB
-
M5 Plus Quick Guide
09/27/2021
2.3 MB
- Brochure 2.1 MB
-
Anviz M5 Plus Flyer_en
01/06/2020
2.1 MB
Related Faq
-
Contents:
Part 1. Firmware Updates Via Web Server
1) Normal Update (video)
2) Forced Update (video)
Part 2. Firmware Updates Via CrossChex (video)
Part 3. Firmware Updates Via Flash Drive
1) Normal Update (video)
2) Forced Update (video)
.
Part 1. Firmware Update Via Web Server
1) Normal Update
>> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)
>> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
>> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.
>> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)
>> Step 5. Choose 'Advance Setting'
>> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.
>> Step 7. Update Complete.
>> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
2) Forced Update
>> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.
>> Step 2. Forced Firmware Upgrade mode is set successfully.
>> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
Part 2: How To Update Firmware Via CrossChex
>> Step 1: Connect the Anviz device to the CrossChex.
>> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.
>> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.
>> Step 4. Choose the firmware that you want to update.
>> Step 5. Firmware update process.
>> Step 6. Firmware Update Complete.
>> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.
Part 3: How To Update The Anviz Device Via Flash Drive.
1) Normal update mode
Recommended Flash Drive Requirement:
1. Empty Flash Drive, or place firmware files in the Flash Drive root path.
2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)
3. Memory Size under 8GB.
>> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.
You will see a small Flash Drive icon on the device screen.
>> Step 2. Login with Admin mode to the device -> and then 'Setting'
>> Step 3. Click 'Update' -> then 'OK'.
>> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.
>> Done
2) Force update mode
(****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs. *****)
>> Step 1. Follow the Flash Drive Update from step 1 - 2.
>> Step 2. Click 'Update' to get into the page like showing in the below.
>> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.
>> Step 4. Click 'OK', and the device will restart once to complete the update.
>> Step 5. Update Complete.
