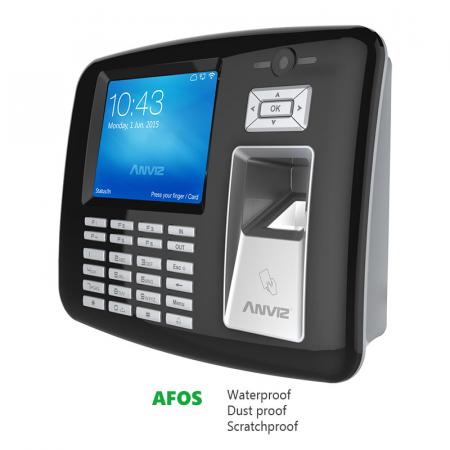

OA1000 Pro
Multimedia Fingerprint & RFID Terminal
OA1000Pro is an Anviz fingerprint identification flagship product, based on the Linux operating system, featuring: dual-core high-speed CPU; large memory support; and 1: 10000 matching speed of less than 0.5 seconds. Take advantage of flexible networking with a variety of network connections: TCP/IP, optional WIFI or 3G communication modules. The OA1000Pro features a built-in webserver, allowing convenient access to the device settings and record searching. OA1000Pro with Anviz Crosschex Cloud system, reduces the cost of system configuration and the mobile APP provide the great flexibility for enterprise management.
-
Features
-
Dual Core high speed CPU, large memory support 10,000 FP Templates
-
Less than 0.5s rapidly verification speed (1:10,000)
-
1.3Million Camera capture verifier’s photo for event backup
-
Internal Webserver for device quick set and records check
-
TCP/IP, WIFI, 3G and RS485 multi communication modes
-
Dual Relays both for door control and linkage with alarm system
-
Provide complete Development Kit to build exclusive application platform(SDK, EDK, SOAP)
-
Supports a variety of third-party modules, to meet different project requirement(Mercury, U.ARE.U, HID iClass)
-
-
Specification
Module OA1000 Pro OA1000 Mercury Pro (Live Identification) Sensor AFOS Lumidigm Algorithm Anviz BioNANO Lumidigm Anviz BioNANO (Optional) User Capacity 10,000 1,000 10,000 Fingerprint Template Capacity 10,000 1,000
10,000 Scan Area(W * H) 18mm * 22mm 13.9mm * 17.4mm Dimensions(W * H * D) 180 * 137 * 40mm 180 * 137 * 50mm Capacity Log Capacity 200,000
Inferface Comm TCP/IP, RS232, USB Flash Drive Host, Optional WIFI, 3G
Relay 2 Relays Output (Directly Lock control & Alarm output
I/O Wiegand In&Out, Switch, Door Bell
Feature FRR 0.001%
FAR 0.001%
User Photo Capacity 500 Support 16G SD card
Support RFID Card 125KHZ EM Option 13.56MHZ Mifare , HID iClass
Webserver Built-in Webserver
Image Display User Photo & Fingerprint Image
Short Message 200
Scheduled Bell 30 Scheduleds
Self-service Record Inquiry Yes
Groups & Time Schedules 16 Groups, 32 Time Zones
Certificate FCC, CE, ROHS
Tamper Alarms Yes
Hardware Operating Voltage DC 12V
Temperature -20℃~ 60℃
Preferred Humidity 10 to 90%
Firmware Upda USB Flash Drive, TCP/IP, Webserver
Processor Dual Core 1.0GHZ High Speed Processor
Memory 8G Flash Memory & 1G SDRAM
Resolution 500 DPI
LCD 3.5 Inch TFT Display
Camera 0.3 Million Pixel Cameras
-
Application
Network Access Control System
Flexible applications such as standalone, secure and network system for different industries.
The network access control system consists of different access control systems such as standalone
system, secure system and distributed system. Thissystem is the most professional solution,
which best fits projects with multiple requirements.
Related Download
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Brochure 934.0 KB
-
Anviz_OA1000Pro_Catalogue_EN_07.03.2018
07/13/2018
934.0 KB
- Manual 24.3 MB
-
Anviz_OA1000Pro_QuickGuide_EN_07.05.2018
07/05/2018
24.3 MB
Related Faq
-
Contents:
Part 1. Firmware Updates Via Web Server
1) Normal Update (video)
2) Forced Update (video)
Part 2. Firmware Updates Via CrossChex (video)
Part 3. Firmware Updates Via Flash Drive
1) Normal Update (video)
2) Forced Update (video)
.
Part 1. Firmware Update Via Web Server
1) Normal Update
>> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)
>> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
>> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.
>> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)
>> Step 5. Choose 'Advance Setting'
>> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.
>> Step 7. Update Complete.
>> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
2) Forced Update
>> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.
>> Step 2. Forced Firmware Upgrade mode is set successfully.
>> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
Part 2: How To Update Firmware Via CrossChex
>> Step 1: Connect the Anviz device to the CrossChex.
>> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.
>> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.
>> Step 4. Choose the firmware that you want to update.
>> Step 5. Firmware update process.
>> Step 6. Firmware Update Complete.
>> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.
Part 3: How To Update The Anviz Device Via Flash Drive.
1) Normal update mode
Recommended Flash Drive Requirement:
1. Empty Flash Drive, or place firmware files in the Flash Drive root path.
2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)
3. Memory Size under 8GB.>> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.
You will see a small Flash Drive icon on the device screen.
>> Step 2. Login with Admin mode to the device -> and then 'Setting'
>> Step 3. Click 'Update' -> then 'OK'.
>> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.
>> Done
2) Force update mode
(****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs. *****)
>> Step 1. Follow the Flash Drive Update from step 1 - 2.
>> Step 2. Click 'Update' to get into the page like showing in the below.
>> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.
>> Step 4. Click 'OK', and the device will restart once to complete the update.
>> Step 5. Update Complete.
-
Contents
Part 1. CrossChex Connection Guide
1) Connection Via the TCP/ IP model
2) Two ways to remove the admin permissionPart 2. Reset Anviz Devices Admin Password
1) Connected to the CrossChex but the admin password is lost
2) The device communication & admin password are lost
3) The keypad is locked, and communication and admin password are lost
Part 1: CrossChex Connection Guide
Step 1: Connection via the TCP/IP model. Run the CrossChex, and click the 'Add' button, then the 'Search' button. All available devices will be listed below. Choose the device that you want to connect to the CrossChex and press the 'Add' button.
Step 2: Test if the device is connected to the CrossChex.
Click the 'Synchronize time' to test and make sure the device and CrossChex are connected successfully.
2) Two methods to clear the administrator's permission.
Step 3.1.1
Select user/s that you want to cancel administrator permission, and double click the user, then change 'administrator' (the administrator will display in red font) to 'Normal user'.
CrossChex -> User -> Select one user -> change Administrator -> Normal user
Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.
Step 3.1.2
Click 'Set Privilege', and choose the group, then click the 'OK' button.
Step 3.2.1: Back up the users and records.
Step 3.2.2: Initialize the Anviz Device (********Warning! All Data Will Be Removed! **********)
Click 'Device Parameter' then 'Initialize the device, and click 'OK'
Part 2: Reset Aniviz devices admin password
Situation 1: Anviz device is connected to the CrossChex but the admin password is forgotten.
CrossChex -> Device -> Device Parameter -> Management password -> OK
Situation 2: The device's communication & admin password are unknown
Input '000015' and press 'OK'. A few random numbers will pop up on the screen. For security reasons, please send those numbers and the device serial number to the Anviz support team (support@anviz.com). We will provide technical support after receiving the numbers. (Please DO NOT turn off or restart the device before we provide technical support.)
Situation 3: The keypad is locked, communication and admin password are lost
Input 'In' 12345 'Out' and press 'OK'. It will unlock the keypad. Then follow the steps as Situation 2.
