    EC4502-IREB

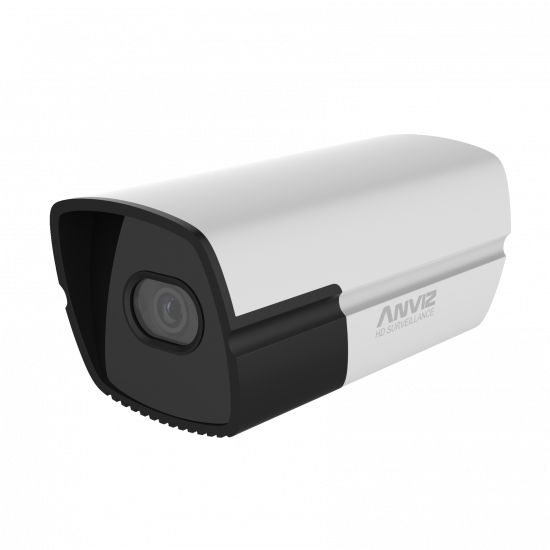

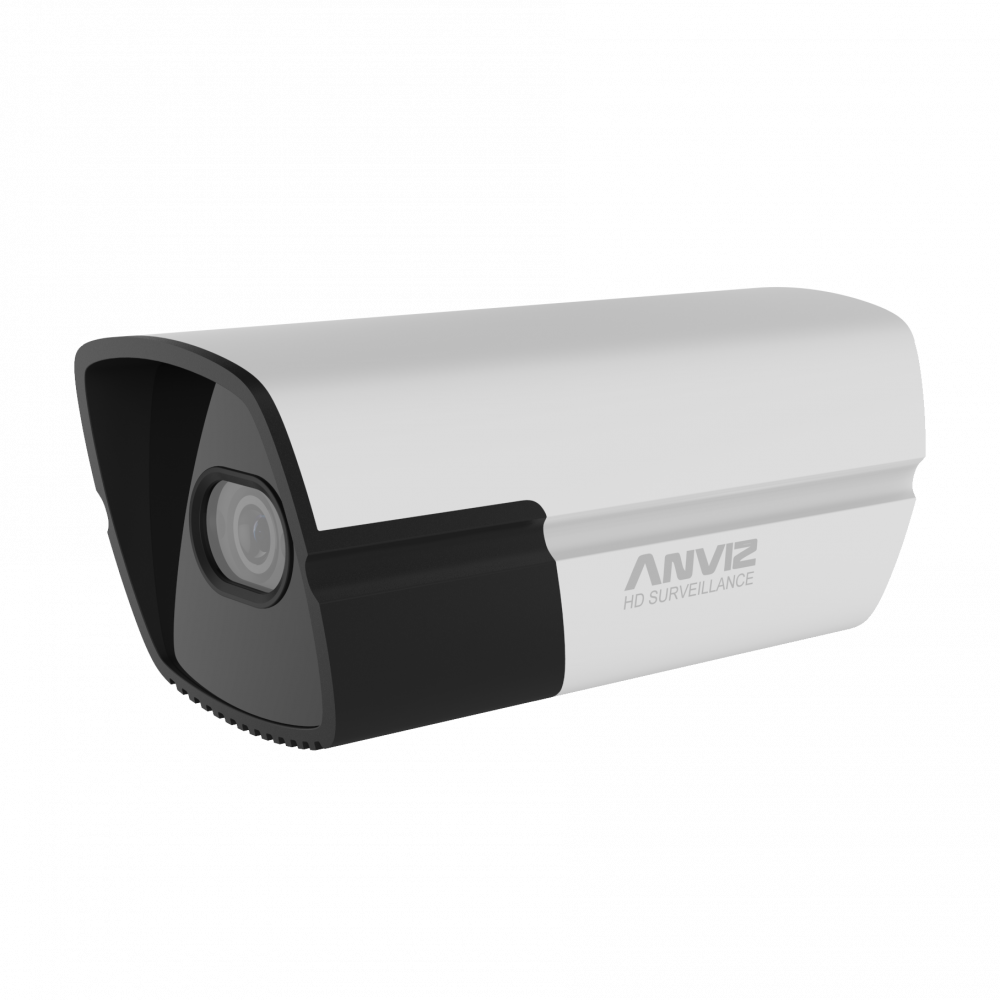

    Mini HD IR Bullet Network Camera （New smart stream Model)

    Ecoview cameras provide 1080P high resolution images in a stylish design. EcoView has a IR anti-reflection shield to hide IR lights and increase the infrared transmittance for clearer images. The perfect combination of Intelligent Infrared and day/night conversion, greatly improve the visibility of night surveillance in low-light environments. The Ecoview Series is suitable for home, small businesses, hotels and other similar deployments. The new Ecoview series includes Smart stream function which could save 50% more storage.

    • IP66
    • IR
    • Micro SD
    • Motion Detection
    • Onvif
    • POE

  • Feature

    • True Day/Night Functionality with Removeable IR Cut Filter

    • Smart Stream saving more than 50% storage

    •  Intelligent Infrared Technology

    •  Motion Detection

    • Hidden IR and IR Shield: The High Polymer IR shield can effectively increase the transmittance of infrared light and provide a better concealment.

    •  Easy installation: Unique bracket design encloses all cables, providing better protection from tampering and an easier installation.

  • Parameter

    Type EC4502-IRB EC4502-IREB
    Resolution 2 Megapixel 2 Megapixel
    Image Sensor 1/3" CMOS 1/3" CMOS
    Shutter Time 1/3s-1/100000s 1/3s-1/100000s
    Frame rate 50HZ: 25fps(1280×720)
    60HZ: 30fps(1280×720)    		 50HZ: 20fps(1920×1080)
    60HZ: 20fps(1920×1080)
    Minimun Illumination 0.05 Lux (Color) / 0.005 Lux(B/W) 0.01 Lux (Color) / 0.001 Lux(B/W)
    Horizontal Angle of View 77° 77°
    Lens 2.4mm/F2.0
    m12    		 2.4mm/F2.0
    m12
    SN Ratio >52dB >52dB
    Data Transmission
    Transfer Protoco TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP,
    DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
    NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS
    Interface Protocol ONVIF
    Multistream Support main stream and sub stream
    Compression
    Video Compression H.264/MJPEG, Smart H.264
    H.264 Code Type BaseLine Profile / Main Profile / High Profile
    Compression Output Bitrate 32 Kbps~8Mbps
    Image Settings Rotate Mode(mirror, flip), Saturation,
    Brightness, Contrast, Sharpness
    adjustable by client software or web browser
    Day/Night IR-CUT
    BLC Support
    WDR Support
    DNR 3D DNR
    Privacy Mask With built-in micro-sd card slot which
    support maximum 128G storage
    Smart Function (Optional)
    Smart Detection Motion detection.
    IR
    IR Range 20m
    IR Control Intelligently adjust the IR brightness and
    angle according to scene
    Interface
    Ethernet RJ-45 (10/100/1000Base-T)
    General
    Operating Conditions -30°C to 60°C (-22°F to 140°F)
    Power Supply DC12V/PoE(802.3af)
    Power Consumption MAX 12W
    Protection IP66
    Weight 315g (0.69pounds)
    Dimensions Φ69*146mm (Φ2.7"*5.7")
    Safety Certifications CE, FCC, RoHS
