Multimedia Fingerprint & RFID Terminal

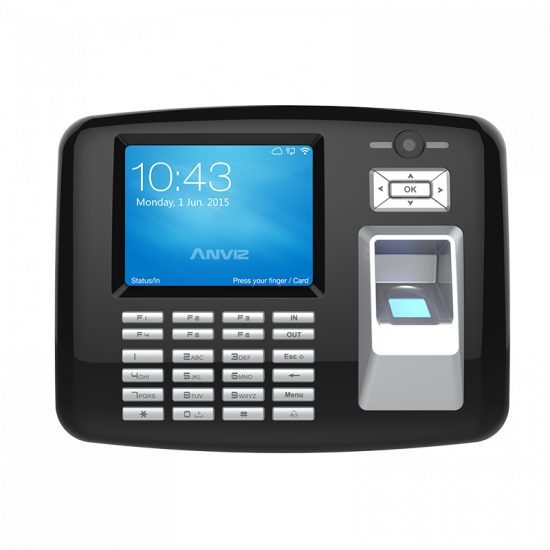

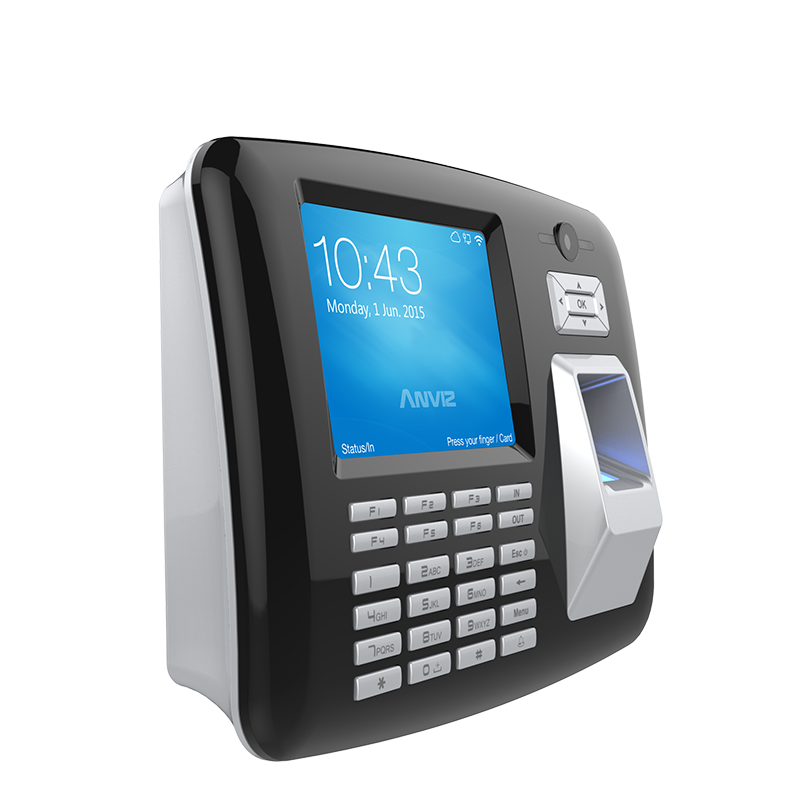

OA1000 Mercury Pro is a genuine breakthrough by Anviz in biometric identification terminals, which fully integrate fingerprint identification, RFID, camera, wireless, multimedia and embedded system technology. Utilizing 3.5 inch industrial TFT true color LCD, Dual Core high speed CPU based on the Linux operating system as well as Lumidigm’s multispectral imaging sensors. Lumidigm multispectral fingerprint sensors capture fingerprint data beneath the surface of the skin so that dryness or even damaged or worn fingers create no problems for reliable reads. As a result, Anviz biometric readers using Lumidigm sensors can scan through dirt, dust, high ambient light, water and even some latex gloves.
Dual Core high speed CPU, large memory support 1,000 FP Templates
Less than 0.5s rapidly verification speed (1:N)
1.3Million Camera capture verifier’s photo for event backup
Internal Webserver for device quick set and records check
TCP/IP, WIFI, 3G and RS485 multi communication modes
Dual Relays both for door control and linkage with alarm system
Provide complete Development Kit to build exclusive application platform(SDK, EDK, SOAP)
Module | OA1000 Pro | OA1000 Mercury Pro (Live Identification) | ||
---|---|---|---|---|
Sensor | AFOS | Lumidigm | ||
Algorithm | Anviz BioNANO | Lumidigm | Anviz BioNANO (Optional) | |
User Capacity | 10,000 | 1,000 | 10,000 | |
Fingerprint Template Capacity | 10,000 | 1,000 30,000(1:1) |
10,000 | |
Scan Area(W * H) | 18mm * 22mm | 13.9mm * 17.4mm | ||
Dimensions(W * H * D) | 180 * 137 * 40mm | 180 * 137 * 50mm |
Capacity | ||
---|---|---|
Log Capacity |
200,000 |
|
Inferface | ||
Communication Interface |
TCP/IP, RS232, USB Flash Drive Host, Optional WIFI, 3G |
|
Built-in Relay |
2 Relays Output (Directly Lock control & Alarm output |
|
I/O |
Wiegand In&Out, Switch, Door Bell |
|
Feature | ||
FRR |
0.001% |
|
FAR |
0.00001% |
|
User Photo Capacity |
500 Support 16G SD card |
|
ldentification Mode |
FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
|
Identification Time |
1: 10,000 <0.5 Sec |
|
Webserver |
Built-in Webserver |
|
Image Display |
User Photo & Fingerprint Image |
|
Short Message |
200 |
|
Scheduled Bell |
30 Scheduleds |
|
Self-service Record Inquiry |
Yes |
|
Groups Time Schedules |
16 Groups, 32 Time Zones |
|
Certificate |
FCC, CE, ROHS |
|
Tamper Alarms |
Yes |
|
Hardware | ||
Processor |
Dual Core 1.0GHZ High Speed Processor |
|
Memory |
8G Flash Memory & 1G SDRAM |
|
Resolution |
Resolution |
|
LCD |
3.5 Inch TFT Display |
|
Camera |
0.3 Million Pixel Cameras |
|
Support RFID Card |
125KHZ EM Option 13.56MHZ Mifare , HID iClass |
|
Operating Voltage |
DC 12V |
|
Temperature |
-20℃~ 60℃ |
|
Preferred Humidity |
10 to 90% |
|
Firmware Update |
USB Flash Drive, TCP/IP, Webserver |
