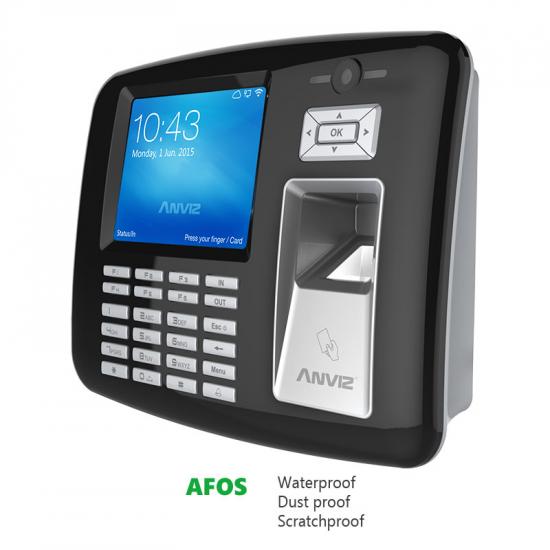

  • 471228_OA1000-01.jpg

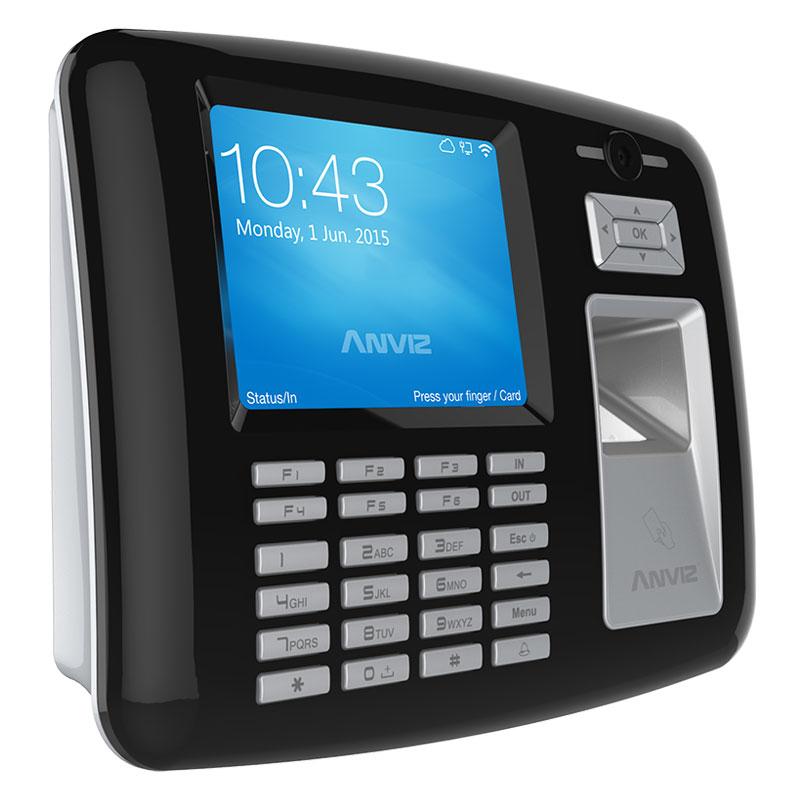

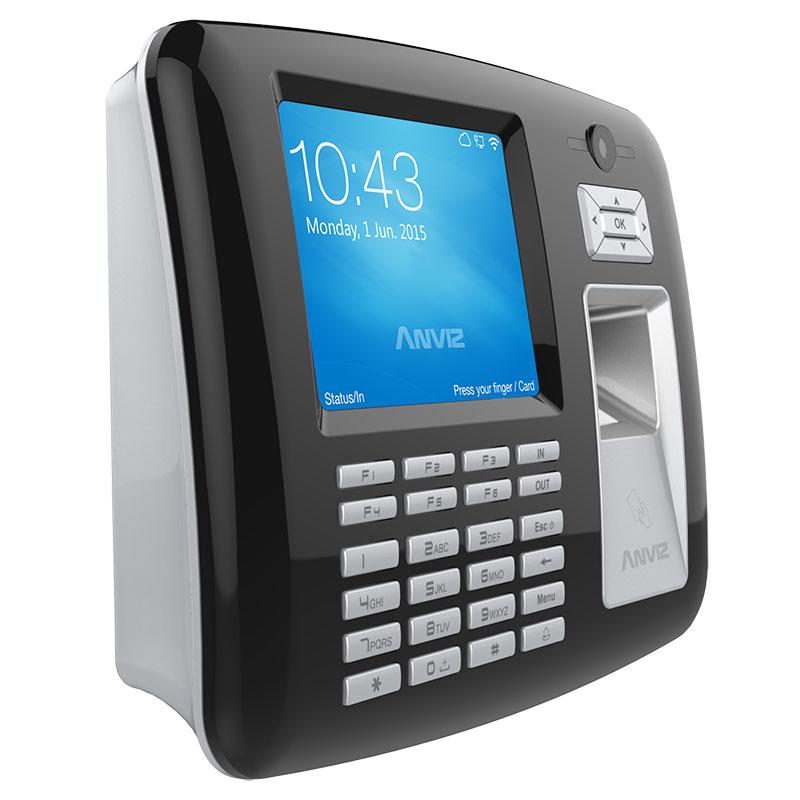

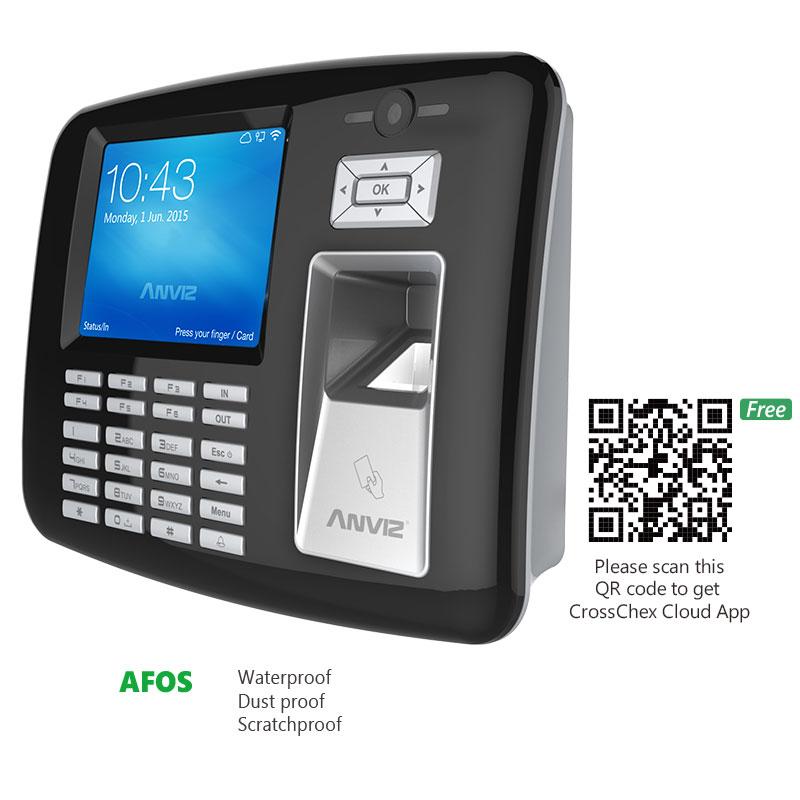

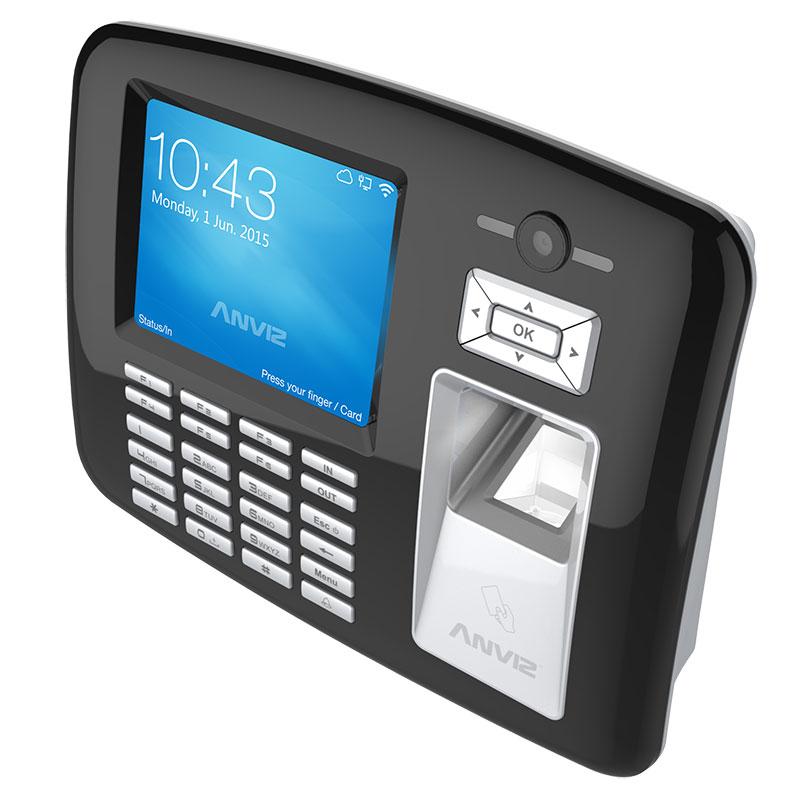

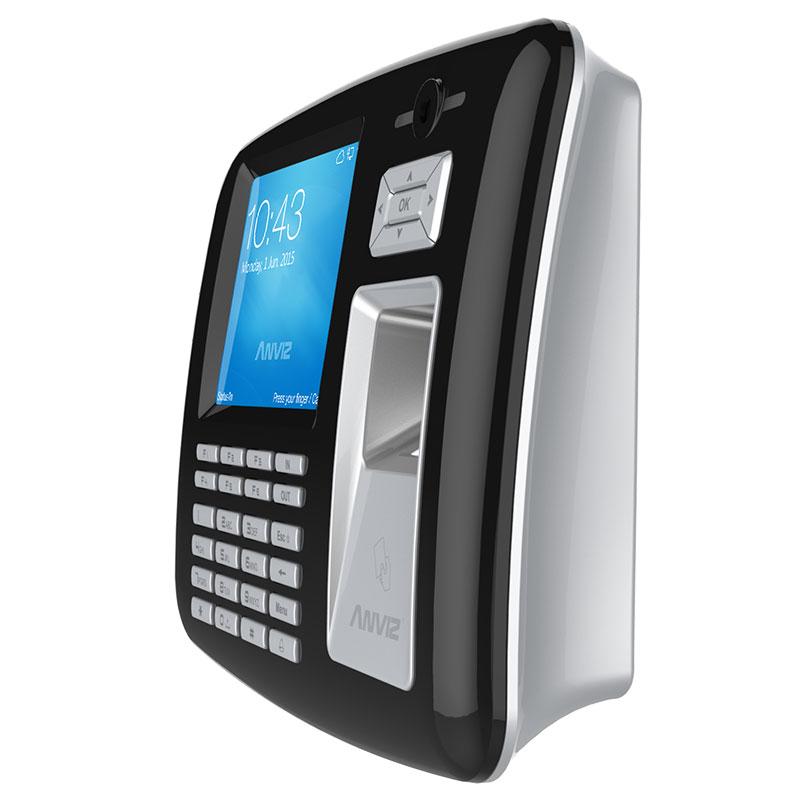

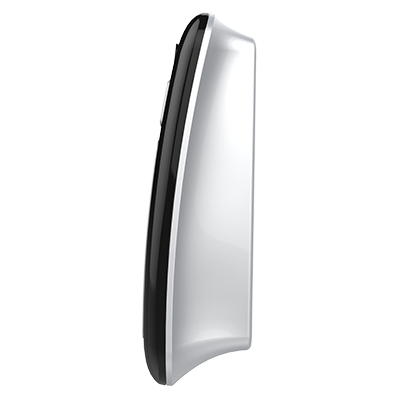

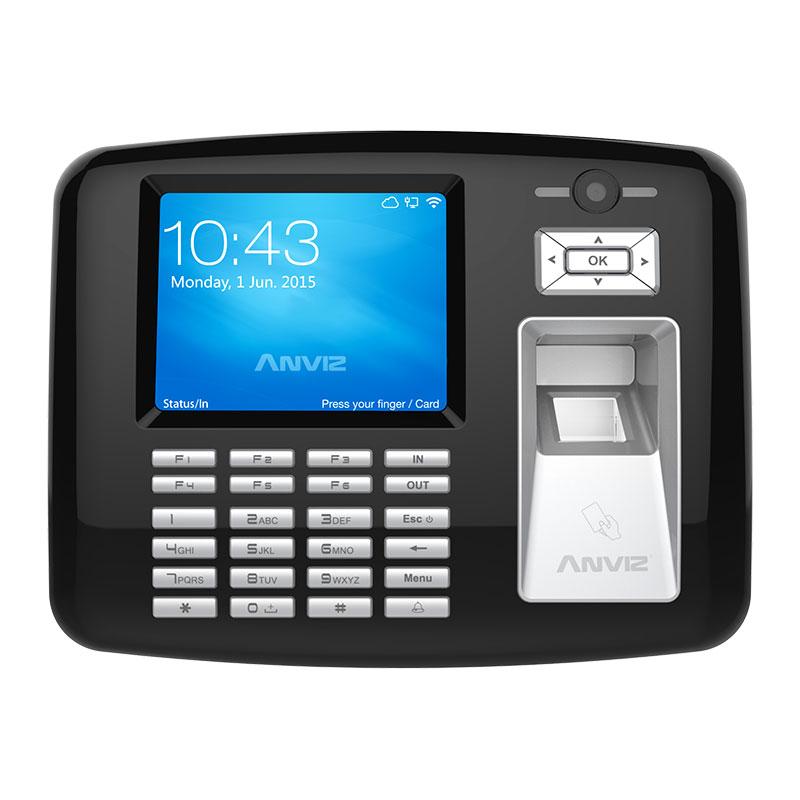

    OA1000 Pro

    Multimedia Fingerprint & RFID Terminal

    OA1000Pro is an Anviz fingerprint identification flagship product, based on the Linux operating system, featuring: dual-core high-speed CPU; large memory support; and 1: 10000 matching speed of less than 0.5 seconds. Take advantage of flexible networking with a variety of network connections: TCP/IP, optional WIFI or 3G communication modules. The OA1000Pro features a built-in webserver, allowing convenient access to the device settings and record searching. OA1000Pro with Anviz Crosschex Cloud system, reduces the cost of system configuration and the mobile APP provide the great flexibility for enterprise management.

    ce.jpg fcc.jpg rohs.jpg
    • AFOS
    • Camera
    • ID Card
    • Multi-Language
    • Self-Service Record Inquiry
    • TCP/IP

  • Features

    • Dual Core high speed CPU, large memory support 10,000 FP Templates

    •  Less than 0.5s rapidly verification speed (1:10,000)

    •  1.3Million Camera capture verifier’s photo for event backup

    •  Internal Webserver for device quick set and records check

    •  TCP/IP, WIFI, 3G and RS485 multi communication modes

    •  Dual Relays both for door control and linkage with alarm system

    • Provide complete Development Kit to build exclusive application platform(SDK, EDK, SOAP)

    •  Supports a variety of third-party modules, to meet different project requirement(Mercury, U.ARE.U, HID iClass)

  • Specification

    Module OA1000 Pro OA1000 Mercury Pro (Live Identification)
    Sensor AFOS Lumidigm
    Algorithm Anviz BioNANO Lumidigm Anviz BioNANO (Optional)
    User Capacity 10,000 1,000 10,000
    Fingerprint Template Capacity 10,000 1,000
         		 10,000
    Scan Area(W * H) 18mm * 22mm 13.9mm * 17.4mm
    Dimensions(W * H * D) 180 * 137 * 40mm 180 * 137 * 50mm
    Capacity
    Log Capacity

    200,000
    Inferface
    Comm

    TCP/IP, RS232, USB Flash Drive Host, Optional WIFI, 3G
    Relay

    2 Relays Output (Directly Lock control & Alarm output
    I/O

    Wiegand In&Out, Switch, Door Bell
    Feature
    FRR

    0.001%
    FAR

    0.001%
    User Photo Capacity

    500 Support 16G SD card
    Support RFID Card

    125KHZ EM Option 13.56MHZ Mifare , HID iClass
    Webserver

    Built-in Webserver
    Image Display

    User Photo & Fingerprint Image
    Short Message

    200
    Scheduled Bell

    30 Scheduleds
    Self-service Record Inquiry

    Yes
    Groups & Time Schedules

    16 Groups, 32 Time Zones
    Certificate

    FCC, CE, ROHS
    Tamper Alarms

    Yes
    Hardware
    Operating Voltage

    DC 12V
    Temperature

    -20℃~ 60℃
    Preferred Humidity

    10 to 90%
    Firmware Upda

    USB Flash Drive, TCP/IP, Webserver
    Processor

    Dual Core 1.0GHZ High Speed Processor
    Memory

    8G Flash Memory & 1G SDRAM
    Resolution

    500 DPI
    LCD

    3.5 Inch TFT Display
    Camera

    0.3 Million Pixel Cameras

  • Application




    Network Access Control System
    Flexible applications such as standalone, secure and network system for different industries.
    The network access control system consists of different access control systems such as standalone
    system, secure system and distributed system. Thissystem is the most professional solution,
    which best fits projects with multiple requirements.



Related Download

Related Faq

  • How to Update Anviz Device (Linux Platform) Firmware? 04/14/2020
     anviz logo




    Contents:
    Part 1. Firmware Updates Via Web Server

            1) Normal Update (video)
            2) Forced Update (video)

    Part 2. Firmware Updates Via CrossChex (video)

    Part 3. Firmware Updates Via Flash Drive

            1) Normal Update (video)
            2) Forced Update (video)

    .

    Part 1. Firmware Update Via Web Server


    1) Normal Update

    >> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)

    >> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
    Anviz device to PC via TCP/ IP or Wi-Fi Google Chrome is recommended
    >> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.

    >> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)

    web server

    >> Step 5. Choose 'Advance Setting'

    Choose Advance Setting

    >> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.

    Click Firmware Upgrade

    >> Step 7. Update Complete.

    Update Complete

    >> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
    2) Forced Update


    >> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.

    Follow the steps above till steps 4
    preview

    >> Step 2. Forced Firmware Upgrade mode is set successfully.

    Forced Firmware Upgrade mode is set successfully

    >> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
    Part 2: How To Update Firmware Via CrossChex


    >> Step 1: Connect the Anviz device to the CrossChex.

    >> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.
    Run the CrossChex and click the Device

    >> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.

    Right-click the blue icon

    >> Step 4. Choose the firmware that you want to update.

    Choose the firmware that you want to update

    >> Step 5. Firmware update process.

    Firmware update process

    >> Step 6. Firmware Update Complete.

    Firmware Update Complete

    >> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.

    Click the Device

    Part 3: How To Update The Anviz Device Via Flash Drive.


    1) Normal update mode


    Recommended Flash Drive Requirement:

         1. Empty Flash Drive, or place firmware files in the Flash Drive root path.

         2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)

         3. Memory Size under 8GB.



    Memory Size under 8GB

    >> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.

    FAT file system (Right-click USB Drive
    You will see a small Flash Drive icon on the device screen.

    >> Step 2. Login with Admin mode to the device -> and then 'Setting'

    Login with Admin mode to the device


    >> Step 3. Click 'Update' -> then 'OK'.

    It will ask you to restart

    >> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.

    to restart once to complete the update

    >> Done




    2) Force update mode



    (****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs.   *****)

    >> Step 1. Follow the Flash Drive Update from step 1 - 2.

    >> Step 2. Click 'Update' to get into the page like showing in the below.

    to get into the page like showing in the below

    >> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.
    the device will change to forced upgrade mode

    >> Step 4. Click 'OK', and the device will restart once to complete the update.
    the device will restart once to complete the update

    >> Step 5. Update Complete.
  • Reset/Cancel The Admin Permission Guide(Linux Platform) 03/26/2020
     anviz logo





    Contents
    Part 1. CrossChex Connection Guide

               1)  Connection Via the TCP/ IP model

           2)  Two ways to remove the admin permission

    Part 2. Reset Anviz Devices Admin Password

               1)  Connected to the CrossChex but the admin password is lost

           2)  The device communication & admin password are lost

           3)  The keypad is locked, and communication and admin password are lost



    Part 1: CrossChex Connection Guide

    Step 1: Connection via the TCP/IP model.  Run the CrossChex, and click the 'Add' button, then the 'Search' button. All available devices will be listed below. Choose the device that you want to connect to the CrossChex and press the 'Add' button.
    Connection via the TCP/IP model

    Step 2: Test if the device is connected to the CrossChex.

    Click the 'Synchronize time' to test and make sure the device and CrossChex are connected successfully.
    connected to the CrossChex
    2) Two methods to clear the administrator's permission.

    Step 3.1.1
    Select user/s that you want to cancel administrator permission, and double click the user, then change 'administrator' (the administrator will display in red font) to 'Normal user'.

    CrossChex -> User -> Select one user -> change Administrator -> Normal user

    cancel administrator permission



    Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.  set it as a normal user


    Step 3.1.2

    Click 'Set Privilege', and choose the group, then click the 'OK' button.
    choose the group



    Back up the users and records

    Step 3.2.1: Back up the users and records.

    Back up the users and records


    Initialize the Anviz Device


    Step 3.2.2: Initialize the Anviz Device (********Warning! All Data Will Be Removed! **********)

    Click 'Device Parameter' then 'Initialize the device, and click 'OK'
    Initialize the device



    Part 2: Reset Aniviz devices admin password


    Situation 1: Anviz device is connected to the CrossChex but the admin password is forgotten.

    CrossChex -> Device -> Device Parameter -> Management password -> OK
    Management password


    Situation 2: The device's communication & admin password are unknown


    Input '000015' and press 'OK'. A few random numbers will pop up on the screen. For security reasons, please send those numbers and the device serial number to the Anviz support team (support@anviz.com). We will provide technical support after receiving the numbers. (Please DO NOT turn off or restart the device before we provide technical support.)

    security reasons

    Situation 3: The keypad is locked, communication and admin password are lost

    Input 'In' 12345 'Out' and press 'OK'. It will unlock the keypad. Then follow the steps as Situation 2.
