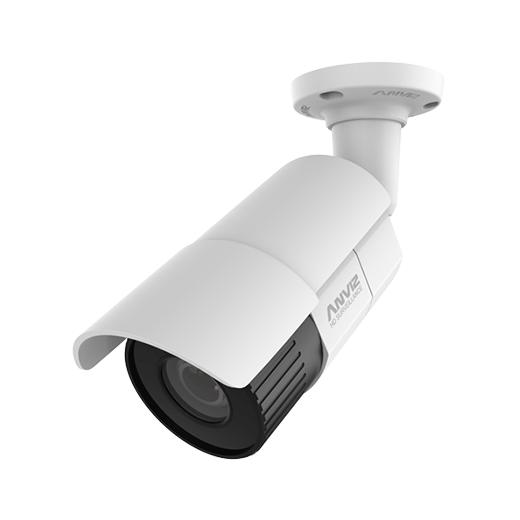

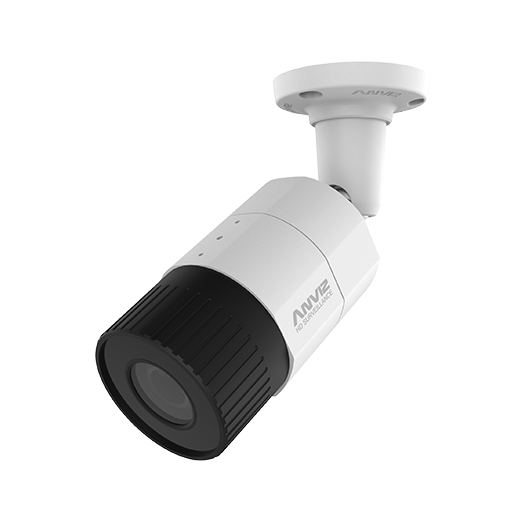

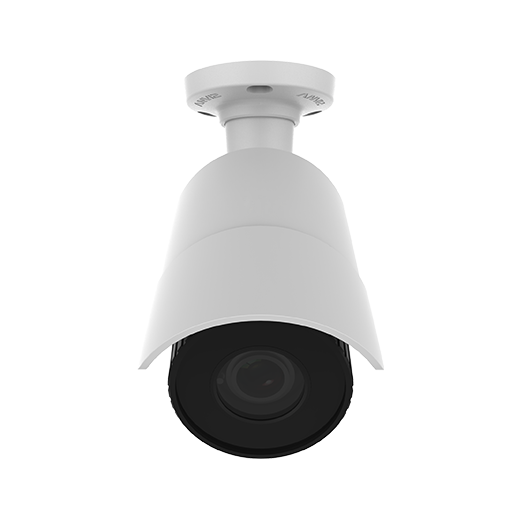

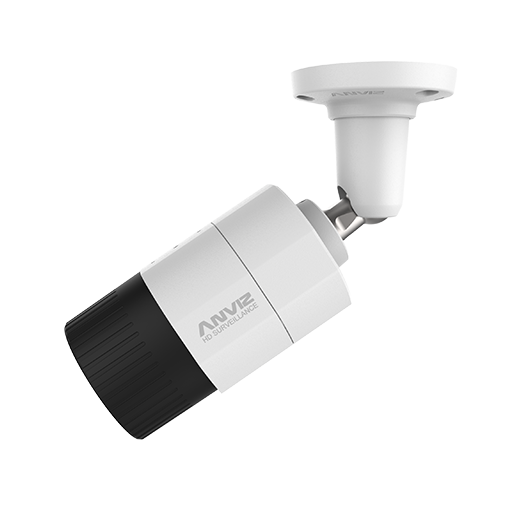

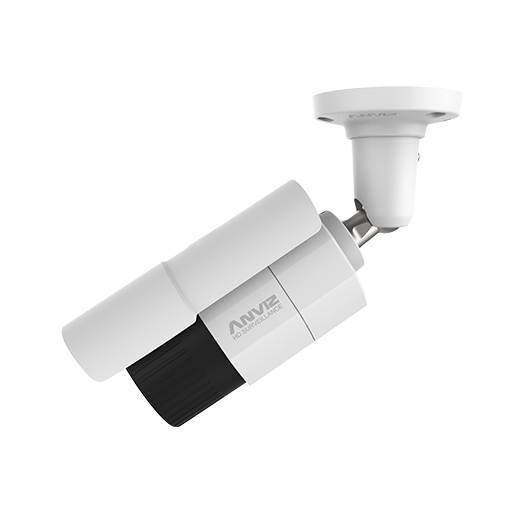

iCam-B38Z
8MP AI IR Outdoor Bullet Network Camera
The iCam-B3 Series camera is designed for outdoor installation for its heat dissipation. The efficient all-in-one design makes an easier installation with ultra-stable performance. The Zoom Lens ensure the remote control of the camera. Smart H.265 function which could save 30%~50% more storage. Smart Edge-Based AI Analytics:Vehicle Analysis,Face&Pedestrian Detection,Face Match，ANPR ,ensures best protection for your people, vehicles, and assets.
-
Features
-
High Definition up to 8M
-
Edge AI application
-
IP66 outdoor design
-
Vari vocal lens
-
True WDR
-
Star-light support
-
Super Long Range IR
-
Cloud application support
-
-
Specification
Model iCam-B38D iCam-B38P
iCam-B38CImage Sensor 1/1.8" 8 Megapixel Progressive Scan CMOS Shutter Time 1/3s~1/100000s Minimum Illumination Color: 0.005Lux @(F1.2,AGC ON) ,
B/W: 0Lux @(IR LED ON)Day/Night IR-CUT with auto switch /scheduled WDR HDR BLC Support IR Range Up to 50m Pan/Titl / Lens Lens Focal Length 3.6mm-10mm zoom lens with DC-IRIS Mount Type Φ14 Video Video Video Compression H.264, H.265 Video bit rate 512kbps~16mbps Resolution Main Stream (3840x2160;2560x1440;1920x1080;1280x720)
Sub Stream (1920x1080,1280x720,704x576,640x480)
third Stream(1280x720,704x576,640x480)Image Setting Saturation, Brightness, Contrast,sharpness HDR,BLC Others OSD, Image Flip，2D/3D DNR，Auto white balance Smart event Intrusion Detection，Line Crossing Detection，Region Entrance Detection，Region Exiting Detection，Loitering Detection Audio Audio Compression G711,G726 bit rate 64Kbps Intelligence Intelligence Smart Feature Smart Edge-Based Analytics:Vehicle Detection，Face&Pedestrian Detection Smart Edge-Based Analytics:Vehicle Detection，Face&Pedestrian Detection，
Face Match（-P），ANPR（-C）Network Network Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMPCompatibility ONVIF,GB28181,SDK Management Intellisight cloud;Intellisight mobile Interface Interface Ethernet RJ-45 (10/100/1000Base-T) Audio 1-ch 3.5mm line out & 1-ch 3.5mm line in Storage Built-in SD card slot, supports Micro SD / SDHC / SDXC card (up to 128G) Alarm 1channel Alarm in & 1channel Alarm out Key ReSet RS485 / General General Power Supply DC12V 1A/POE（IEEE 802.3af） Power Consumption <12W Operating Conditions -30°C to 60°C (-22°F to 140°F) Weather Proof IP66 Certifications CE, FCC, RoHS Weight 1066g (2.35pounds) Dimensions Φ96*269mm (Φ3.78"*10.6") -
