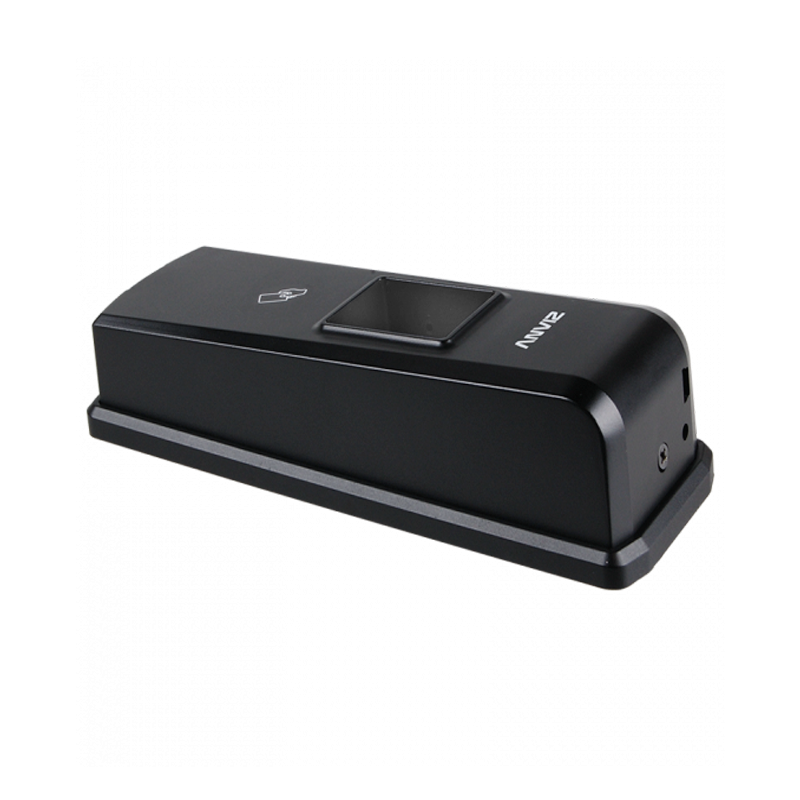

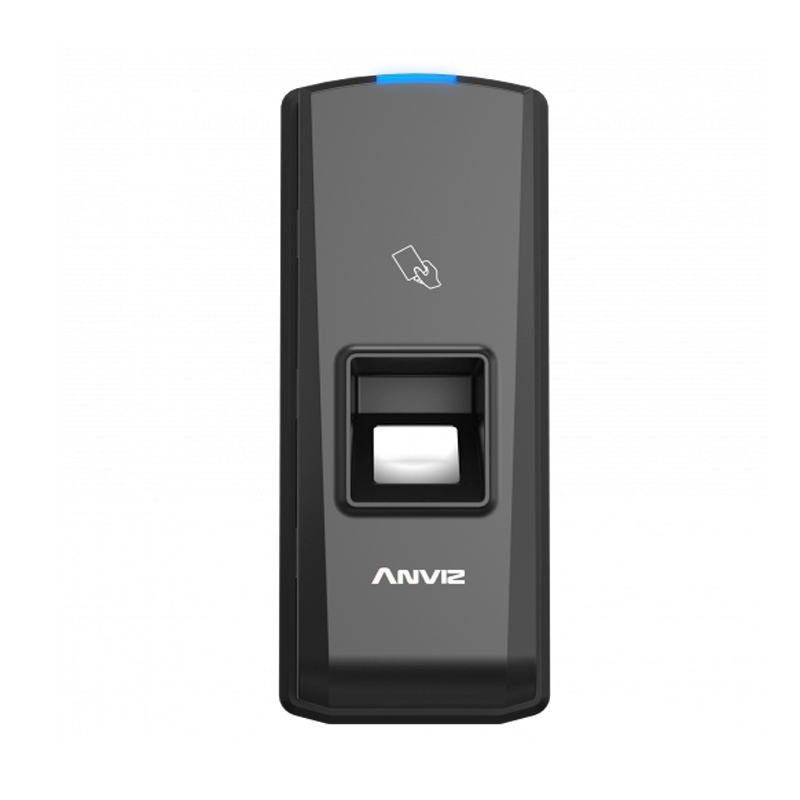

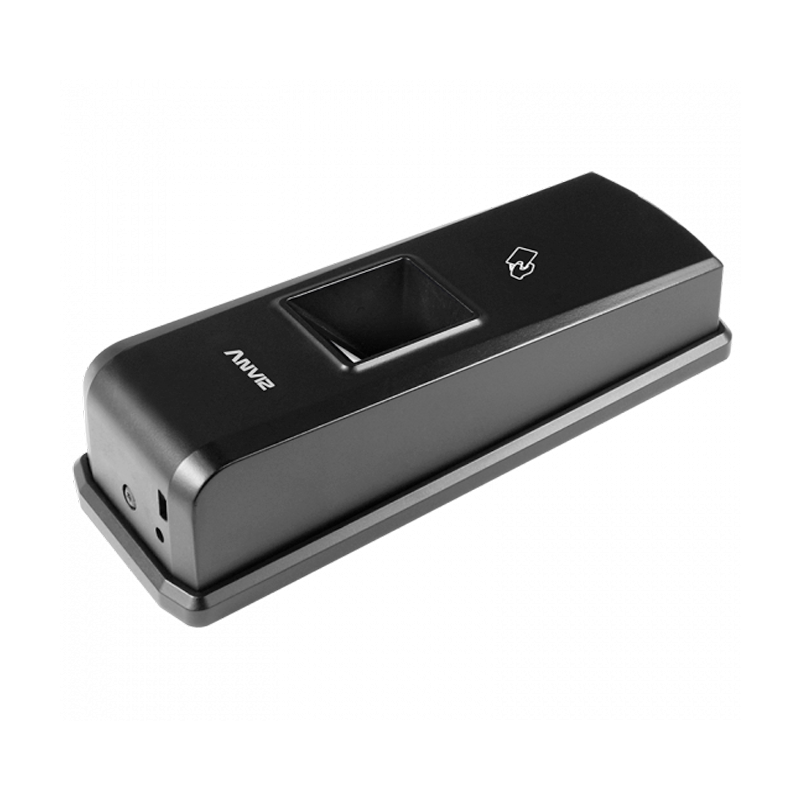

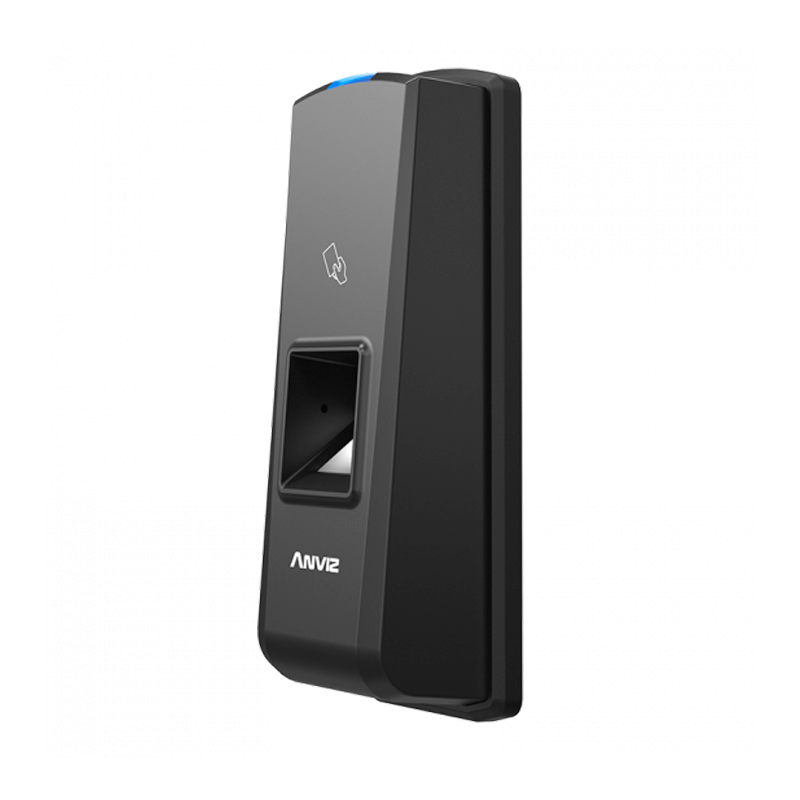

T5S
Fingerprint & RFID Reader
T5S is an innovative fingerprint card reader which fully integrates fingerprint and RFID technology. The very compact design makes it suitable for installation on doorframes. T5S has standard RS485 output to connect with ANVIZ whole access control production to be a dispersed type access control system.T5S can easily update the existing card readers for higher security level of fingerprint and card.
-
Features
-
Small in size and compact in design. Can be easily installed on doorframe
-
New generation fully sealed, waterproof and dustproof fingerprint sensor.
-
Optional RFID , Mifare card module. Compatible with industrial standard
-
Communicate with access controller RS485
-
-
Specification
Module T5 T5S Capacity User Capacity 1,000 / Log Capacity 50,000 / Inferface Comm TCP/IP, RS485, Mini USB RS485 I/O Wiegand26 Out / Features Identification Mode FP, Card, FP+Card Sensor Wake Up Mode Touch Wiegand Protocol <0.5 Sec Software Anviz Crosschex Lite Hardware CPU 32-Bit High Speed CPU Sensor AFOS RFID Card / Standard EM, Optional Mifare Scan Area 22m*18mm Resolution 500 DPI RFID Card Standard EM, Optional Mifare Optional EM Card/Mifare Dimensions(WxHxD) 50x124x34.5mm (1.97x4.9x1.36″) Temperature -30℃~60℃ Power DC 12V -

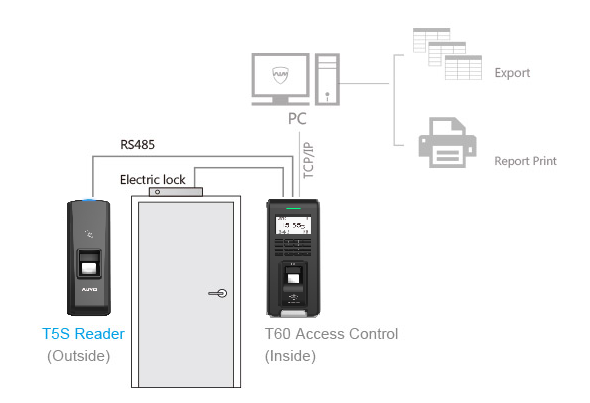

Application
-
Related Download
- Manual 425.2 KB
-
Anviz_T5S_QuickGuide_EN_10.22.2018
10/22/2018
425.2 KB
- Brochure 383.7 KB
-
Anviz_T5S_Catalogue_EN_09.18.2017
07/04/2018
383.7 KB
Related Faq
-
How to Upgrade Anviz Firmware (ST Platform)? 04/16/2020Video for non-screen device Firmware upgrade
Instruction
Video for device with screen Firmware upgrade
Step 1) Get Firmware Upgrade Tool (Download Here)
Connect device to your PC with RJ11 to USB cable or Mini USB cable.
Step 2) Get authorization (Optional)
After connection, swipe the admin card (Enroll Card or Delete Card) in 10 seconds.
ATTENTION ! This step is only for non-LCD screen models!
Step 3) Confirm that the device is connected successfully
You will see a new disk driver icon occurs in your windows file manager.
Step 4) Upgrade in your PC
4.1 Run Firmware Upgrade Tool.
4.2 Update to the newest version of Firmware
-- Click “Browser” to find the corresponding Firmware (*.bin file).
-- Click “Upgrade” to start upgrading, this process may take a few seconds.
4.3 Now you get the last version of Firmware.
Please contact us (support@anviz.com) if you have any problem.
Thanks!
Anviz Technical Support Team
2020-04-16
