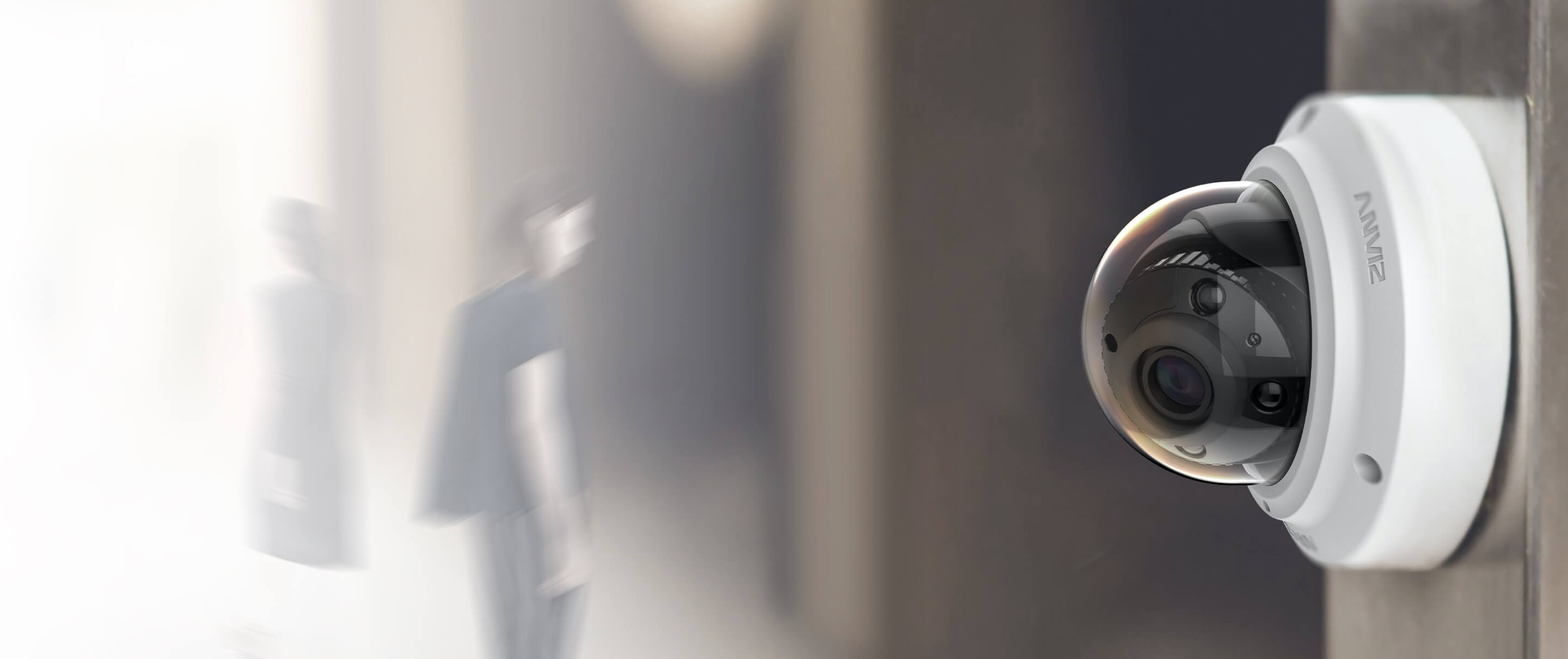

iCam-D48Z is a water-proof and vandal-proof design camera with 8MP/4K Ultra HD resolution and stylish design. The perfect combination of Intelligent infrared-light and star-light function greatly improve the visibility effect in the dark and low-light environments. The 3X motorized lens can clearly auto adjust the images within 40 meters range. The IP66 and IK10 design ensures the flexbile installation in the outdoor and harsh indoor environment. The iCam-D48Z supports standard H.264/H.265 and also the onvif protocol. The edge storage SD card slot can support up to 128GB edge storage. The device has built-in person detection and vehicle detection functions for you to easily get event alarm from the IntelliSight mobile APP.
Vehicle Detection Person Detection| Model |
iCam-D48Z |
|---|---|
| Camera | |
| Image Sensor | 1/1.8" 8 Megapixel Progressive Scan CMOS |
| Max. Resolution | 3840(H) x 2160(V) |
| Shutter Time | 1/12s ~ 1/10000s |
| Minimum Illumination | Color: 0.1Lux @(F1.2, AGC ON) |
| B/W: 0Lux @(IR LED ON) | |
| Day/Night | IR-CUT with Auto Switch/Scheduled |
| WDR | HDR |
| BLC | Support |
| Lens | |
| Mount Type | Motorized Varifocal Lens, Support Remote Focus and Zoom |
| Focal Length | 3.6 to 10mm(14.17 to 39.37") Zoom Lens with DC-IRIS |
| Aperture | F1.5 (W) ~ F2.8 (T) |
| FOV | 99~42°(H) |
| Iris Type | DC-IRIS |
| Illuminator | |
| IR Range | Up to 40m (1574.80") |
| Wavelength | 850nm |
| Audio | |
| Audio Compression | G.711, G.726, AAC-LC |
| Audio Type | Mono |
| Audio Capability | Environmental Noise Filter, Echo Cancellation, Two-way Audio |
| Video | |
| Video Compression | H.264, H.265 |
| Video Bit Rate | 512kbps ~ 16mbps |
| Resolution | Main Stream (3840*2160, 2560*1440, 1920*1080, 1280*720) |
| Sub Stream (1920*1080, 1280*720, 704*576, 640*480) | |
| Third Stream (1280*720, 704*576, 640*480) | |
| Region of Interest (ROI) | 4 Fixed Regions for Each Stream; Target Cropping of Third Stream |
| Image | |
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Autowhitebalance |
| Image Enhancement | Lens Distortion Correction, Defog, 2D/3D DNR |
| S/N Ratio | 39dB |
| Dynamic Range | >74dB |
| Others | OSD, ImageFlip, Picture Overlay |
| Smart Events | |
| Video Analytics | Defocus Detection, Scene Change Detection, Occlusion Detection |
| Smart Events | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Loitering Detection |

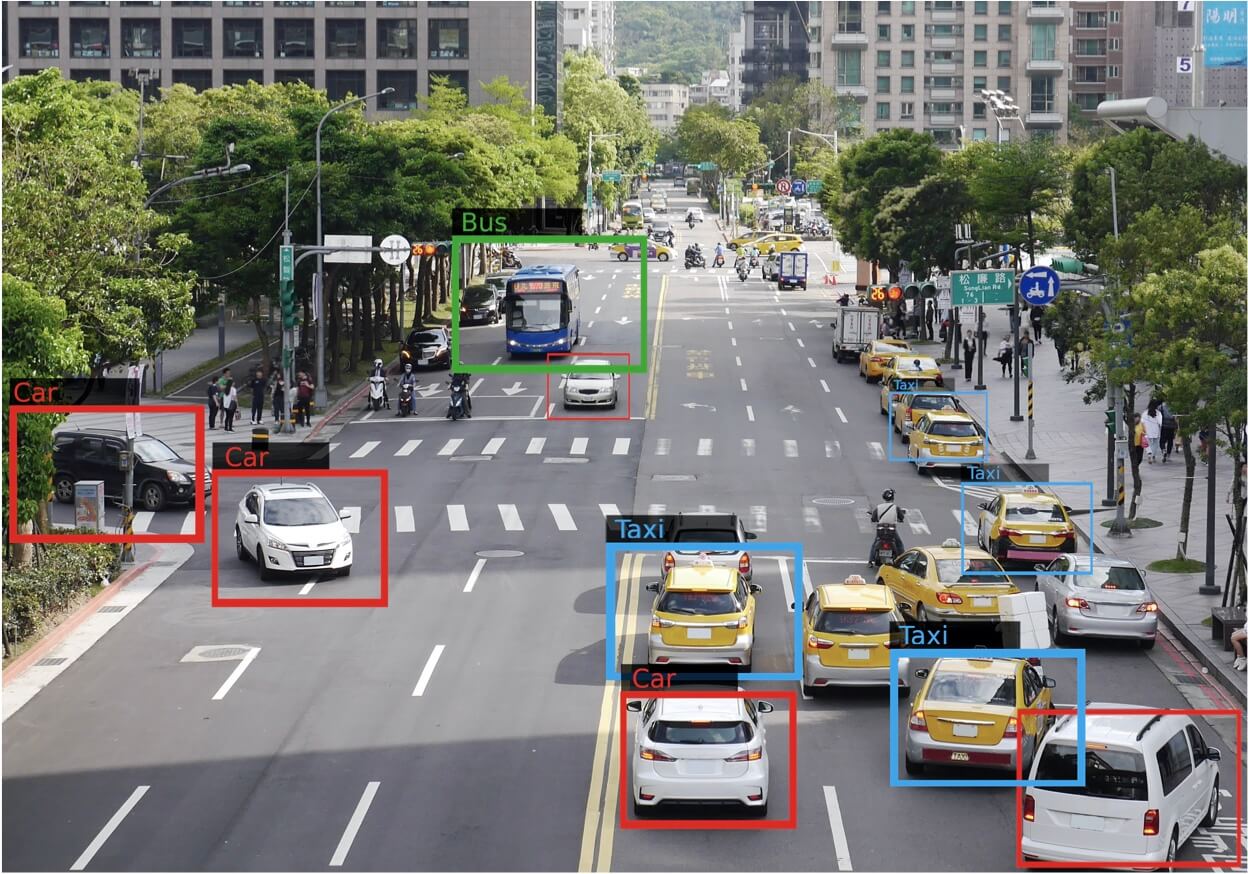

| Deep Learning Events | Vehicle Detection, Face&Pedestrian Detection, Face Match (-P), ANPR (-C) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IPv4, IPv6 |
| Compatibility | ONVIF, GB28181, CGI API |
| Management | Intellisight Cloud Desktop Software, IntelliSight Mobile APP |
| Interface | |
| Ethernet | 1 RJ45 (10M/100M/1000M) |
| Storage | Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB |
| Alarm | 1 input, 1 output |
| Audio | 1 Built-in Mic, External 1 Line in, External 1 Line out |
| Key | Reset Button |
| General | |
| Power Supply | DC12V 1A/POE(IEEE 802.3af) |
| Power Consumption | <12W |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity: 10% to 90% (No Condensation) |
| Weather Proof | IP66 |
| Certifications | CE, FCC, ROHS |
| Weight | 3.5KGS |
| Dimensions | Φ158*110mm (Φ6.22*2.76") |
