MASK or NO MASK
AI deep learning mask-wearing detection
FaceDeep 3 IRT
Smart Face Recognition Terminal
with Body Temperature Detection
- AI Deep Learning
Architecture - Liveness Face
Detection - Cloud
- Mask
Detection - Infrared Thermal
Temperature
Detection
Where to Buy
We'll connect you with a partner in your area
Portenntum de México, S. A. de C. V.
Mexico
http://portenntum.com
alejandro.puente@portenntum.com
81 8625 5331
Sistemas Integrales De Automatizacion, S.A. De C.V.
-
Mexico
- https://www.siasa.com
-
clizama@siasa.com
-
(999) 930 2575
JM SECURITY SYSTEM
-
Dominican Republic
- https://jmsecuritysystem.com
-
jmartinez@jmsecuritysystemcom
-
(809) 876-1601
PT CamarIndah JayaPerkasa
-
Indonesia
- https://www.camarjaya.co.id
-
Echen@camarjaya.co.id
-
+62 82110038828
FaceDeep 3 series are the new AI-based face recognition terminal equipped with a dual-core based Linux based CPU and the latest BioNANO® deep learning algorithm. It supports up to 10,000 dynamic face database and rapidly recognize users within 2M(6.5 ft) in less than 0.3 seconds and customizes alerts and a variety of reporting for no-mask wearing.
Powered by Independent AI Engine and BioNANO Deep Learning Algorithm
- GOPS NPU
600
- Dual-Core
1.0GHz
- Face Recognition Speed
<0.3 S
Powered by Independent AI Engine and BioNANO Deep Learning Algorithm
- GOPS NPU
600
- Dual-Core
1.0GHz
- Face Recognition Speed
<0.3 S
Dual Camera for Liveness Face Recognition
High- Throughput screening (HTS)
Up to 50 people per MINUTE
Body Temperature Detection
( IRT Model Only)
-
Temperature Detection
( IRT Model Only) - High Accuracy at Deviation
<±0.3℃
(0.54℉) - Temperature Range
23℃~46℃
(73℉~114℉) - Temperature Distance
10~20 mm
( 0.39~0.79” )
System Operation Scenario
Facial recognition, body temperature detection and mask-wearing checked by the FaceDeep 3 all at once. After the scan, the information redirects to the administration via both CrossChex App and CrossChex Web software.
Abnormal
System Operation Scenario
Facial recognition, body temperature detection and mask-wearing checked by the FaceDeep 3 all at once. After the scan, the information redirects to the administration via both CrossChex App and CrossChex Web software.
1
2
Abnormal
3
CrossChex System
The cloud solution provide accurate and
convenient remote management.
-
WIFI
-
TCP/IP
-
4G
-
Bluetooth
Easy to adapt to all forms of work conditions
( * Refer to Specification Sheet )
4G (Optional)
(*Refer to Specification Sheet)
it is specifically designed to work consistently in some places without Internet or Wifi
-
WIFI
-
TCP/IP
-
4G
-
Bluetooth
Supports RFID Cards (125kHz EM or 13.56MHz Mifare)
( * Refer to Specification Sheet )
Ergonomic Design for Convenience
Flexible installation to support the extended height range [ 120 - 190 cm（47.24 - 74.80”)] for face recognition
System Configuration Diagram
Flexible communication for WiFi or Lan. Convenient
management for Web-server and PC software.
| FaceDeep 3 | FaceDeep 3 IRT | ||||||
|---|---|---|---|---|---|---|---|
|
product |
 |
 |
|||||
|
Model |
FaceDeep 3 |
FaceDeep 3 Pro |
FaceDeep 3 4G |
FaceDeep 3 IRT |
FaceDeep 3 Pro IRT |
FaceDeep 3 4G IRT |
|
| General | |||||||
| Identification Mode | Face, Card, ID+Password | ||||||
| Face Recognition Distance | 0.5 ~ 1.5m ( 19.69 ~ 59.06” ) | ||||||
| Face Recognition Speed | <0.3 S | ||||||
| RFID Technology | 125KHz EM | 13.56 MHz Mifare | 13.56 MHz Mifare | 125KHz EM | 13.56 MHz Mifare | 13.56 MHz Mifare | |
| IRT(Palm Temperature Detection) | |||||||
| Detection Distance | - | 10~20mm( 0.39~0.79” ) | |||||
| Temperature Range | - | 23°C~46°C ( 73°F~114°F ) | |||||
| Temperature Accuracy* | - | ±0.3°C( 0.54°F ) | |||||
| Capacity | |||||||
| Max Users | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 | |
| Max Cards | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 | |
| Max Logs | 100,000 | ||||||
| Function | |||||||
| Time Attendance Mode | 8 | ||||||
| Group, Time Zone | 16 Access Groups, 32 Time Zone | ||||||
| WebServer | √ | ||||||
| Record Auto Inquiry | √ | ||||||
| Voice Prompt | √ | ||||||
| Clock Bell | √ | ||||||
| Multiple Language | √ | ||||||
| Hardware | |||||||
| CPU | Dual 1.0 GHz | ||||||
| Camera | Dual Camera ( VIS & NIR ) | ||||||
| Scanning Area | Horrizontal：±20° Vertical：±20° | ||||||
| Display | 5" TFT Touch Screen Resolution 640*480 | ||||||
| Smart LED | Support | ||||||
| Dimensions(W x H x D) | 14.6*16.5*3.4 cm 5.75*6.50*1.34” | ||||||
| Working Temperature | -5℃~60℃ 23℉~160℉ | ||||||
| Humidity | 0% to 95% | ||||||
| Power Input | DC 12V 2A | ||||||
| Interface | |||||||
| TCP/IP | √ | ||||||
| RS485 | √ | ||||||
| RS485 | √ | ||||||
| Wi-Fi | √ | - | - | √ | - | - | |
| Wi-Fi + Bluetooth | - | √ | - | - | √ | - | |
| 4G | - | - | √ | - | - | √ | |
| Relay | 1 Relay Out | ||||||
| Tamper Alarm | √ | ||||||
| Wiegand | 1 In / 1 Out | ||||||
| Door Contact | √ | ||||||
| Software Compatibility | |||||||
| CrossChex Standard | √ | ||||||
| CrossChex Cloud | √ | ||||||
Related products
Related Download
- Brochure 10.2 MB
-
Anviz FaceDeep3 Series Brochure
08/12/2022
10.2 MB
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Manual 1.9 MB
-
FaceDeep3_Series_QuickGuide_EN
08/04/2021
1.9 MB
- Manual 286.7 KB
-
Anviz FaceDeep 3 IRT Installation Instructions and Warning Caution EN
06/10/2021
286.7 KB
- Manual 129.8 KB
-
Anviz FaceDeep 3 IRT Temperature Detection Direction Sticker EN
06/10/2021
129.8 KB
Related Faq
-
Created by: Chalice Li
Modified on: Wed, June 2nd 2021 at 17:44
Upgrade the firmware for the FaceDeep 3 /FaceDeep 3 IRT devices via the USB Flash Drive. Please prepare the USB Flash Drive with FAT format and capacity less than 8GB.
The detail steps as below:
Step 1: Please download the latest firmware of FaceDeep 3/ FaceDeep3 IRT from this link:
https://www.dropbox.com/s/mac3xmf6eil7mdn/deep3.aup?dl=0
Step 2: Copy the firmware file to USB Flash Drive and plug the USB Flash Drive to the device USB port.
Step 3: Setup FaceDeep 3 Series to firmware upgrade mode.
Enter into device Main menu, click Settings and select the Update.
Click “Start” to upgrade the firmware. (Please make sure the USB Flash Drive already plug into device)
After upgrade the firmware please restart the device and check the Kernel Ver. from Basic Info is gf561464 to ensure the upgrade is successful. If not, please check the opertaing steps and upgrade the firmware again.
Please mail to support@anviz.com if you have any questions !
Anviz Technical Support Team -
How to Enroll a User on FaceDeep 3? 06/11/2021
Created by: Chalice Li
Modified on: Tue, June 1st 2021 at 10:20

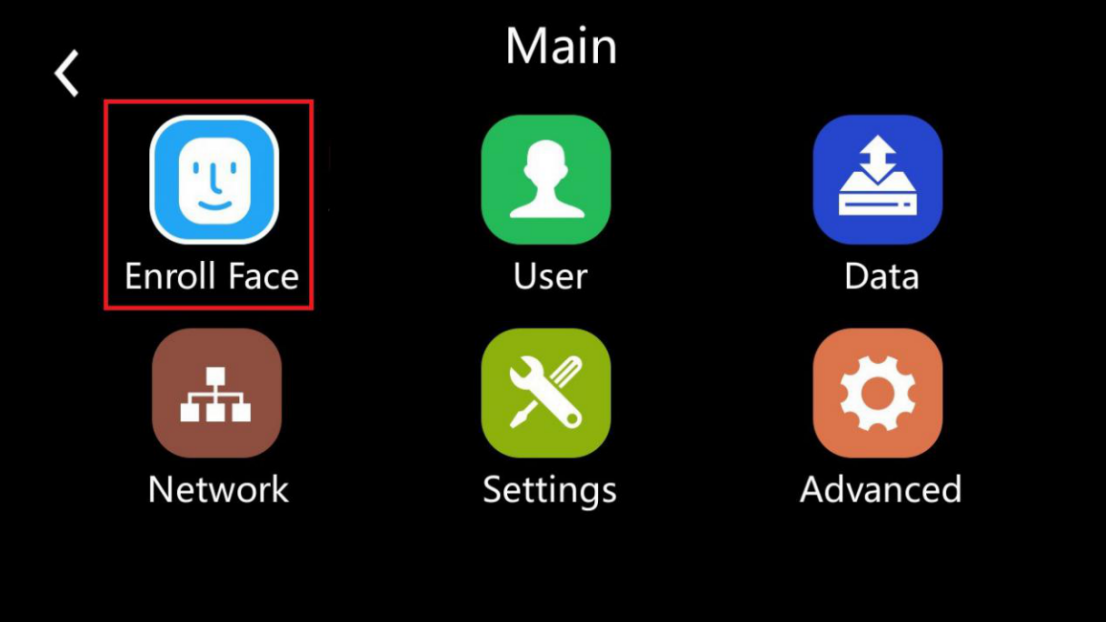

There are two ways to register users. You can do the quick enrollment by enrolling face(A). If you want to do the detailed enrollment, please go to the User, and add user(B) under this menu.

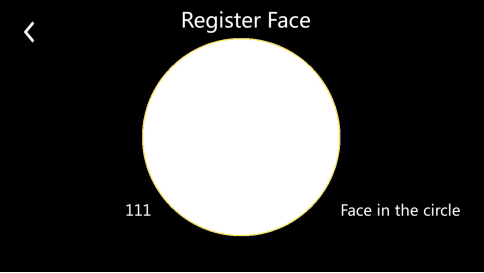

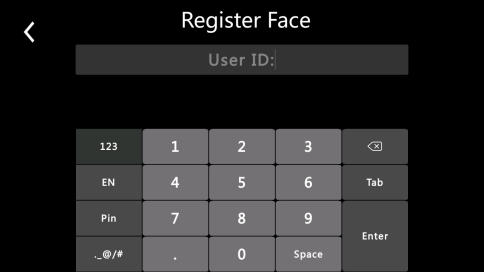

A.) Enroll face

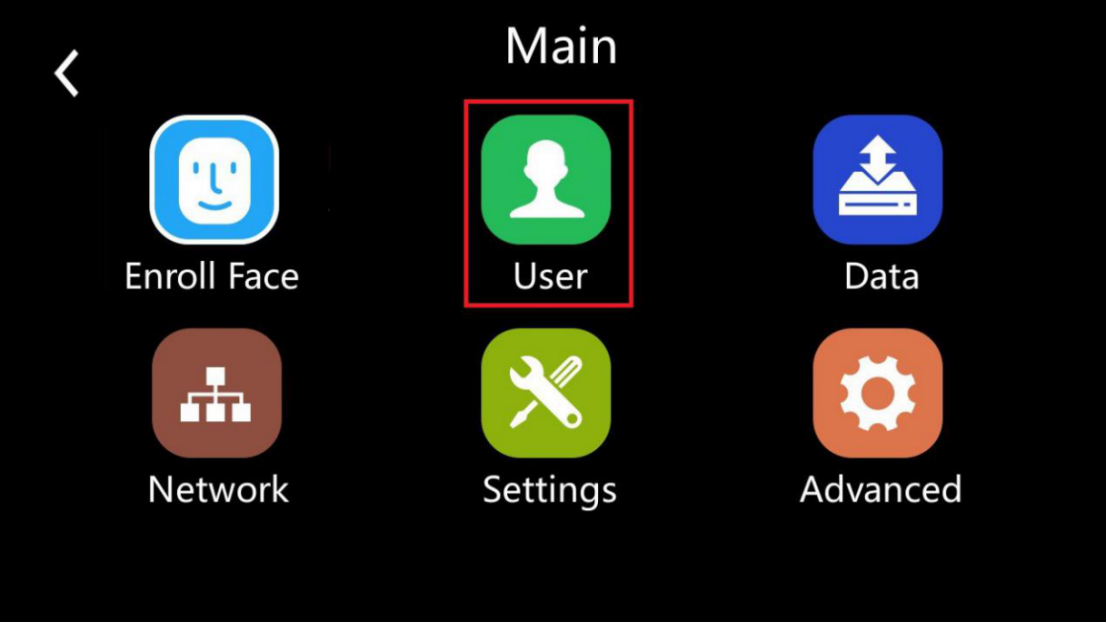

B.) Add user
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team -
Created by: Chalice Li
Modified on: Fri, June 4th 2021 at 11:58

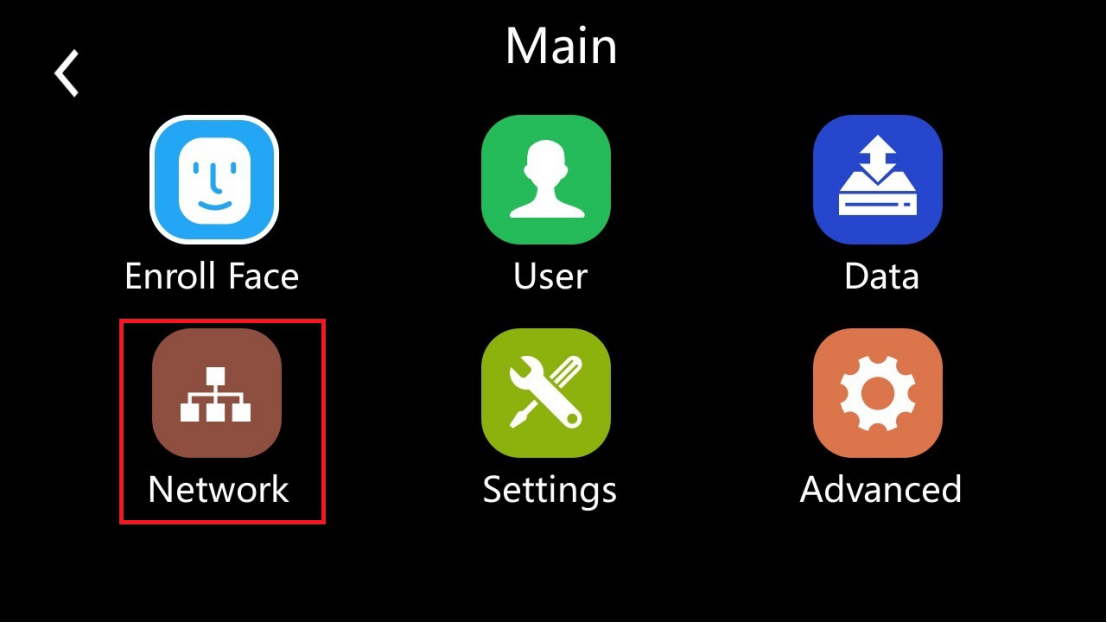

Step1: Enter the network menu from the main menu
Step2: Set WAN mode as WIFI
Step3: Go to the Wifi menu, finish your wifi IP mode setting and search your wifi.
Step4: Use the CrossChex software to add the device. You can either search the device or manually input the device IP address in the LAN method under the device setting.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
Created by: Chalice Li
Modified on: Tue, June 1st 2021 at 16:12
To downgrade or upgrade the special firmware for the FaceDeep 3 /FaceDeep 3 IRT devices, you need to enforce the upgrade of the FaceDeep 3 Series by USB Flash Drive.
The detail steps as below:
Step 1: Please prepare the USB Flash Drive with FAT format and capacity less than 8GB.
Step 2: Copy the firmware file to USB Flash Drive and plug the USB Flash Drive to the FaceDeep 3’s USB port.
Step 3: Setup FaceDeep 3 Series to enforcing firmware upgrade mode.
Enter into device Main menu, click Settings and select the Update.
Please quick click the “USB Disk” icon in the FaceDeep 3 screen with (10-20 times) till popup the Update Password input interface.
Input the “12345” and click “Enter” to Forced upgrade mode! Click “Start” to upgrade the firmware. (Please make sure the USB Flash Drive already plug into device.)
After upgrade the firmware please restart the device and check the Kernel Ver. from Basic Info is gf561464 to ensure the upgrade is successful. If not please check the opertaing steps and upgrade the firmware again.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team -
Created by: Felix Fu
Modified on: Wed, June 3rd 2021 at 20:44
Please make sure the Anviz device has already connected with the internet and linked with a CrossChex Cloud account before you connect the device to CrossChex Cloud System. If you don't know how to make the device online, please check the FAQ on how to connect the device on FaceDeep 3.
Once the network setting is all good, we can proceed with the cloud connection setup.

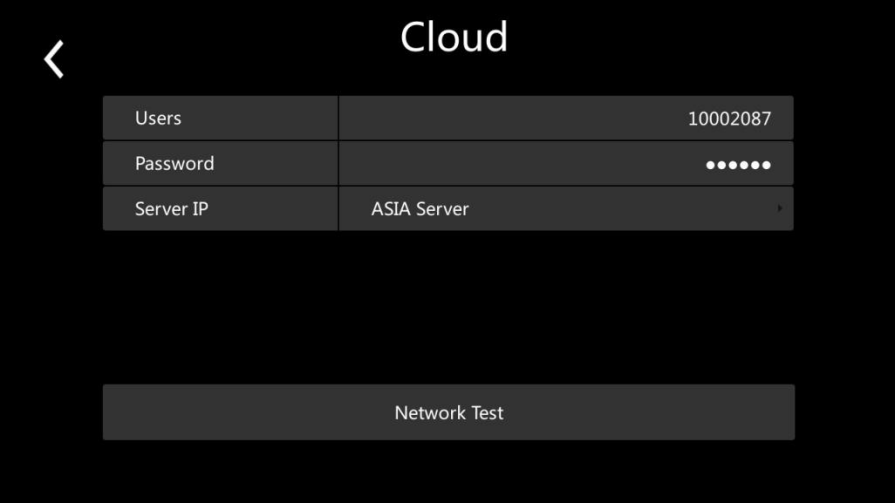

Step1: Go to the device management page (put user:0 PW: 12345, then ok) to select network.
Step2: Choose Cloud button.
Step3:Input User and Password which is the same as in the Cloud System, Cloud Code, and Cloud Password.
Note: You can get your account information from your cloud system as below picture, cloud code is your account id, cloud password is your account password.

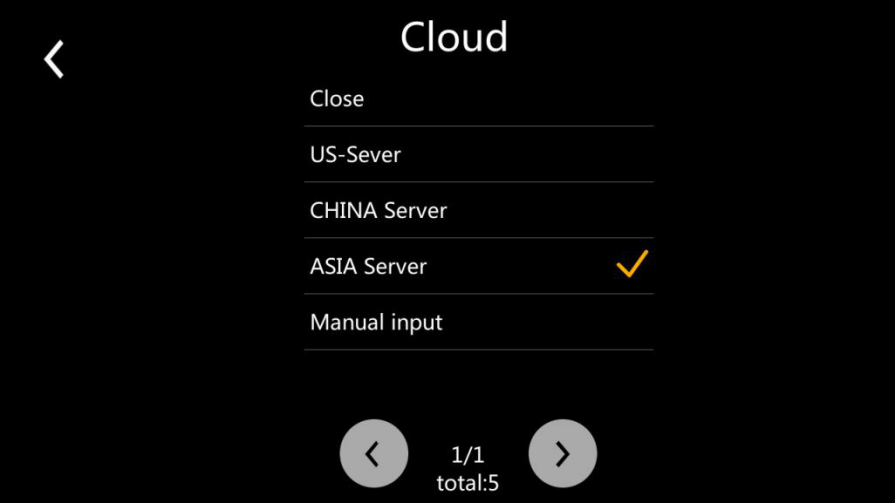

Step4: Select the server
US - Server: Worldwide Server: https://us.crosschexcloud.com/
AP-Server: Asia-Pacific Server: https://ap.crosschexcloud.com/
Step5: Network Test
Note: After the device and CrossChex Cloud are connected, the
on the right corner Cloud logo will disappear;
Once the device connects with CrossChex Cloud successfully, the device icon will be lit up.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team -
Created by: Chalice Li
Modified on: Fri, June 4th 2021 at 15:58

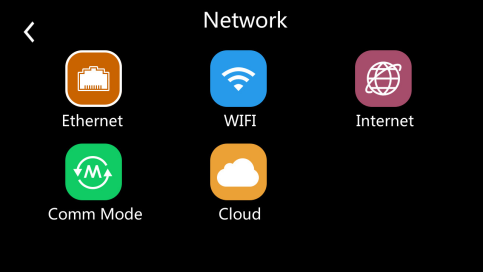

Step1: Enter the network menu from the main menu

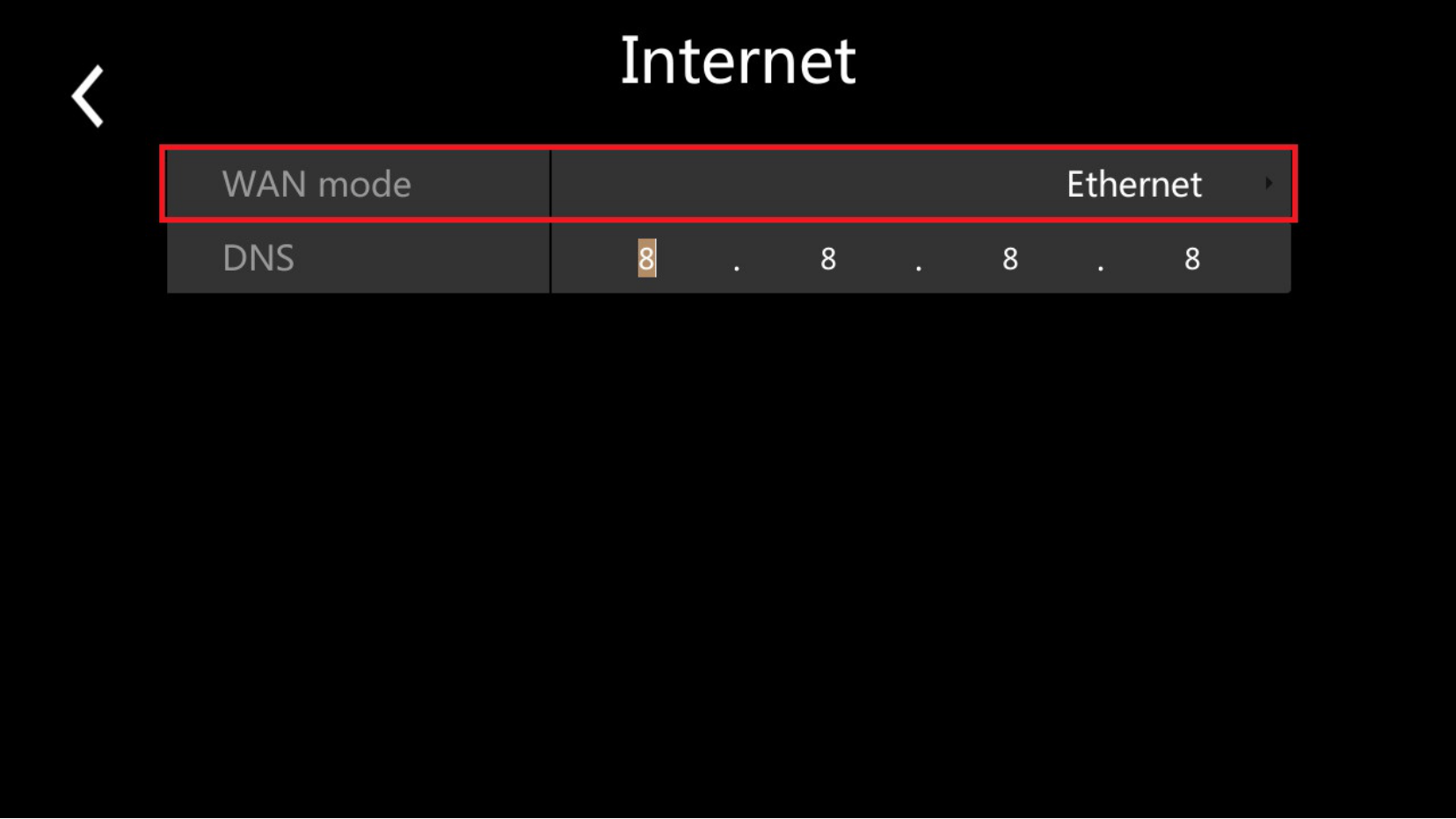

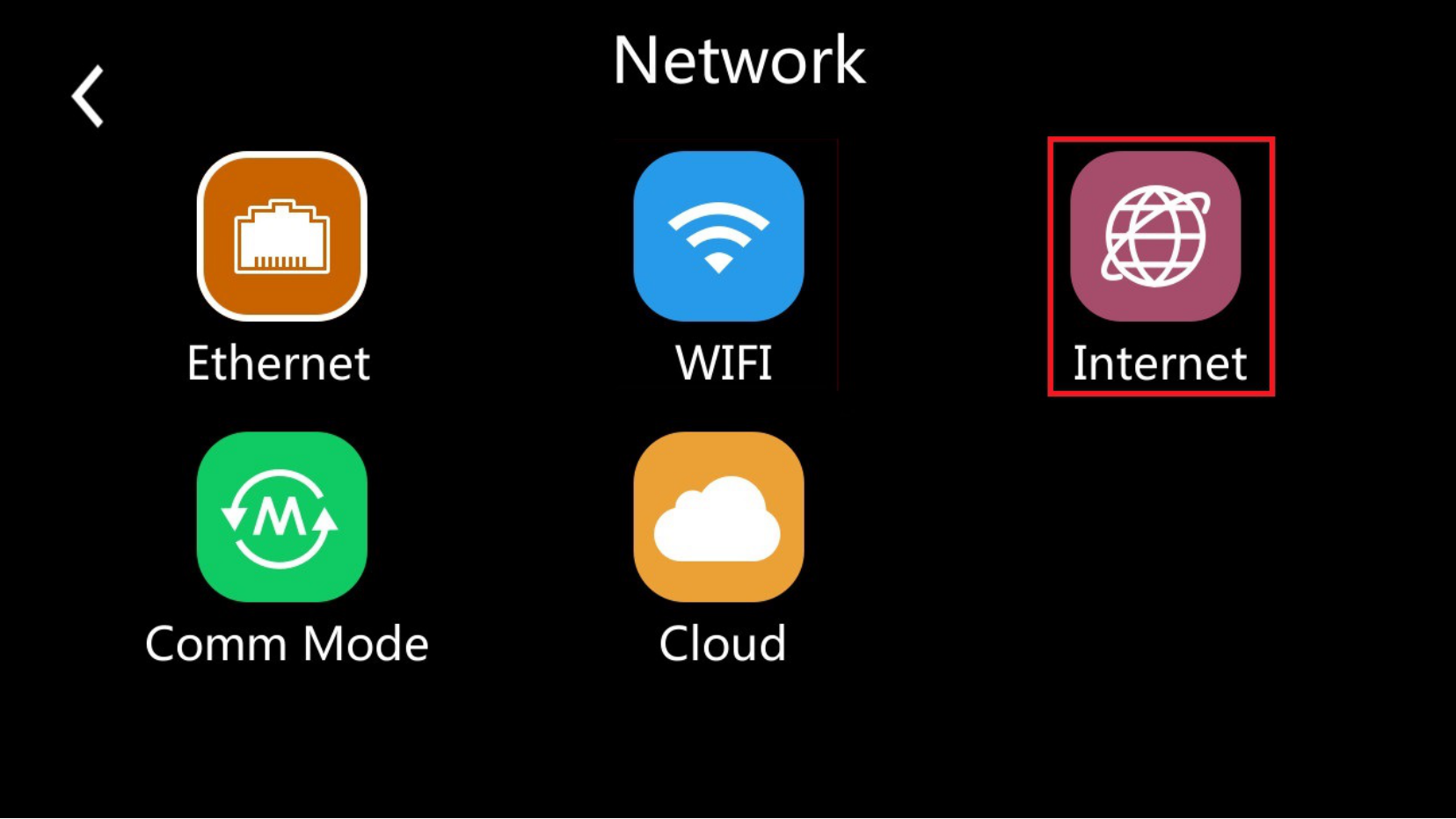

Step2: Set WAN mode as Ethernet
Step3: Go to Ethernet menu, finish your Ethernet ip mode setting，DHCP or static depends on the local network setting.
Step4: Use the CrossChex software to add the device. You can either search the device or manually input the device IP address in the LAN method under the device setting.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
How to Check Records in FaceDeep 3? 06/11/2021
Created by: Chalice Li
Modified on: Fri, June 4th 2021 at 16:58
When an employee performs a clock-in or clock-out on the device, it will display below the status interface with the punch time. Employees can select the function key which is pointed by red arrow and view records.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
How to Enable Mask Detection? 06/11/2021
Created by: Chalice Li
Modified on: Fri, June 7th 2021 at 17:58

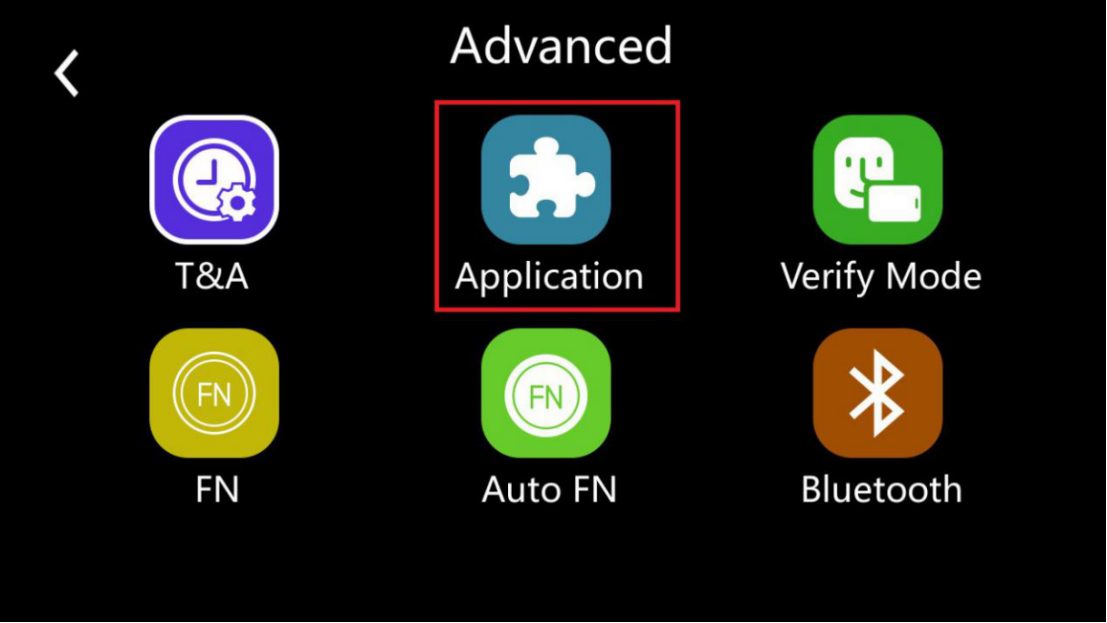

Step1: Go to the application menu through the advanced menu

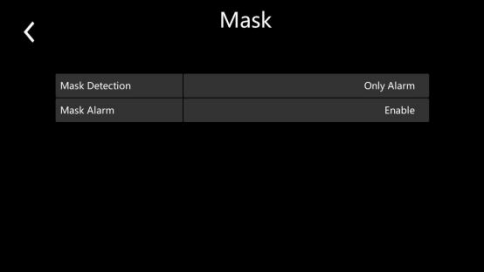

Step2: Go to the Mask menu
Step3: Mask detection function can be enabled under this menu. The admin can set mask detestion function as only alarm or access control purpose.
Note: You can also configure an alarm trigger in mask menu.
Please mail to support@anviz.com if you have any questions !
Anviz Technical Support Team
-
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 17:58
Step1: Go to the application menu through the advanced menu
Step2: Go to the thermometry menu
Step3: Set fever alarm in the temperature menu
Step4: Set mask alarm in the mask menu
Please mail to support@anviz.com if you have any questions !
Anviz Technical Support Team
-
Can I Screen Visitors on FaceDeep 3 IRT? 06/11/2021
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 17:58
Yes, our FaceDeep3 IRT has the visitor mode, the visitors can be granted access in this mode with the normal temperature and using mask according to the configuration you choose. Below is the guide, how to switch the work mode?
Step1: Go to the application menu through the advanced menu
Step2: Go to the thermometry menu
Step3: Get in the work mode
Step4: The work mode can be switched in this menu
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 16:58
Please refer to our installation guide to see the wiring instructions to connect FaceDeep 3 Series with access control systems. https://www.anviz.com/file/download/6565.html
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
Can I Install FaceDeep 3 on Outdoor Areas? 06/09/2021
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 16:58
Our FaceDeep3 is not a waterproof device, we don’t suggest customer to install it at any outdoor areas.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 16:58
Once your face is enrolled, you don’t need touch the device to be recorded. You can enroll your face by the device Menu or by the web server, CrossChex Standard or CrossChex Cloud.
All records will be automatically saved in the device, the maximum can reach up to 100,000 logs.
Please mail to support@anviz.com if you have any questions!
Anviz Technical Support Team
-
How Accurate Is The Temperature Sensor? 06/08/2021
Created by: Chalice Li
Modified on: Mon, June 7th 2021 at 16:58
Our FaceDeep3 IRT has the high accuracy sensor, the absolute error is smaller than +/- 0.3ºC (0.54ºF ).
Please mail to support@anviz.com if you have any questions !
Anviz Technical Support Team
Related News
Related Product
FacePass 7 IRT
Face Recognition with Thermal Temperature Detection Terminal
FaceDeep 3
AI Based Smart Face Recognition and RFID Terminal
FacePass 7 Pro
Smart Face Recognition and Infared Thermal Temperature Detection Terminal
FaceDeep 5
AI Based Smart Face Recognition and RFIDTerminal
FaceDeep 5 IRT
AI Based Smart Face Recognition Terminal with RFID and Temperature Screening Function
