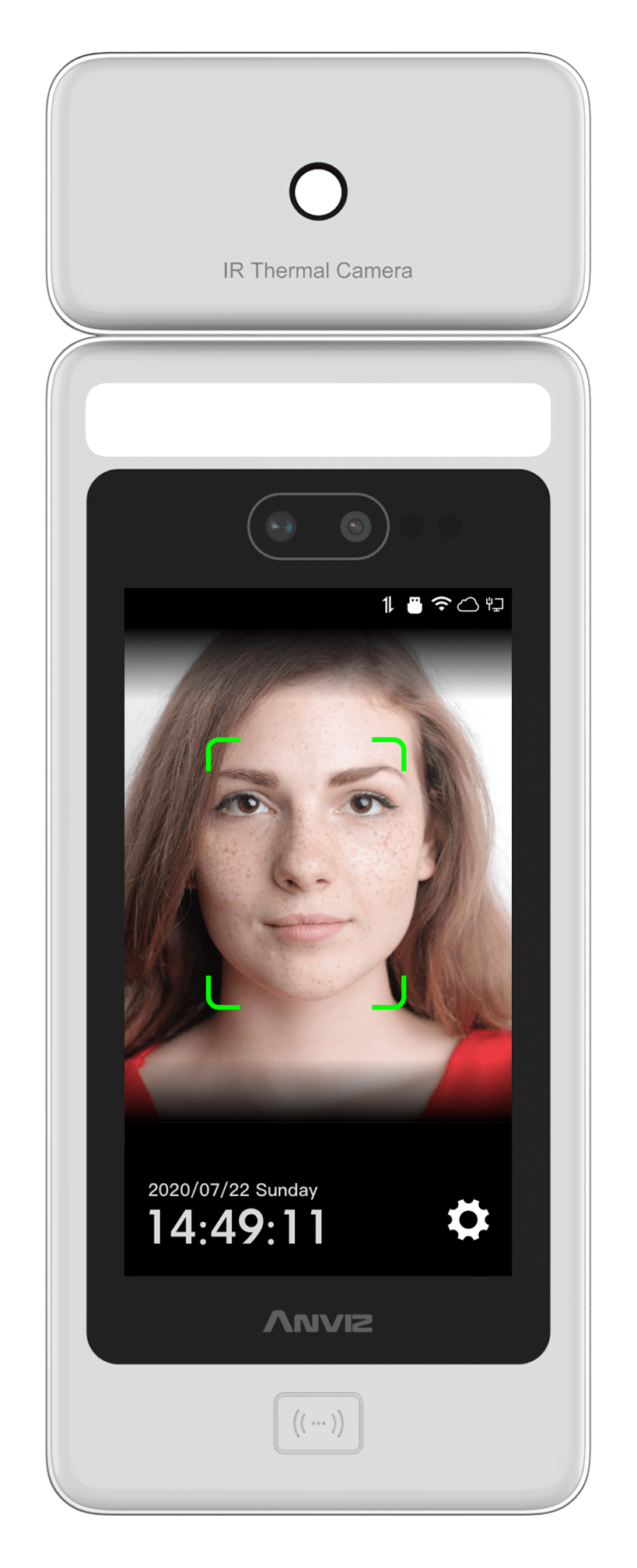

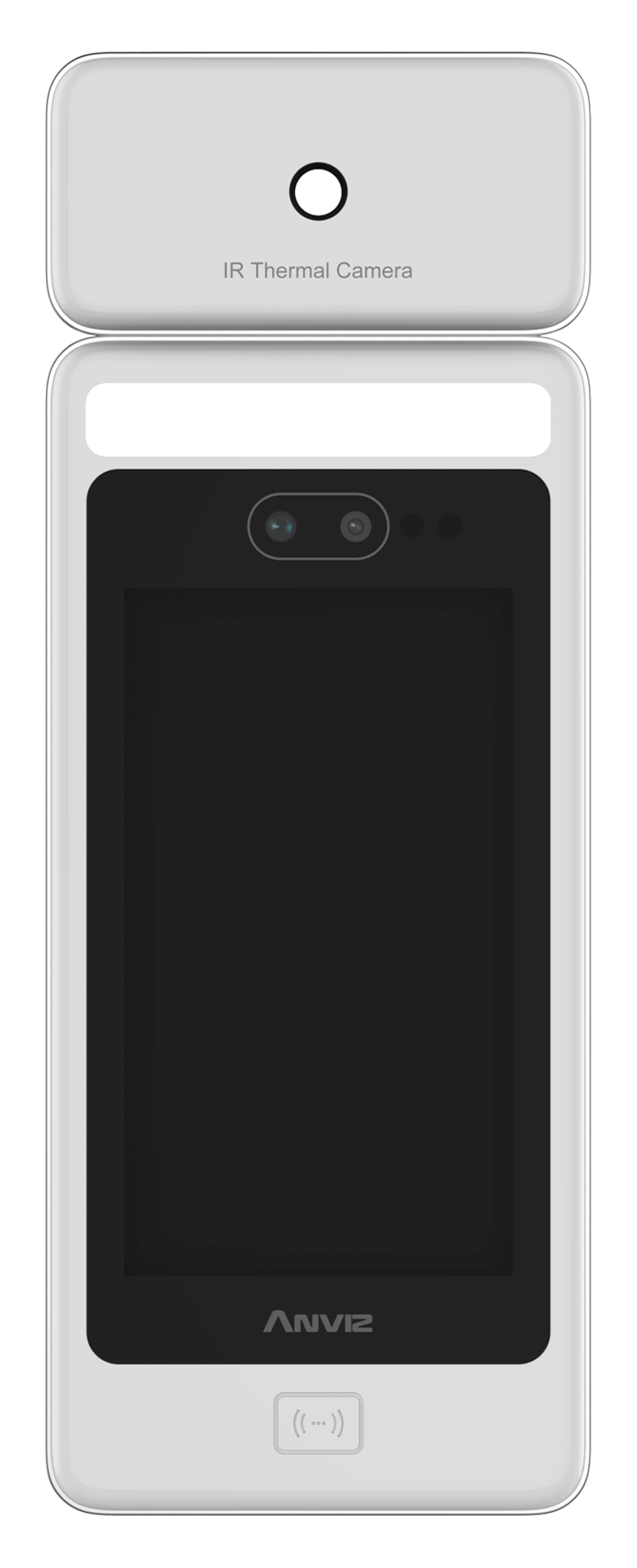

FaceDeep 5 IRT is a new AI-based face recognition and temperature screening terminal equipped with a dual-core Linux-based CPU and the latest BioNANO ® deep learning algorithm.

Combined by the multispectral imaging technology through an infrared light camera and a visible light camera to ensure live face detection function .

  • AI Deep Learning Engine
  • 50,000 Users
  • Wide Adoption
  • Live Face Detection
  • Temperature Screening
  • Wireless Communication

Powerful CPU Embedded with BioNano® Deep Learning Algorithm

  • Linux Based

  • Max. Users 50,000

  • 1GHz Dual-Core

  • Linux Based

  • Max. Users 50,000

  • 1GHz Dual-Core

Powerful CPU Embedded with BioNano® Deep Learning Algorithm

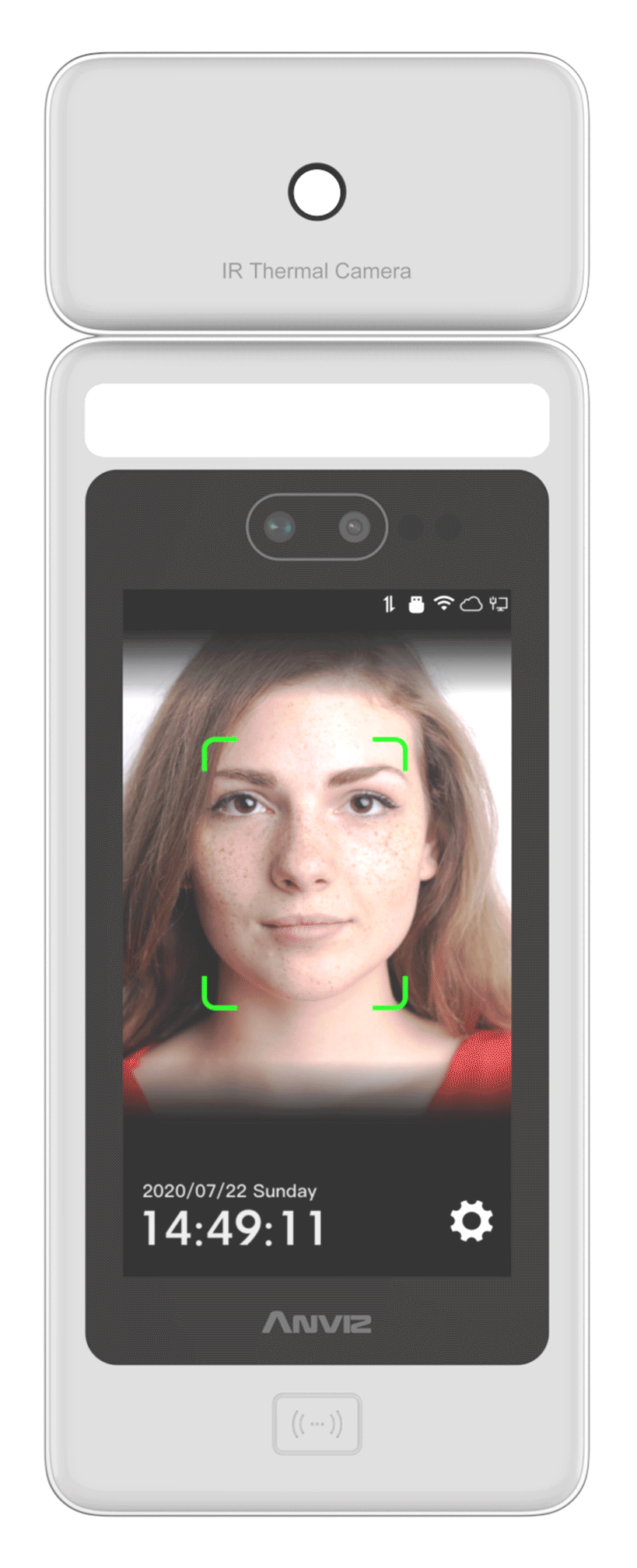

Dual Camera for Live Face Detection

Anviz’s Dual Camera technology enable IR and visual face recognition with unique deep learning algorithm to achieve the high accuracy and identify fake faces by photos or images.
  •

    0.01Lux

  •

    120DB

  •

    1080P

  • Photo
  • Video
  • Photo
  • Video

Dual Camera for Live Face Detection

Anviz’s Dual Camera technology enable IR and visual face recognition with unique deep learning algorithm to achieve the high accuracy and identify fake faces by photos or images.

  •

    0.01Lux

  •

    120DB

  •

    1080P

  • Wide Adoption for Various Conditions

    With the verification of over one million faces around the world, FaceDeep has become one of the most accurate face recognition terminals suitable for various environment and conditions.

    • Makeup
    • Hairstyle and Beard
    • Expression Changes
    • Glasses
    • Hat

    Masks or Not

    AI Deep Learning to Detect Users Wearing

  •

Mask or Not

AI Deep Learning to Detect Users Wearing

  • 2S
    Speed Identification
  • Limited
    The Angle
  • Narrow
    Range Identification

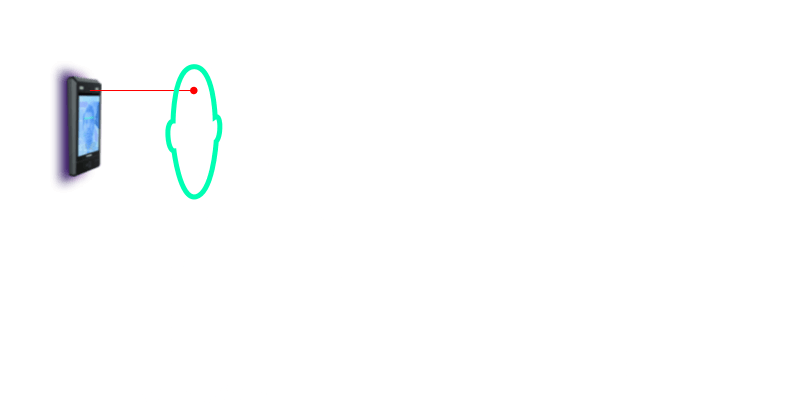

Thermographic

VS

Thermopile

Temperature screening with
thermographic technology
(32x32 pixels)

More accurate and faster to catch up
than others with thermopile
technology (single point)
  • 0.2S
    Speed Identification
  • Flexible
    The Angle
  • Wide
    Range Identification

Thermographic

VS

Thermopile

Temperature screening with
thermographic technology
(32x32 pixels)

More accurate and faster to catch up
than others with thermopile
technology (single point)

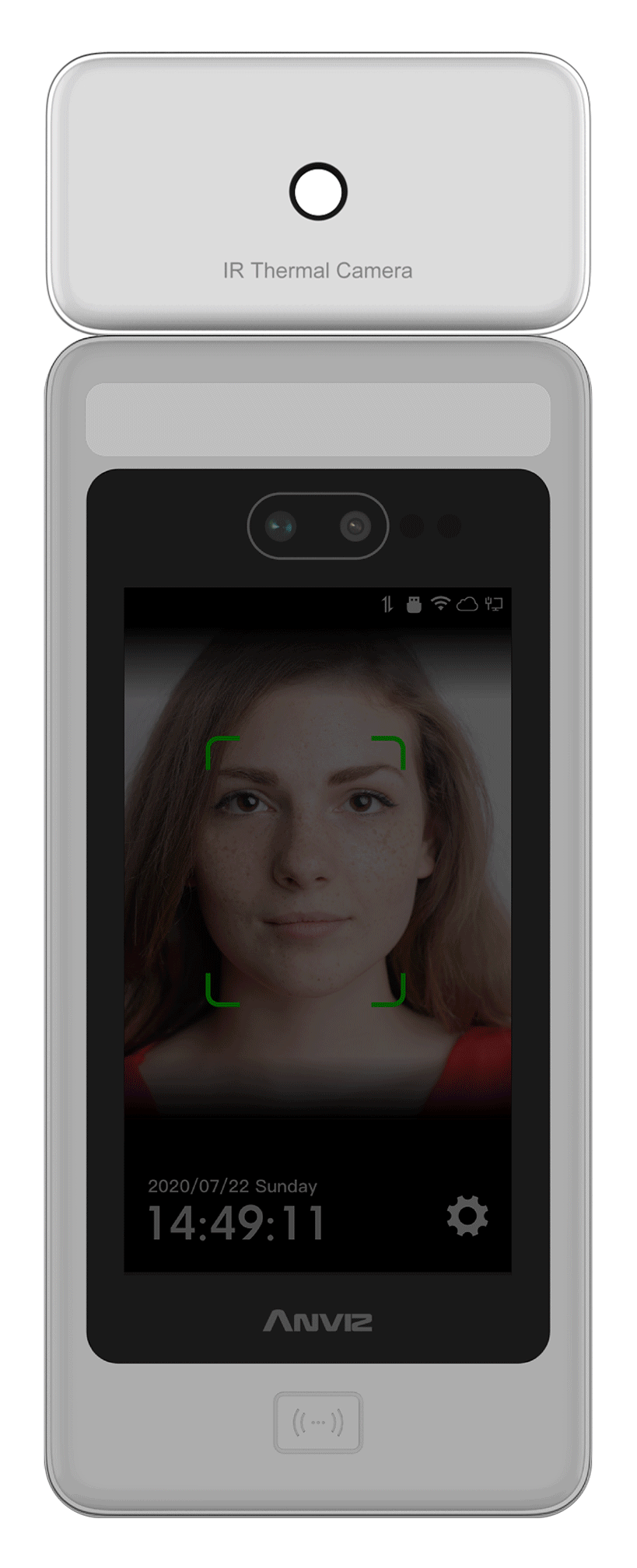

IR Thermal Cameras

  • Temperature Range

    -10°C~50°C

  • Deviation

    < ±0.3°C

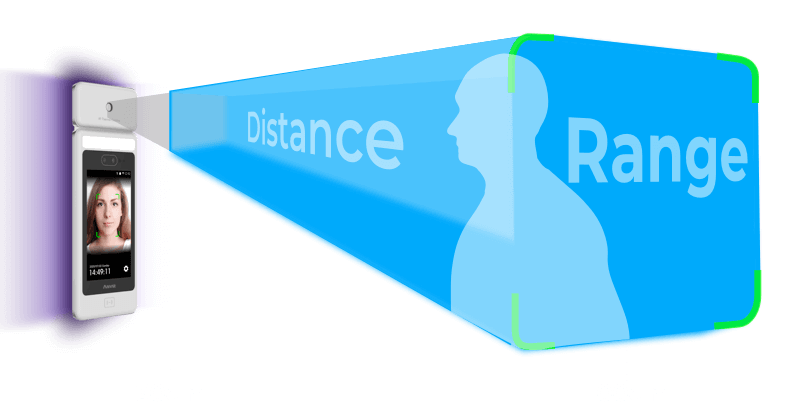

  • Temperature distance

    40cm~100cm

Thermopile

  • 2S

    Speed Identification
  • Linited

    The Angle
  • Narrow

    Range Identification

Thermographic

  • 0.2S

    Speed Identification
  • Flexible

    The Angle
  • Wide

    Range Identification

How it works

1

1.Measure skin temperature at the door

Measure skin temperature at the door

within range mask
within range no mask
Higher than threshold mask
2

2.Display whether the measured skin temperature is higher than preset threshold

Display whether the measured skin temperature is higher than preset threshold

3

3.Trigger alarm & notification to admin

3.Trigger alarm & notification to admin

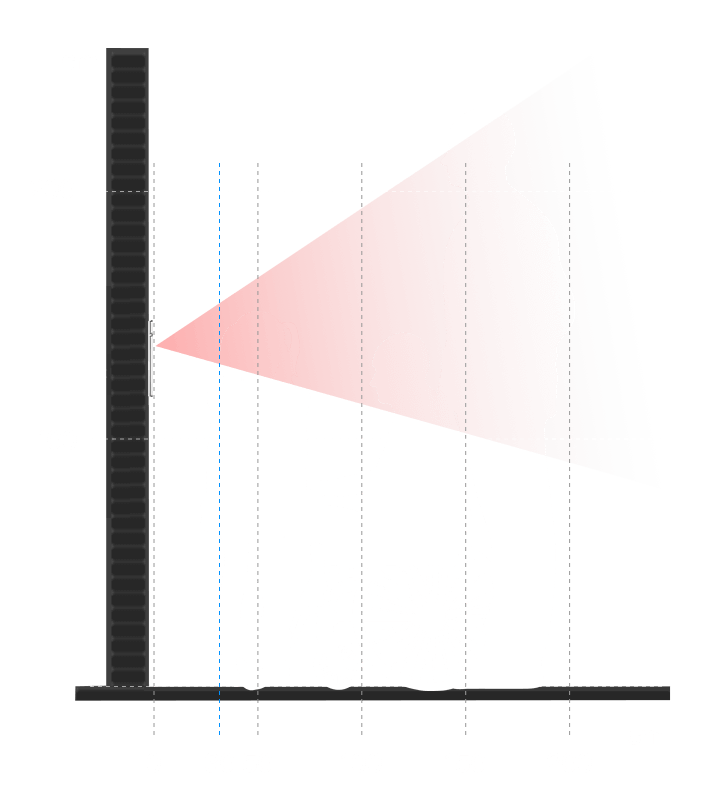

Best-in-class
Ergonomics

The ergonomics design ensures an easy installation and can adopt different heights of people.

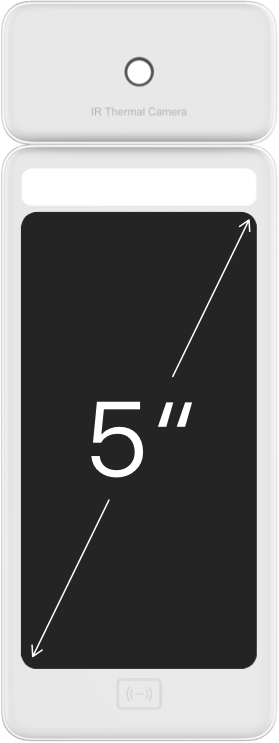

IPS Full View Screen

  • Wide Angle 178°
  • IPS screen

5” HD
Full View IPS Screen

125Khz EM &
13.56Mhz Mifare DESfire

Best-in-class supported with dual frequency RFID cards, eg.

Enhanced Device Security with Anti-tamper Module

Built with anti-static design and all its security and safety enhancement

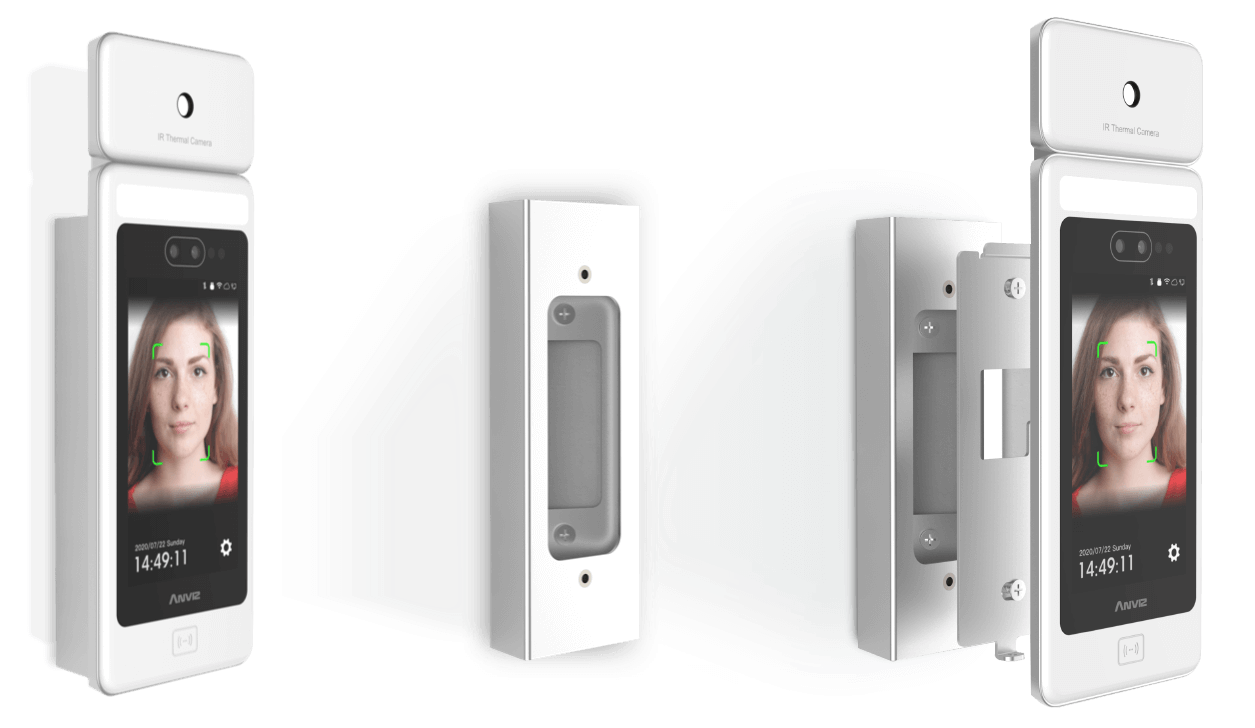

Robust Device with Zinc Alloy back hell, with multiple mounts options for installation

More Mounts, More Applications

  • Desktop Mount
  • Turnstile Mount

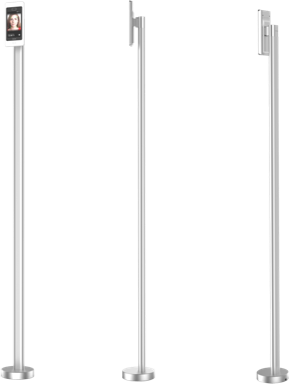

  • Station Mount
  • Corner Mount
    (For High Traffic Sites)
  • Hang on ceiling

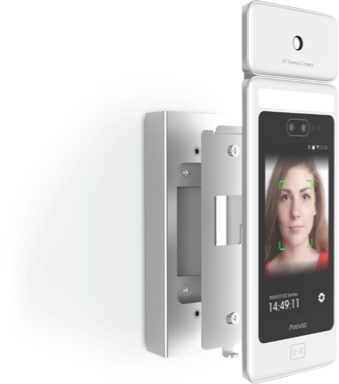

Corner Mount

For High Traffic Sites

  • Ultra-Wide Viewing IPS HD Screen

    Ultra-wide viewing angle IPS HD LCD screen gives users the best interactive experience

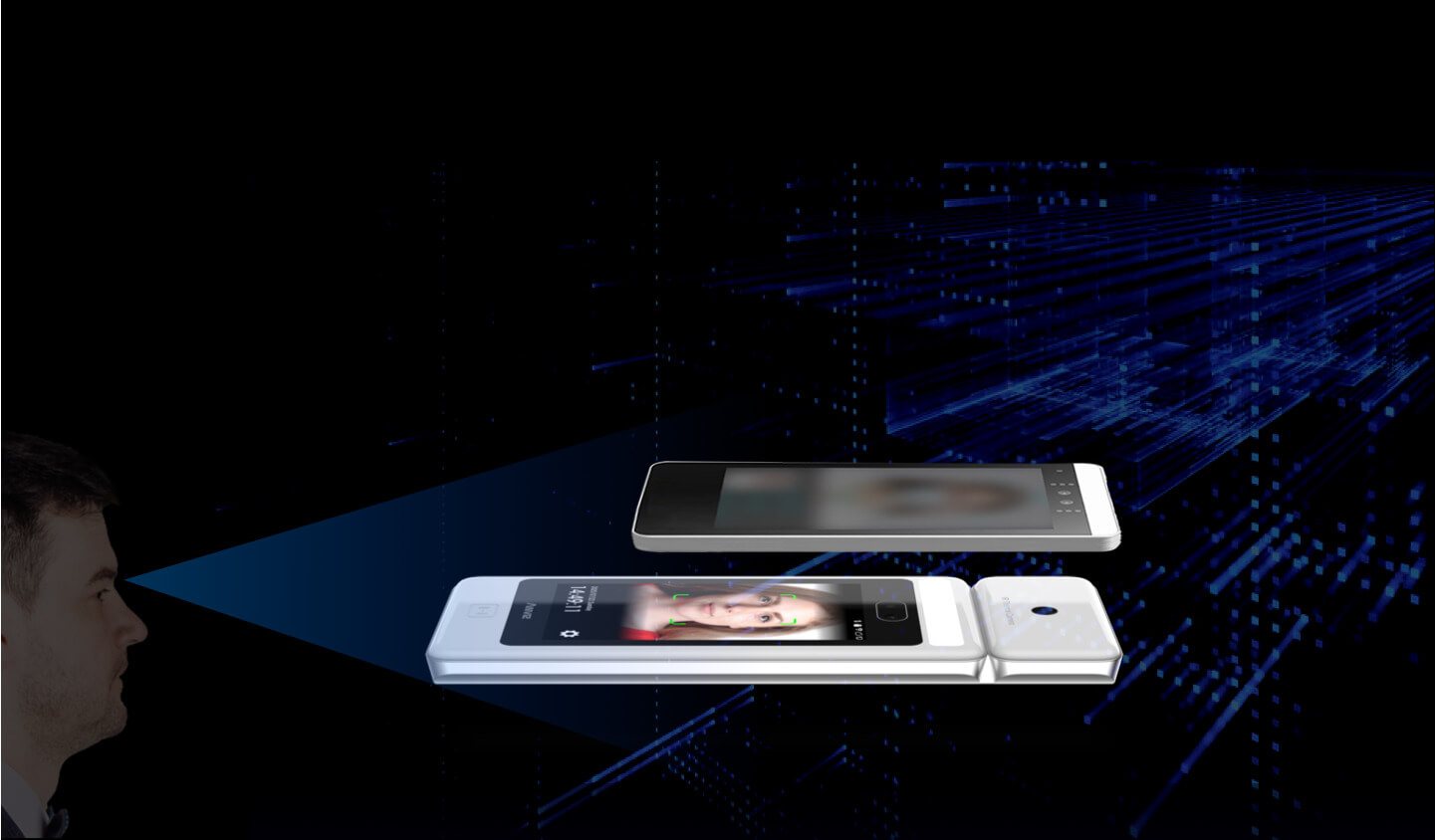

  • Ultra-slim design

    Ultra-slim design reaching below 1CM thickness can perfectly fit various installation conditions

  • Smart LED Fill Light

    Smart LED light based on motion detection and auto-adjust with light environment to lower the consumption of the terminal

  • Dual HD Camera

    Infrared and visible light dual HD cameras to achieve accurate and quick identification and live face verification

  • RFID Card Module

    Compatible with EM cards, MIFARE 1K/4K cards, Mifare Desfire cards, and mobile NFC

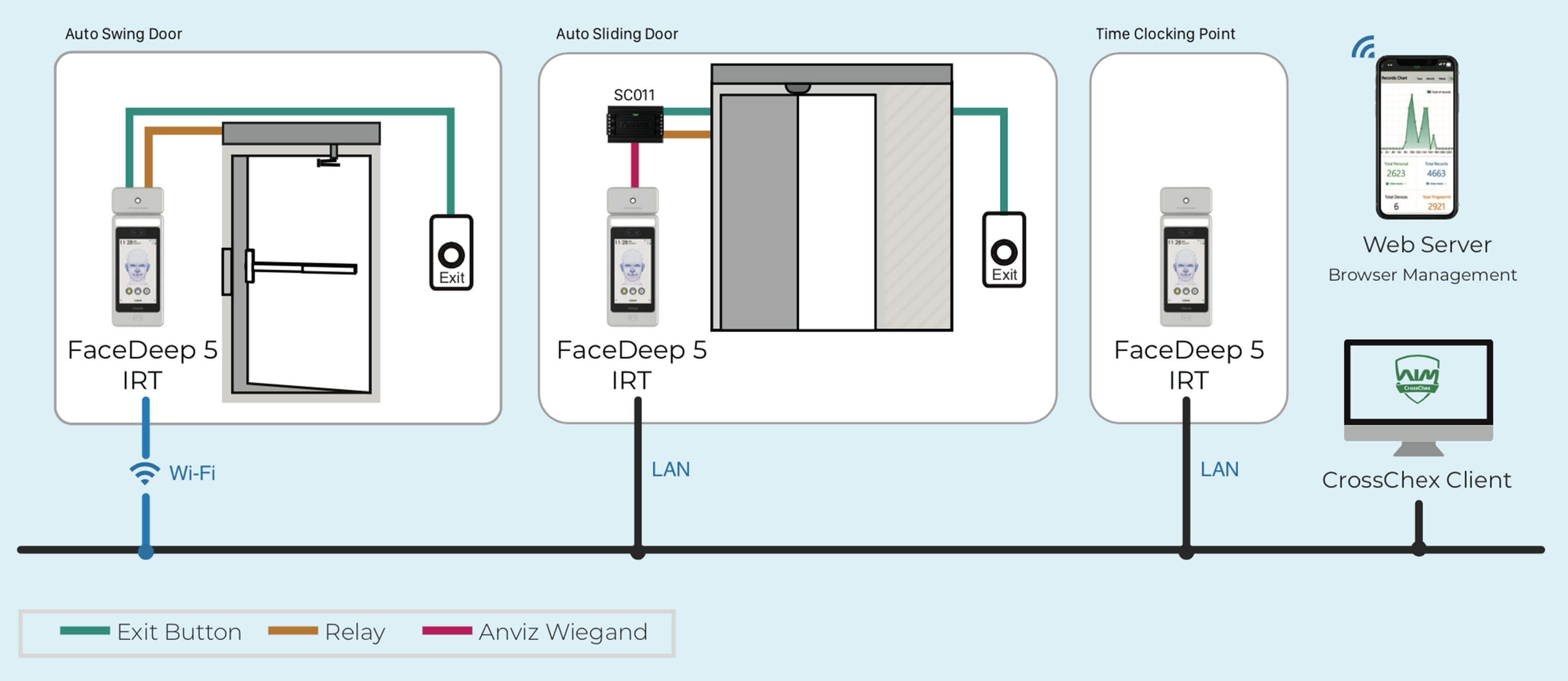

System Configuration Diagram

Flexible communication for WiFi or Lan. Convenient management for Web-server and PC software.

FaceDeep 5 Touchless Access Control Smart Face Recognition Terminal More Convenient than Ever

GET A FREE QUOTE

We look forward to speaking with you soon!

  • 0   Words

Applications

  •

    Corner Mount

    (For High Traffic Sites)

  •

    Turnstile Mount

  •

    Desktop Mount

  •

    Hang on Ceiling

  •

    Station Mount

  •

    Surface Wall Mount

Specifications

Model

FaceDeep 5

FaceDeep 5

FaceDeep 5 IRT

FaceDeep 5 IRT

Capacity

Max.User

50,000

Max.Card

50,000

Max.Log

100,000

Interface

Communication

TCP/IP, RS232, Wi-Fi

I/O

Relay Output, Wiegand Output, Door Sensor, Switch

Feature

Identification

Face, Password, RFID Card

Identification Speed

<300ms

Protection

IP65

Embedded Webserver

Support

Multi-languages Support

Support

Software

CrossChex

Hardware

CPU

Dual Core Linux Based 1Ghz CPU with Enhanced AI Computing Power

Cameras

Infrared Light Camera*1, Visible Light Camera*1

Dimensions{W x H x D)

88*190*16 mm (3.465*7.48*0.629 inch)

88*236*16 mm (3.465*9.29*0.629 inch)

Infrared Thermal Temperature Module

Temperature Range: -10~50 °C (14~122 °F)
Detection Distance: 30~100 Cm
Accuracy: ±0.3 °C (0.54 °F)

LCD

5" IPS LED Touch Screen

Camera Angle Range for Verification

74.38°(Visual),67.57°(Infrared)

Identification Distance

< 2m (78.7 inch)

RFID Card

Supported with duel frequency RFID cards, 125KHz EM & 13.56MHz Mifare,DESFire

Humidity

20% to 90%

Operating Temperature

-30 °C (-22 °F)- 60 °C (140 °F)

Operating Voltage

DC12V 3A
