Touching Miracles

Most Reliable Outdoor

What is the M Series?

What is the M Series?

M Series standalone access control devices is suitable for various outdoor environment, with its professional IP65 and IK10 design. M series is integrated with fingerprint and keypad touchable and RFID card, NFC and optional Bluetooth touchless identification ways. M series can be applied into direct and distributed door controlling, wiegand output to third party controller, and also can in integrated with turnstiles, outdoor consumer terminals, etc.

  • Fingerprint Sensor Waterproof, Dustproof

  • Up to 3,000 Fingerprint Capacity

  • Access Control Equipment

  • Card

  • IP65

  • IK10

  • Bluetooth

  • PoE

IP65 professional water proof design

Bluetooth Magic Shake Open

Bluetooth Magic Shake Open

EM,Mifare,NFC Card compatible

IK10 professional vandal proof design

Full Metal casing, anti-UV for long life time

-30 to 60 degree wide range temperature adaptability

Multiple recognition methods

W Series integrates Anviz latest Biometrics Algorithm including Fingerprint and face recognition, which ensures the safe and quick identification and access.

  • RFID

    • Support EM card and Mifare card
    • Support standard CR80 card and RFID keyfobs and tags
    • Support up to 30mm distance opening upon the card type
  • Fingerprint

    • Suitable for both wet and dry fingers
    • Automatically heals the broken lines in fingerprint images
    • Extraction of features in worn fingerprints
    • Fingerprints template auto update
  • Facial

    • Lastest IR technology ensure 24/7 all time recognition
    • 15 images full angles collection ensures accurate recognition
    • Contactless solution for quick and convinient access
Learn more about - Biometrics Algorithm
Free Demo

Product Comparison sheet

English name Outdoor RFID standalone Access
Outdoor fingerprint and RFID standalone Access Control Outdoor fingerprint and RFID standalone reader with keypad

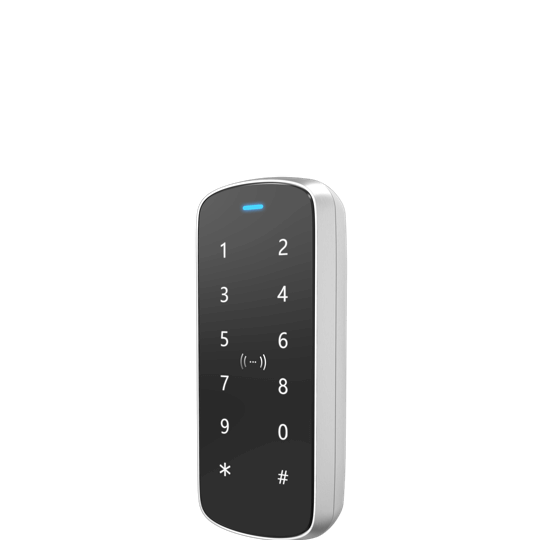

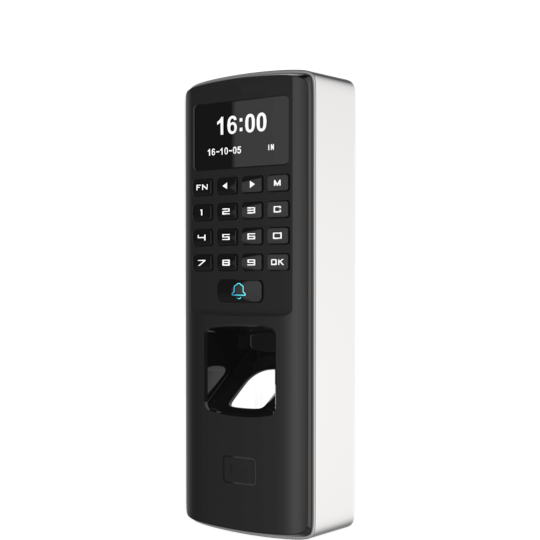

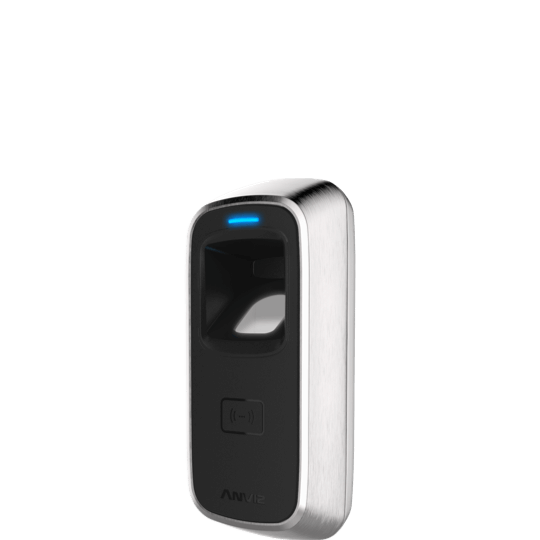

Image miracle seriesMore M3pro miracle seriesMore M5 miracle seriesMore M7
Type M3 Pro M5 Plus M7
User 3,000 3,000 3,000
Finger / 3,000 3,000
Card 3,000 3,000 3,000
Record 200,000 50,000 50,000
Interfaces TCP/IP, RS485, Mini USB TCP/IP, RS485, Mini USB, Wi-Fi, Bluetooth TCP/IP, RS485, Mini USB
POE / / support
Identification mode password,RFID Card Finger, password, card(standard EM), Crosschex E-key APP Finger, password,RFID card
RFID card type Dual Frequency for EM and Mifare Standard EM Standard EM, optional mifare
Sensor / touch active sensor touch active sensor
Scanning Area / 22m*18mm 22m*18mm
LED Indicator support support support
Working Temperature -30℃~60℃ -35°C~60°C -30℃~60℃
Humidity 20% to 90% 20% to 90% 20% to 90%
Power Input DC 12V 1A DC 12V 1A DC 12V 1A
IK Grade IK10 IK10 /
IP grade IP65 IP65 IP65

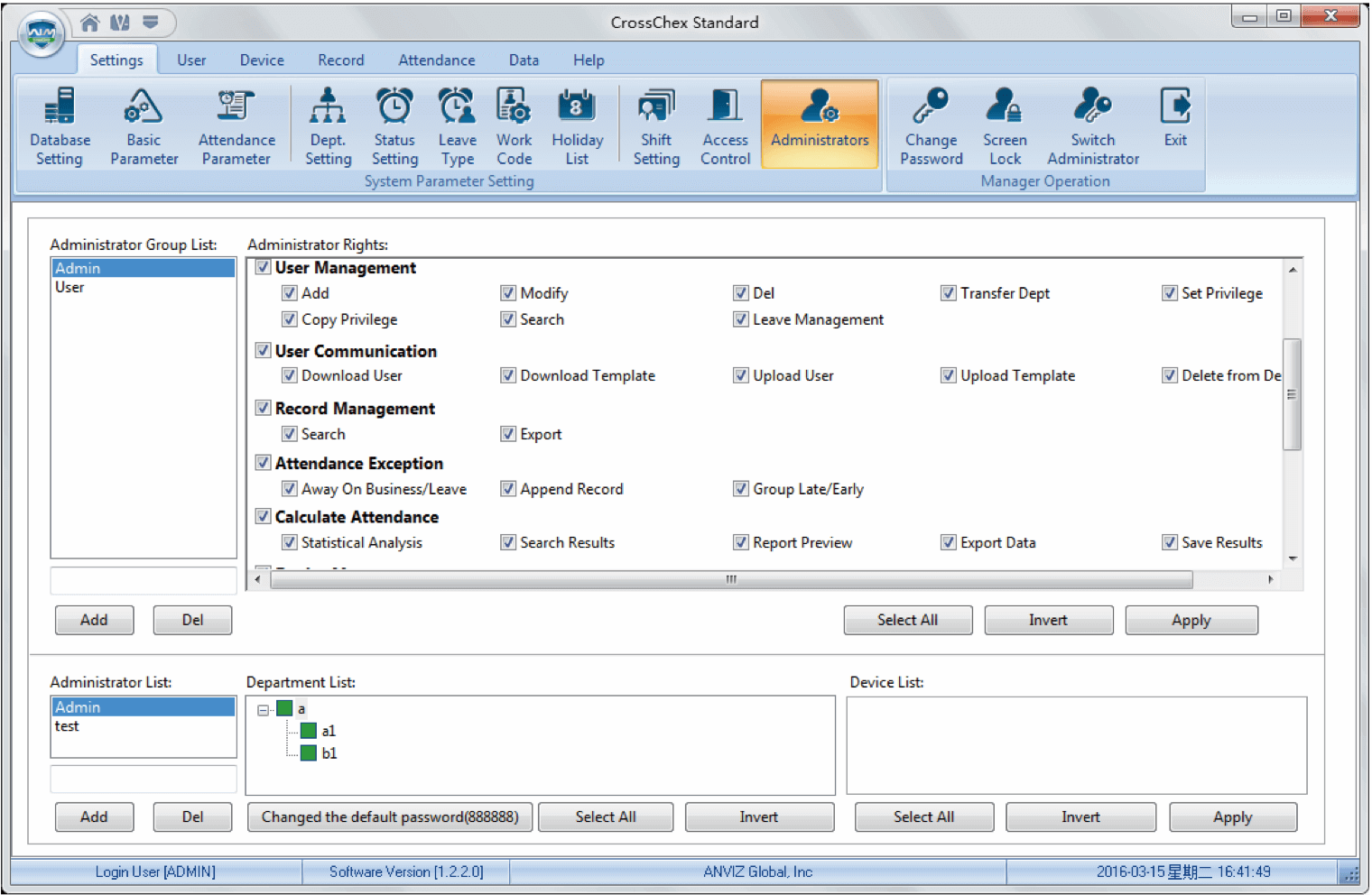

CrossChex Standard

Cloud Web and Mobile Services Access to your office anytime, anywhere.


    Quick registration

    Admin management

    User management

    Export reports

    Access management

    Report management

    Shift & Holidy Management

    Payroll SW Integration

For middle business all in one system

  • Multi-level administrator rights management

  • w33

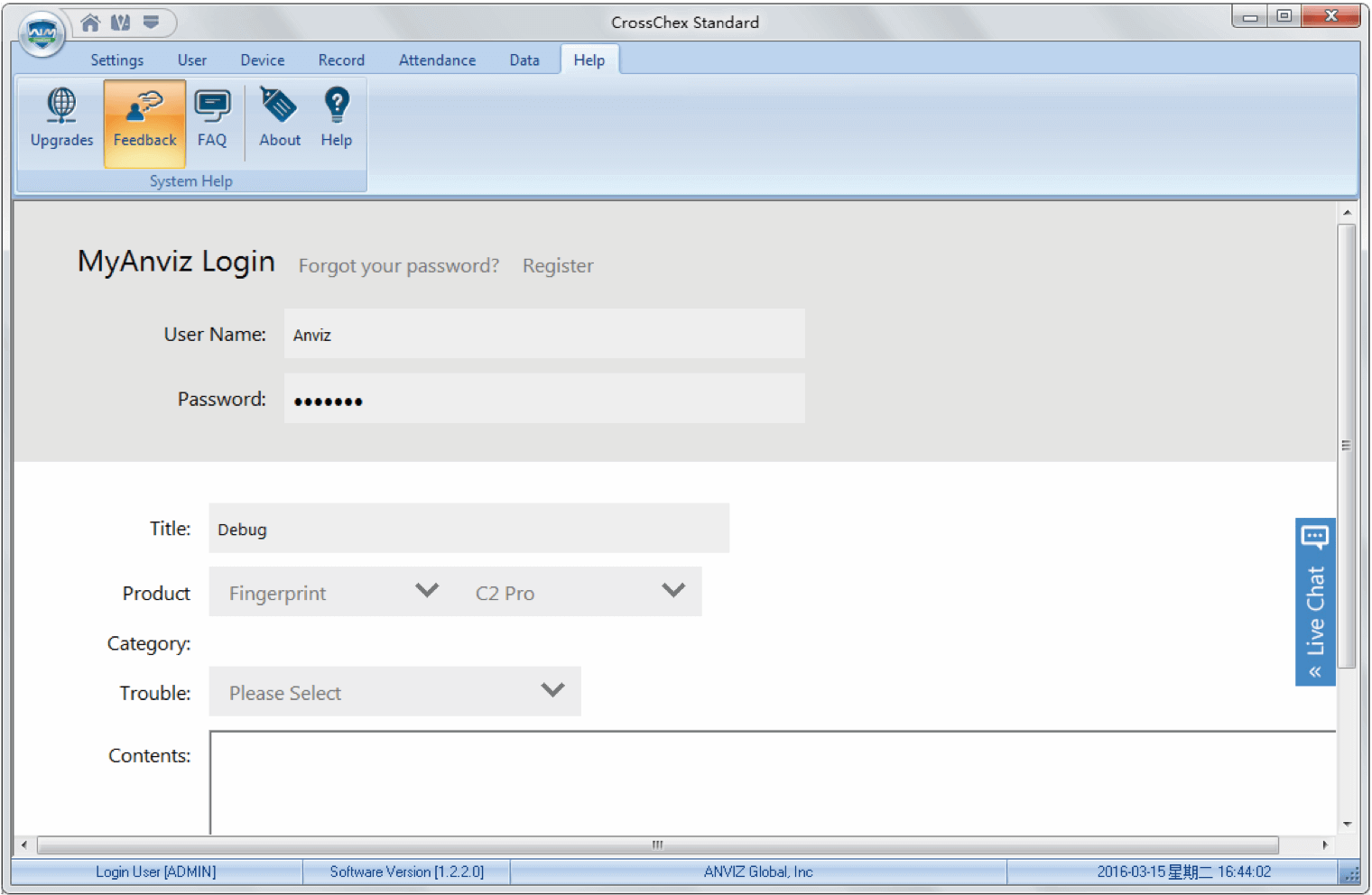

    Online upgrade, technical support and trouble ticket submit.

  • w34

    Support dened reports design

We are always welcome you to be our W series partner. Just choose an starter kit to start the tour and you can get

  • Priority Pricing
  • Quaterly promotion package
  • Anviz where to buy list
  • Leads transfer

What’s in the Starter Kit

  • Product Demo Kit

    Product Demo Kit

  • Marketing Promotion Package

    Marketing Promotion Package

  • Training and Co-Events

    Training and Co-Events
